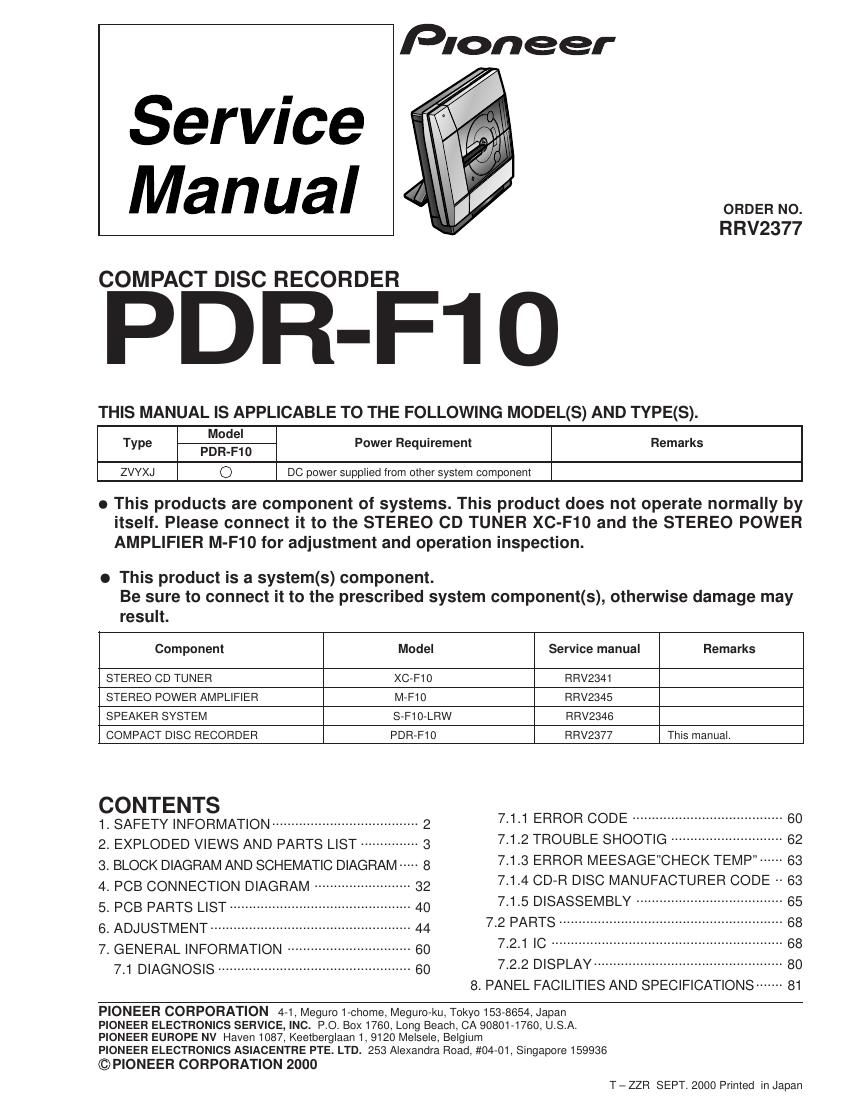

pioneer pdrf 10 service manual

Extracted text from pioneer pdrf 10 service manual (Ocr-read)


Page 1

2 PDR-F10 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. USYNLIG LASERSTRÅLING VED ÅBNING NÅR SIKKERHED SAF- BRYDERE ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING UNSICHTBARE LASER-STRAHLUNG TRITT AUS, WENN DECKEL (ODER KLAPPE) GEÖFFNET IST! NICHT DEM STRAHL AUSSETZEN! VRW1094 ADVARSEL VORSICHT! LABEL CHECK (ZVYXJ) Put on Door Window RA FRONT IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 3b. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER : 23 mW WAVELENGTH : 778-787 nm 1. Laser Interlock Mechanism The position of the switch (S5907) on the CD SW Assy for detecting loading state is detected by the system micro- processor, and the design prevents laser diode oscillation when the switch (S5907) is not on CLOSE terminal side (CDO/C signal is high level.). Thus, the interlock will no longer function if the switch (S5907) is deliberately set to CLOSE terminal side (low level). The interlock also does not function in the test mode *. Laser diode oscillation will continue, if pin 1 of M51593FP (IC101) on the CD-R CORE PCB ASSY mounted on the CD-R PICKUP is connected to GND, or pin 19 is connected to low level (ON), or else the terminals of Q101 are shorted to each other (fault condition). 2. When the DOOR WINDOW is removed, close viewing of the objective lens with the naked eye will cause exposure to a Class 3 laser beam. Additional Laser Caution * Refer to page 44.

Page 2

3 PDR-F10 2.1 PACKING 1 Front Pad VCDR AHA7303 2 Rear Pad M AHA7296 3 Packing Case CDR/ZY AHD7940 4 Operating Instructions ARC7330 (Spanish/Portuguese/Dutch/Swedish) 5 Operating Instructions ARE7271 (English/French/German/Italian) NSP 6 Warranty Card ARY7022 7 Optical Fiber Cable RKX1031 8 Polyethylene Bag Z21-038 (0.03 ´ 230 ´ 340) 9 Mirror Mat Sheet Z23-026 (550 ´ 550 ´ 0.5) 10 Spacer CDR AHB7048 11 Stand A Assy AXG7096 12 Stand B Assy AXG7097 13 Caution PRM1073 Ö PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. 1 10 11 12 2(1/2)2(2/2) 39 5 46 8 13 FRONT 7
