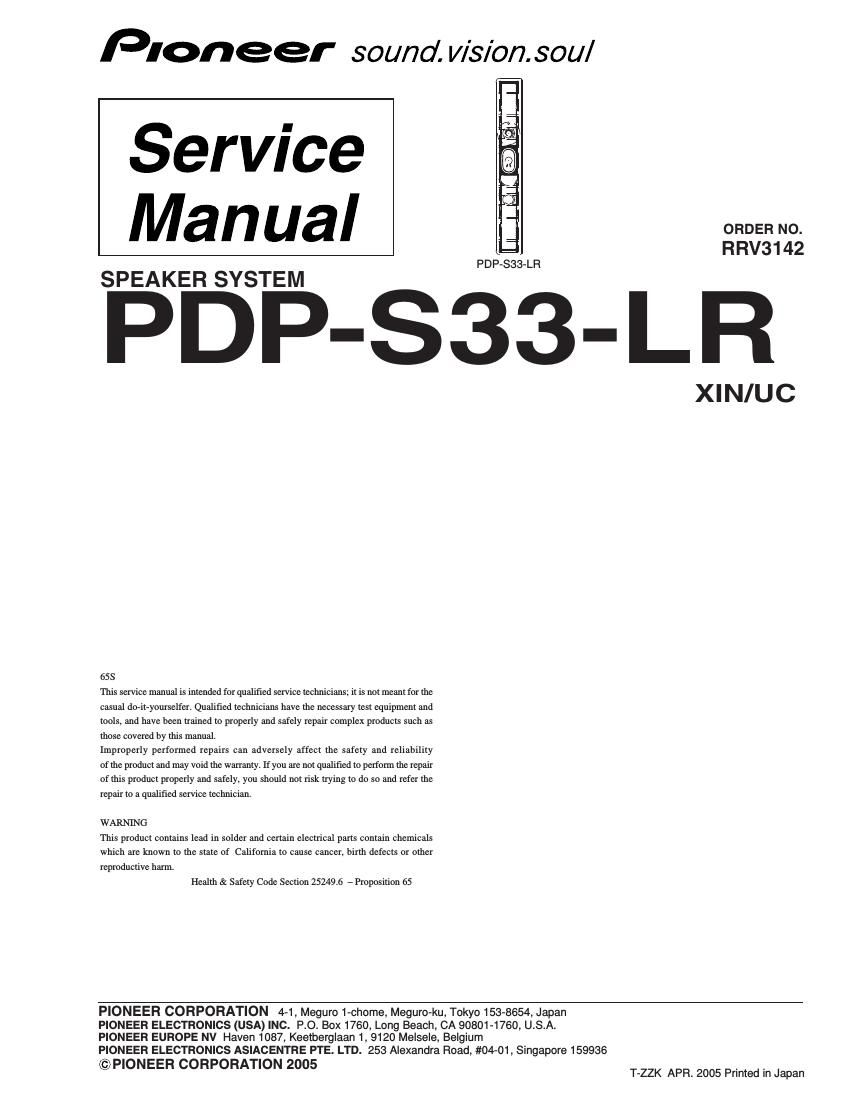

Pioneer pdps 33 lr service manual

Page 1

2 1 23 4 1234 C D F A B E PDP-S33-LR FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the baffle using double-sided self-adhe- sive tape. To avoid damaging the grille, work with the speaker on top of a blanket or similar, face up. There are two slots in the lower part of the speaker. Insert a screwdriver(-) into each slot and push down detach the lower part. Turn the speaker over and insert a screwdriver(-) between the grille and the baffle. Taking care not to damage the baffle, push down on the screwdriver(-) to prize the baffle and grille apart. When reattaching the grille, use double-sided self-adhesive tape in the locations shown in the diagram and press the grille assy into place. The grille is fixed using boss and double-sided self-adhesive tape(The tape is in the locations indicated in the diagram be- low). Do not use a dryer to heat the self-adhesive tape when removing the grille. The woofer is attached to the baffle by external screws. To de- tach it, unfasten those screws. When attaching it, face its termi- nal downward. The tweeter is attached to the baffle by external screws. To de- tach it, unfasten those screws. Slot GRILLE Screwdriver(-) Grille BaffleDown (11) (11) LOCATIONS TO FIX DOUBLE-SIDED SELF-ADHESIVE TAPE Tape (SEH1074 x2)Tape (SEH1063) Tape (SEH1063) Tape (SEH1074 x2)

Page 2

3 1 234 1 23 4 C D F A B E PDP-S33-LR For Packing Mark No. Description Part No. NSP Accessories Set (Flush & Screw,Cord) SME3629 Protector SHB1159 NSP Accessories Set (Flush) SME3626 Spacer SHD1067 Accessory Case SHF1086 Bracket A ASSY (R) SNX1175 NSP Polyethylene Bag S1 KHL1079 NSP Label (R) SAK1014 Gasket SEC1861 Gasket A SEC1935 NSP Bracket A SNA1447 NSP Clear Tape 12mm ZTA-400-12 Bracket A ASSY (L) SNX1176 NSP Polyethylene Bag S1 KHL1079 NSP Label (L) SAK1015 Gasket SEC1861 Gasket A SEC1935 NSP Bracket A SNA1447 NSP Clear Tape 12mm ZTA-400-12 Bracket B ASSY (R) SNX1177 NSP Polyethylene Bag S1 KHL1079 NSP Label (R) SAK1014 Gasket SEC1861 Gasket B SEC1936 NSP Bracket B SNA1448 NSP Clear Tape 12mm ZTA-400-12 Bracket B ASSY (L) SNX1178 NSP Polyethylene Bag S1 KHL1079 NSP Label (L) SAK1015 Gasket SEC1861 Gasket B SEC1936 NSP Bracket B SNA1448 NSP Clear Tape 12mm ZTA-400-12 NSP Danpron Tape ZTA-DANPRON-50CL NSP Accessory Set (Screw & Cord) SME3525 NSP Polyethylene Bag S1 KHL1079 NSP Screws Set SME3510 Screw BMZ50P100FTB NSP Polyethylene Bag S0 KHL1081 NSP MAX No.10-1M ZMX-MAX10-1M Speaker Wire Set SME3526 Speaker Wire SDS1166 NSP Polyethylene Bag S0 KHL1081 NSP MAX No.10-1M ZMX-MAX10-1M NSP MAX No.10-1M ZMX-MAX10-1M NSP Danpron Tape ZTA-DANPRON-50CL NSP Clear Tape 12mm ZTA-400-12 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Baffle L SNK2860 NSP Baffle R SNK2861 NSP Cabinet L SNK2864 NSP Cabinet R SNK2865 Grille ASSY SMG1847 NSP Grille Cloth SAS1571 NSP Grille Frame SMH1105 Network ASSY SWN1736 Capacitor 2.7 SCE1029 NSP Packing SEB1232 NSP Gasket SEC1855 NSP Gasket SEC1856 NSP Gasket SEC1857 NSP Gasket SEC1860 NSP Terminal SFK1034 NSP Terminal SFK1035 Choke Coil 1.1 STH1260 NSP Rosin Core Solderpbf ZSA-5020-1R6 NSP Red-Black Wire ZWWAC3318-20 NSP Red-White Wire ZWWAC3318-29 NSP Blue-White Wire ZWWAC3318-69 Input Terminal KKX1015 NSP Model Label (L) SAN3661 NSP Model Label (R) SAN3662 NSP Insert Nut M5 SBN1056 NSP Gasket (BF: WF-TW, Top, Bottom) SEB1250 NSP Gasket (Input-Side) SEB1255 NSP Gasket (WF: Input) SEB1256 NSP Gasket (TW: Input) SEB1271 NSP Gasket (CAB: Input) SEB1273 Gasket (Input Terminal Back) SEC1724 NSP Gasket (WF: Gasket) SEC1754 NSP Gasket (CAB: Rib Long) SEC1858 NSP Gasket (CAB: Rib Short) SEC1859 NSP Gasket (BF: Side) SEC1863 NSP Gasket (CAB: Long Inside) SEC1931 NSP Gasket (CAB: Short Inside) SEC1932 NSP Gasket (BF: WF Side) SEC1934 NSP Felt (Duct: Inside) SED1112 NSP Felt (CAB: C Term) SED1113 Tape (Grille: Short) SEH1063 Tape (Grille: Long) SEH1074 NSP Paper Tube 26 SMR1380 NSP Port Tube Ring 26 SMR1382 NSP Acoustic Absorbent (Roll : Small) SMT1240 NSP Acoustic Absorbent (TW: Back) SMT1245 NSP Acoustic Absorbent (CAB: Roll) SMT1246 NSP Acoustic Absorbent (CAB: T B) SMT1248 NSP Acoustic Absorbent (CAB: B) SMT1249 NSP Label Serial (Model Label L,R) SRW1083 Speaker A101EC65-54F Speaker FADD55-52F
