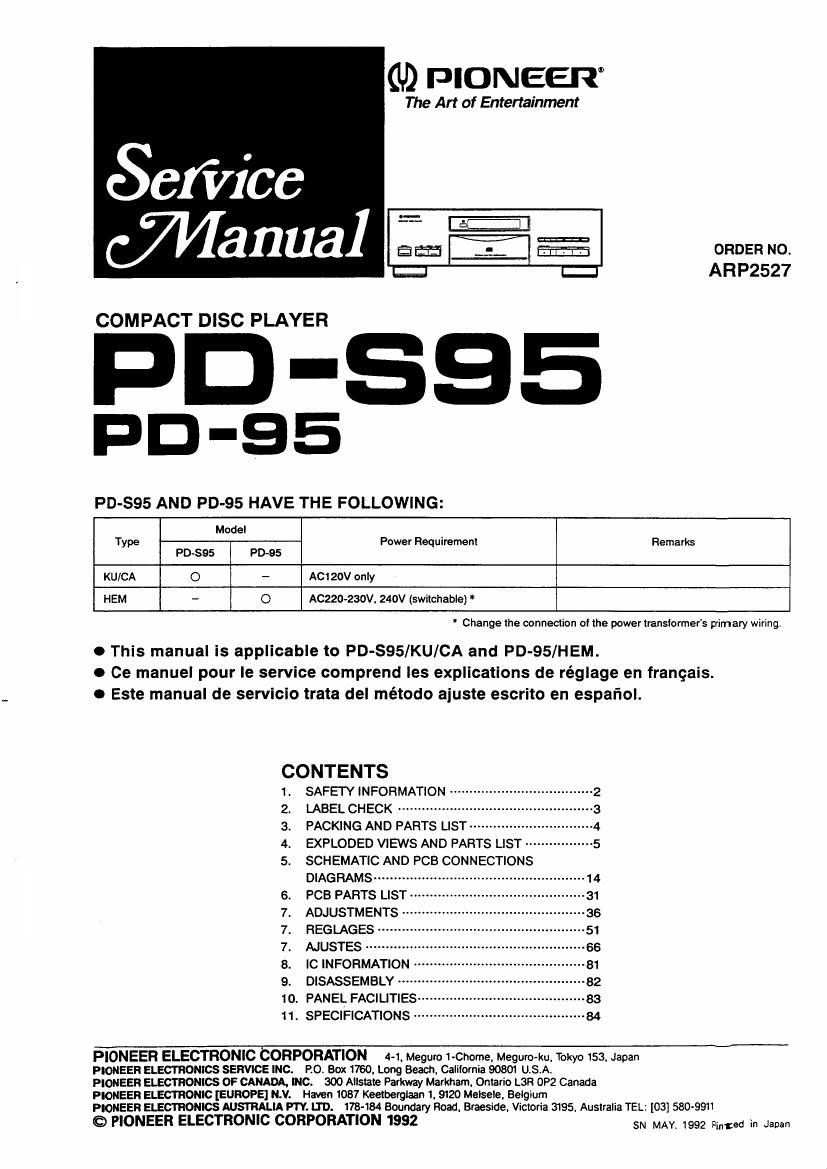

GD PIONEER

The Art of Entertainment

Sefiicc _
anual éég E ORDER No.

LEI I; ARP2527

COMPACT DISC PLAYER

PD-SSE

PD-SE

PD-595 AND PD-95 HAVE THE FOLLOWING:

Model
Type Power Requirement Remarks
PD-SQS PD-95
KUICA O - A01 20V only
HEM - O ACZZO-ZSOV. 240V (switchable) *

' Change the connection of the power transformer's primary Wiring.

0 This manual is applicable to PD-SQS/KU/CA and PD-95/HEM.
0 Ce manuel pour Ie service comprend les explications de réglage en frangais.
O Este manual de servicio trata del método ajuste escrito en esparIoI.

CONTENTS
. SAFEI'Y INFORMATION .................................... 2
LABEL CHECK ....................
PACKING AND PARTS LIST ..
EXPLODED VIEWS AND PARTS LIST
SCHEMATIC AND PCB CONNECTIONS
DIAGRAMS ..................................................... 14
PCB PARTS UST .... ... ... ..
ADJUSTMENTS
REGLAGES .........
AJUSTES ..................
[0 INFORMATION
DISASSEMBLY -
o. PANEL FACIUTIESu
1. SPECIFICATIONS ~~~~~~

,3
-4
5

snesuvd

PPNTHS

PIONEER ELECTRONIC CORPORATION 44. Meguro 1-Chome, Meguro-ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. R0. 30! 1760, Long Beach, California 90301 U.S.A

PIONEER ELECTRONICS OF CANADA. INC. 300 Allslate Parkway Markham. 00113in L33 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven I057 Keetberglmn 1. 9120 Melsele. Belgium

PIONEER ELECTRON AUSTRALIA PTV. IJ'D. 173-184 Boundary Road. Braeside. Victoria 3195. Australia TEL: [03} 580-9911

© PIONEER ELECTRONIC CORPORATION 1992 SN MAY. 1992 mad In Japan

Page 2

PD-895, PD-95

This service manual is intended for qualified service technicians; it is not
meant for the casual do-it-yourselfer. Qualified technicians have the neces-
sary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to
perform the repair of this product properly and safely, you should not risk

trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as
a known reproductive toxicant which may cause birth defects or other reproductive harm

(California Health & Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in
solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale

any smoke or fumes produced.

1 . SAFETY INFORMATION

(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by' connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60H: outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

L Reading should

Leakage not be above
current 0,5mA

tester

Device
under
test

Test all
exposed metal
surfaces

2-wire cord

Also test with

plug reversed Earth
(Using AC adapter ground
plug as required)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PC-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2.PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vole
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this_Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
