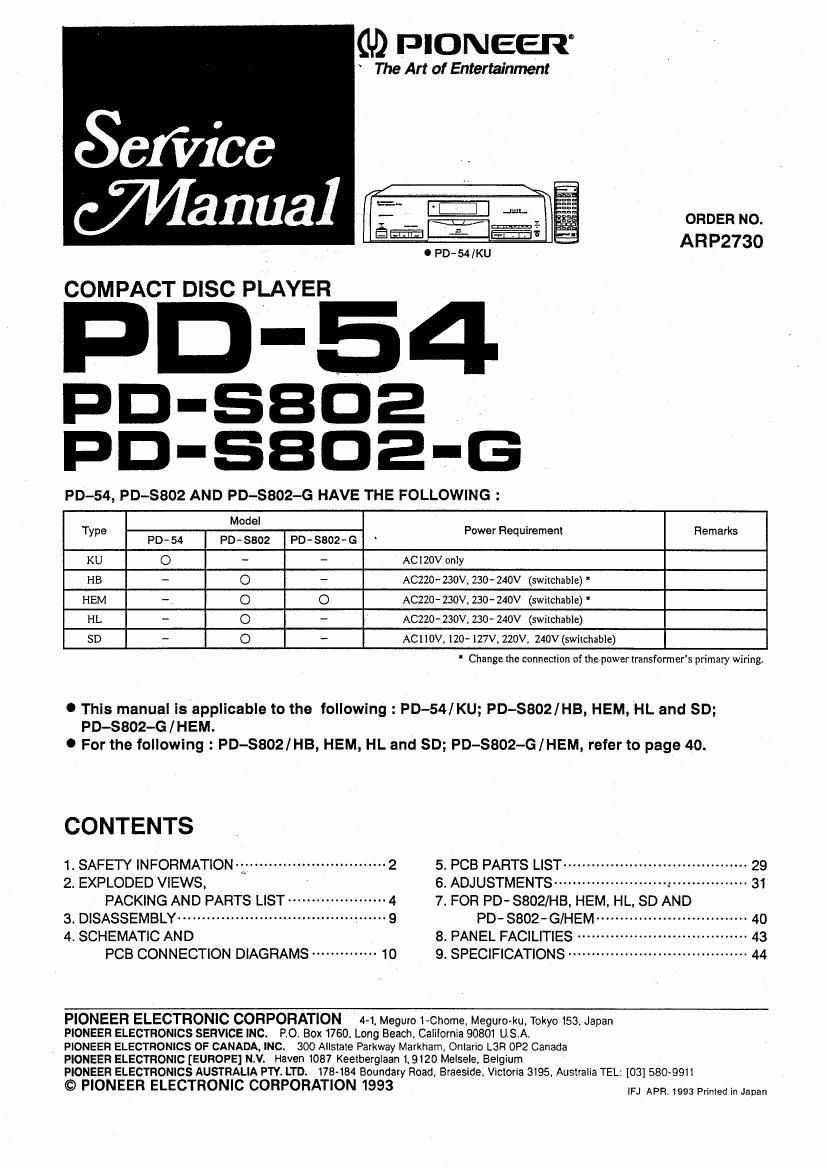

(ID DIONEER

The Art of Entertainment

Sefiice

ORDER NO.
- AR P2730
0 PD- 54/KU
COMPACT DISC PLAYER
P D - S 8 D 2
P D - s a o a - G
PD-54, PD-$802 AND PD-SBOZ-G HAVE THE FOLLOWING :
Model
Type Power Requiremeni Remarks
ID-54 PD~3802 PD-SBOZ-G
KU O - - ACIZOV only
HB - O - Acne-230v, 230-24ov (switchable) .
HEM ~ O AC220-230V. 230-240V (switchable) *
HL - O - ACZZD- 230V, 230 - 240V (switchable)
SD - O - ACIIOV, IZO- l27V, 220V, 240V (switchable)

Change the connection of thgvpower transfomier's primary wiring.

O This manual is applicable to the following : PD-54/KU; PD-SBO2/HB, HEM, HL and SD;
PD-SSOZ-G / HEM.
0 For the following : PD-SaoZ/HB, HEM, HL and SD; PD-S802-G/HEM, refer to page 40.

CONTENTS
1 SAFETY INFORMATION; .............................. 2 5. PCB PARTS LIST ....................................... 2g
2. EXPLODED VIEWS. - 5_ ADJUSTMENTS ........................ x ................ 31
PACKING AND PARTS LIST -------------------- 4 7. FOR PD-SBOZ/HB, HEM, HL. SD AND
3.DISASSEMBLY---~--~--~-~~~~-~---~~~--~---~-. ...... 9 pD_ 3302- G/HEM ................................ 40
4. SCHEMATIC AND 8. PANEL FACILITIES
pca CONNECTION DIAGRAMS .............. 10 9 SPECIFICATIONS ...................................... 44

PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome Meguro-ku, Tokyo i513. Japan
PIONEER ELECTRONICS SERVICE INC. PO Box 1760. Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.Vl Haven 1087 Keeiberglaan 1.9120 Meisele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 178-184 Boundary Road. Braeside, Vicloria 3195. Australia TEL: [03) 580-9911
© PIONEER ELECTRONIC CORPORATION 1993

IFJ APR, 1993 Printed in Japan

Page 2

SAFETY IN FO FIMATION

This service manual is Intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

improperly performed repa'lrs'can adverselyaffect the safety and reliability of theproduct andifiaywd
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should

1.

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product la listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health 8: Safety Code. Section 2524i5).
When servicing or handling circuit boards and other component: which contain lead in colder. avoid unprotected skin contact with
the solder. Also. when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols JEE- (fast operating fuse) and/or E- (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible JEE- (fuslbie de type rapide) ei/ou a (fusible de type lent) sur CCI indiquent que les

pieces de remplacement dolvent avoir la meme designation.
