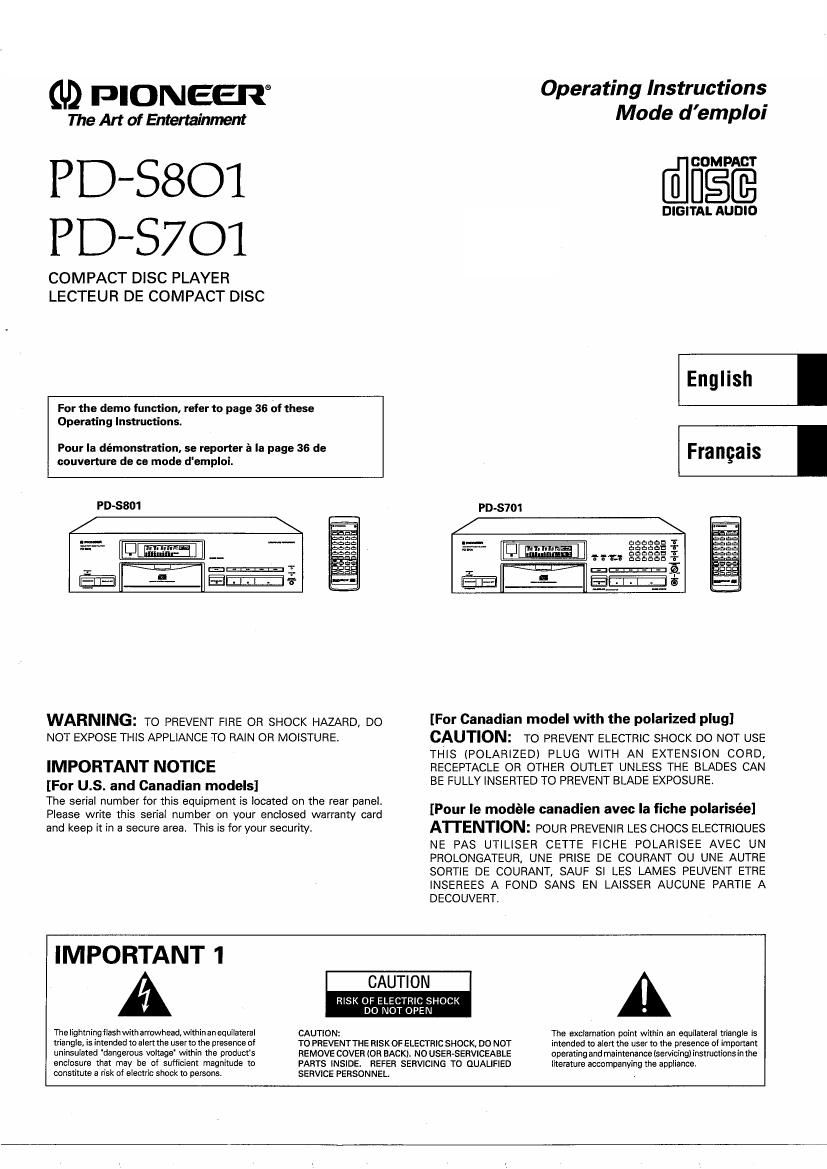

Page 1

GD PIONEER

ID-580]
ID-S701

COMPACT DISC PLAYER
LECTEUR DE COMPACT DISC

For the demo function, refer to page 36 of these
Operating lnstruciions.

Pour la demonstration, se reporter a la page 36 de
couvarture de ce mode d'emploi.

ID-$801

in;_____ T

' fiIFIT

g -I III

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, Do
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

IMPORTANT NOTICE

[For us. and Canadian models]

The serial number for this equipment is located on the rear paneL
Please write this serial number on your enclosed warranty card
and keep it in a secure area, This is for your security.

Operating Instructions
Mode demploi

COMPABI'

tinge

DIGITAL AUDIO

EngHsh

Frangais

PD-S701

[For Canadian model with the polarized plug]

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE
THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE

[Pour le modéle canadien avec la fiche polarisée]

ATTENTION: POUR PREVENIR LES CHOCS ELECTRIOUES
NE PAS UTILISEFl CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTFlE
SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE
INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.

IMPORTANT 1

The lightning flash witharrowhead, withinan equilateral
triangle. is intended to alert the userto the presence of
unlnsulated 'dangerous voltage' within the product's
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENTTHE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK). N0 USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

The exclamation point within an equilateral triangle is
intended to alert the User to the presence of important
operating and maintenance (servicing) instnlctions in the
literature accompanying the appliance.

Page 2

IMPORTANT 2

If the apparatus is fitted with AC mains power outlet(s),
see REAR PANEL FACILITI ES ioroonvenienr connection
of additional Hi-Fi components). Make all connections
to the AC outletls) and the signal terminals first. Connect
the plug to the wall socket last (make sure that me
power switch is off.)

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in
accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured making
identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or col-
oured black.

The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
red.

Do not connect eitherwire iotheeanh terminal oiathree
pin plug.

Equipment sold in the U.K. is not supplied with a
power plug.

[FOR EUROPEAN AND U.K. MODELS]

CAUTION

This product contains a laser diode of higher class
than 1. To ensure continued safety, do not remove
any covers or attempt to gain access to the inside
of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your player.

Location: rear of the player

CLASS I

LASER PRODUCT

VRW-3 28

[For Canadian model]

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of Communications.

"This product complies with the Radio Interference require-
ments of the EC (European Community) Directive 87/308/EEC.

THE POWER SWITCH IS SECONDARY CONNECTED AND
THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION

Thank you for buying this Pioneer product,

Please read through these operating instructions so you will know
how to operate your model properly. After you have finished
reading the instructions. put them away in a safe place for future
reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings, However, the method of connecting and
operating the unit is the same.

2

En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging
the cord and never touch the power cord when your hands are wet
as this could cause a short circuit or electric shock. Do not place the
unit, a piece of furniture, etc, on the power cord. or pinch the cord.
Never make a knot in the cord or tie it with other cards. The power
cords should be routed such that they are not likely to he stepped on.
A damaged power cord can cause fire or give you an electrical shock.
Check the power cord once in a while. When you find it damaged, ask
your nearest PIONEER authorized service center or your dealer for a
replacement.
