Pioneer pdf 958 service manual

This is the 11 pages manual for pioneer pdf 958 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 11
left right
pioneer pdf 958 service manual

Extracted text from pioneer pdf 958 service manual (Ocr-read)


Page 1

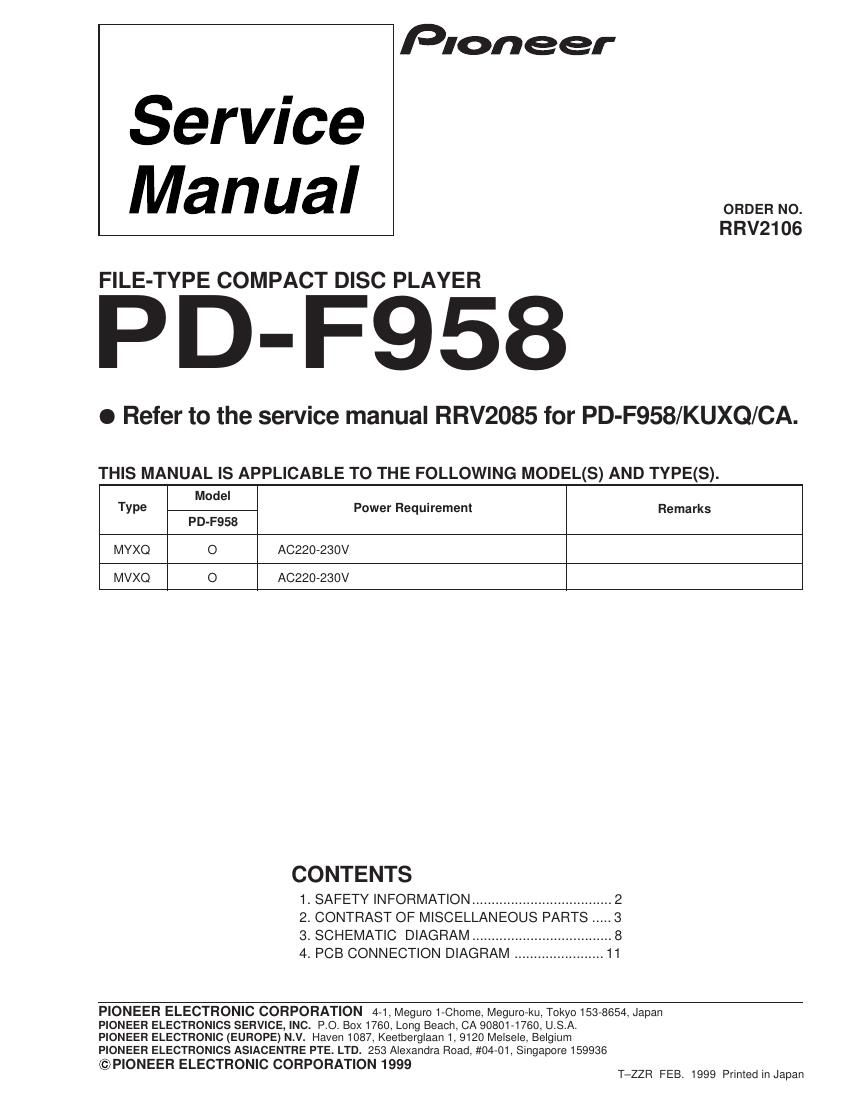

PD-F958 2 REAR PD-F958/MVXQ onlyPD-F958/MYXQ only LABEL CHECK for (PD-F958/MYXQ and PD-F958/MVXQ types) This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 7 mw WAVELENGTH: 780 Ð 785 nm IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. Additional Laser Caution 1. Laser Interlock Mechanism The position of the switch (S651) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S651) is not on CLMP terminal side (CLMP signal is OFF or high level). Thus, the interlock will no longer function if the switch (S651) is deliberatery set to CLMP terminal side. (low level) The interlock also does not function in the test mode *. Laser diode oscillation will continue, if pin 33 of CXA1782CQ (IC151) on the MOTHER BOARD ASSY is connected to GND, or pin 22 of IC301 (LDON) is connected to low level (ON), or else the terminals of Q151 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. * : Refer to page 29. on the service manual RRV2085.

Page 2

PD-F958 3 P6-1 MAIN BOARD ASSY PWZ3895 PWZ3896 PWZ3897 P6-2 POWER BOARD ASSY PWZ3900 PWZ3901 PWZ3901 P6-3 DISPLAY BOARD ASSY PWZ3904 PWZ3905 PWZ3905 P6-4 NSP SWITCH BOARD ASSY PWZ3907 PWZ3908 PWZ3908 NSP HEADPHONE BOARD ASSY Not used PWZ3910 PWZ3910 No.1 P6-10 Cord Stopper CM-22C CM-22B CM-22B P6-12 AC Power Cord PDG1064 PDG1003 PDG1055 Fuse(T5A) (For AC power cord) Not used Not used PEK1003 No.2 P6-14 Foot Assy REC1263 Not used Not used P6-18 Rear Base PNA2452 PNA2453 PNA2454 P6-47 Display Window PAM1772 PAM1773 PAM1773 P6-50 Operation Panel PNW2869 PNW2870 PNW2870 Headphone Knob Not used PAC1707 PAC1707 No.3 LED Lens Not used PNW2019 PNW2019 No.4 P6-55 65 Label ORW1069 Not used Not used Caution Label (HE) Not used PRW1233 Not used No.5 Caution Label Not used VRW1094 Not used No.6 Caution Label Not used Not used PRW1018 No.7 NSP Sheet Not used PEC1038 PEC1038 No.8 PACKING P3-5 NSP Warranty Card ARY7023 ARY7022 ARY7022 P3-7 Operating Instructions Not used PRD1036 Not used (French/German/Italian/ Dutch/Swedish/Spanish/Portuguese) P3-11 Packing Case PHG2337 PHG2338 PHG2339 Rear Spacer Not used Not used PHC1090 No.9 Index Label 100 Not used PRW1406 PRW1406 No.10 Jacket File Not used PHN1049 PHN1049 No.11 Polyethlene Bag (115X270X0.03) Not used Not used Z21-013 No.12 2. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F 7 CONTRAST OF PD-F958/KUXQ/CA, MYXQ and MVXQ PD-F958/ MYXQ, MVXQ and KUXQ/CA are constructed the same except for the following: Note : Ö The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS". EXTERIOR Part No. Remarks KUXQ/CA type MYXQ type MVXQ type Ref. No.MarkSymbol and Description
