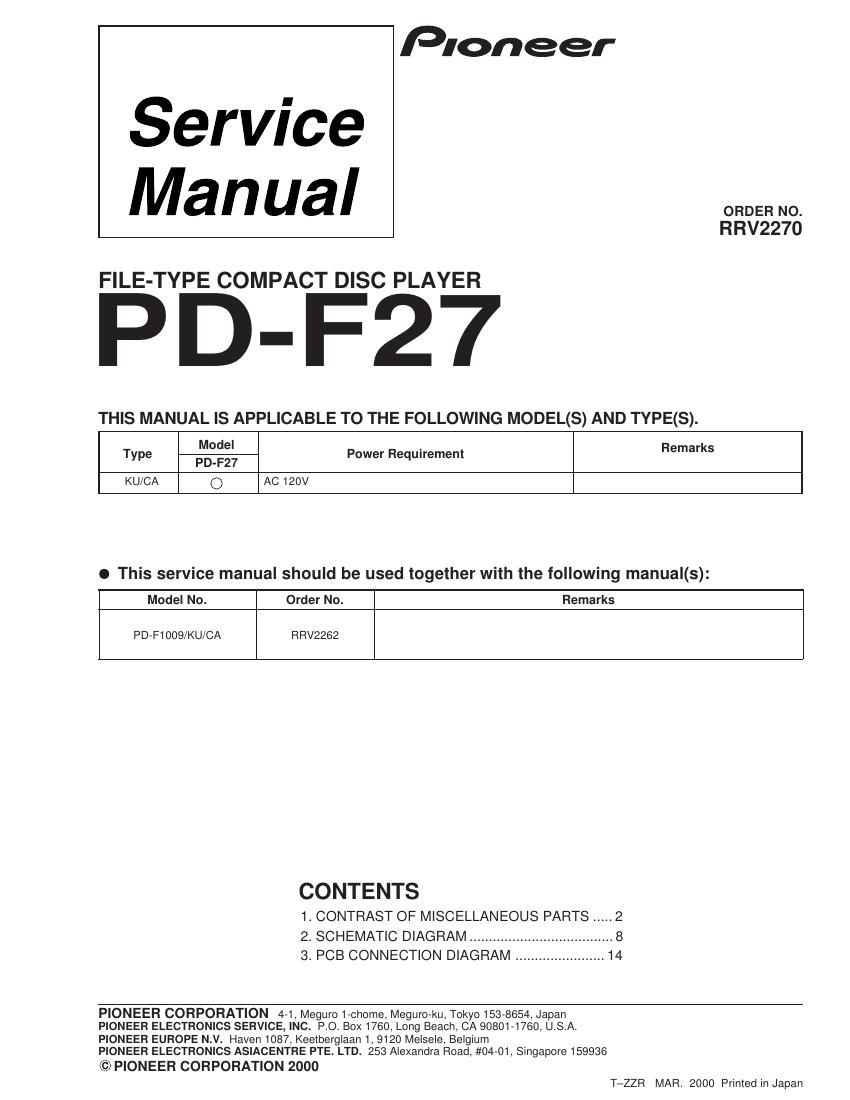

Service
Manual
Pioneer
ORDER NO.
RRV2270
FILE-TYPE COMPACT DISC PLAYER
PD-F27
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
PD-F27
Type Power Requirement
Remarks
KU/CA 0 AC 120V
o This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
PD-F1009/KU/CA RRV2262
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ..... 2
2. SCHEMATIC DIAGRAM ........................... 8
3. PCB CONNECTION DIAGRAM .......... 14
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. FLO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
© PIONEER CORPORATION 2000
T-ZZR MAR. 2000 Primed in Japan
PD-F27
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES .'
0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex. 1 When there are 2 effective digits ( any digit apartfrom 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J = 5%, andK =10%).
5609*56X10->561 ................................................... RDl/4PU-@
47kQ->47><103->473 RBI/4PUE
0.5Q->R50 ................. RN2H®-@K
IQ->1R0 ...... RS1Pm®@K
Ex. 2 When there are _ flective dig such a 11 high prec ion meta/film resistors).
5.62kQ->562><10->5621 ........................................... RN1/4PC- .mF
l CONTRAST TABLE
PD-F27/KU/CA and PD-F1009/KU/CA are constructed the same except for the following:
Part No.
II? Mark Symbol and Description PD-F1009 PD-F27 Remarks
lKU/CA /KU/CA
PCB ASSEMBLIES
A NSP MOTHER BOARD ASSY PWM2294 PWM2260
P7- 1 MAIN BOARD ASSY PWZ4036 PW23833
KEY BOARD ASSY Not used F'WZ3838 No.1
SR BOARD ASSY PWZ4042 Not used
P7- 2 POWER BOARD ASSY PWZ404B Not used
P7-27 NSP DOOR MOTOR BOARD ASSY PWZ4061 Not used
P7-28 NSP DOOR SW BOARD ASSY PWZ4062 Not used
P9- 7 NSP VOLUME BOARD ASSY PWZ4063 Not used
P13-1 DISPLAY BOARD ASSY PWZ4053 Not used
P13-2 CONTROL BOARD ASSY PWZ4057 Not used
A NSP SUB BOARD ASSY Not used PWX1586
P7- 2 A POWER BOARD ASSY Not used PWZSBSS
P7-27 NSP DOOR MOTOR BOARD ASSY Not used PWZ3863
P7-28 NSP DOOR SW BOARD ASSY Not used PWZ3865
P9- 7 NSP VOLUME BOARD ASSY Not used PWZ3864
P13-1 DISPLAY BOARD ASSY Not used PW23844
P13-2 CONTROL BOARD ASSY Not used PW23849
NSP HEADPHONE BOARD ASSY Not used PWZ3861 No.2
NSP LED BOARD ASSY Not used PWZ3867 No.3
PACKING
P5- 3 Packing Case PHG2397 PHG2413
P5- 6 Operating |nstructions(English) PRB1300 PFtB1304
P5- 7 Remote Control Unit PWW1168 PWW1139
P5-12 NSP Warranty Card ARY7045 ARY1026
NSP Side Panel Sheet Not used AMFt7284 No.4
EXTERIOR
P7- 9 Rear Base PNA2529 PNA2546
P7-15 CR Spacer PNW2961 Not used
P7-17 Hood PNW2793 PNW2872
Insulator AMR7198 PNW2766 No.5
CR Lens Not used PNW2816 No.6
