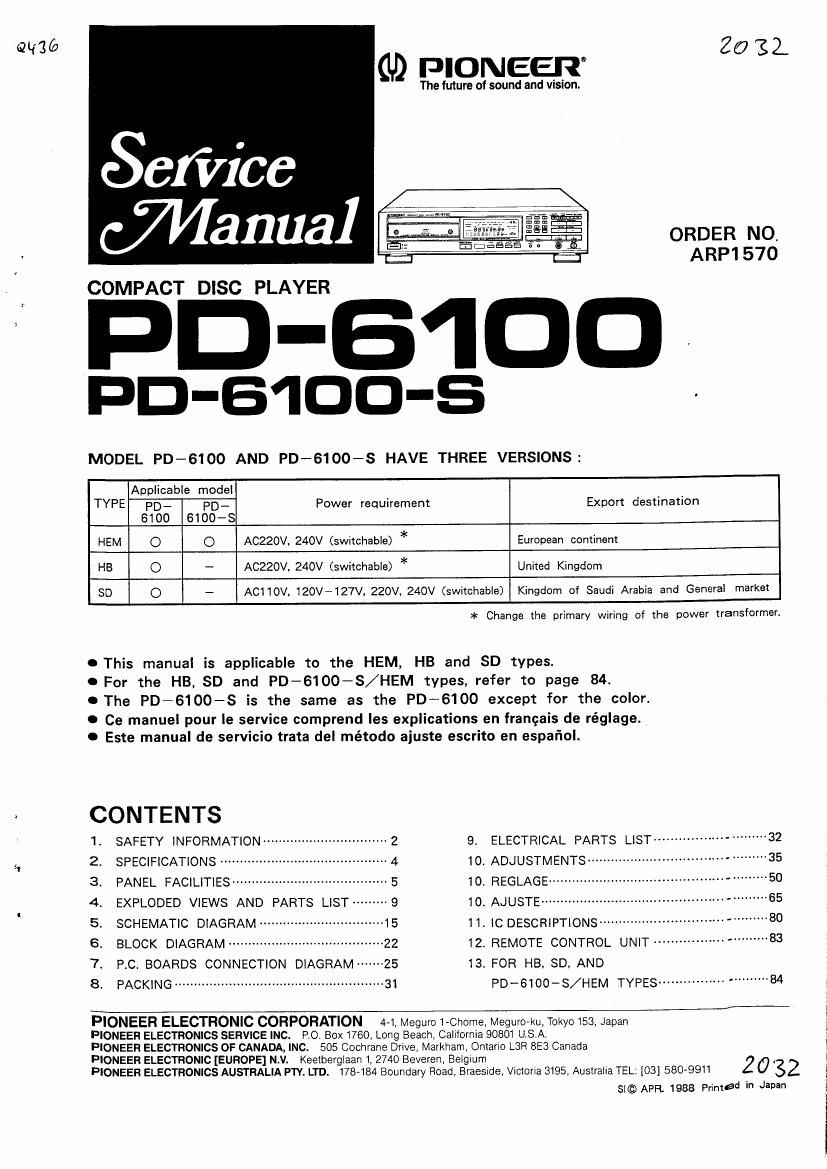

Page 1

aqzé

2031
PIONEER

The future of sound and vision.

ORDER NO
ARP157O
COMPACT DISC PLAYER
PD-EIDD-S
MODEL ID-6100 AND PD~6100-$ HAVE THREE VERSIONS:
Applicable model
TYPE [30. PD- Power requirement Export destination
6100 6100-8
HEM O O AC220V. 240V (switchable) * European continent
HB O - AC22OV. 240V (switchable) * United Kingdom
SD O - ACIIOV. 120V-127V. 220V. 240V (switchable) Kingdom of Saudi Arabia and General market

* Change the primary wiring of he power transformer.

OThis manual is applicable to the HEM, HB and SD types.
OFor the HB, SD and PD-6100~S/HEM types, refer to page 84.
O The PD-6100-S is the same as the PD-6100 except for the color.

0 Ce manuel pour la service comprend Ies explications en frangais de réglage.
O Este manual de servicio trata del método aiuste escrito en espafiol.

CONTENTS

I. SAFETY INFORMATION -------------------------------- 2 9. ELECTRICAL PARTS LIST """""""""""""""" 32
2. SPECIFICATIONS ........................................... 4 10' ADJUSTMENTS..

3. PANEL FACILITIES ----------------------- '5 10. REGLAGE-

4. EXPLODED VIEWS AND PARTS LIST --------- 9 10. AJUSTE -----------

5. SCHEMATIC DIAGRAM ----------------------------- 15 11. IC DESCRIPTIONS """"""""""

6. BLOCK DIAGRAM ------------------------------------- 22 12. REMOTE CONTROL UNIT -*

7. P.C. BOARDS CONNECTION DIAGRAM ------ 25 13. FOR HB. SD, AND

8_ PACKING ...................................................... 31 pDE5100_S/HEM TYPES .......................... 84

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, MeguroAku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760, Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA INC. 505 Cochrane Drive, Markham Omano LBR 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N. V. Keetberglaan 1 2740 Beveren Belgium

PIONEER ELECTRONICS AUSTRALIA PTY LTD. 178-184 Boundary Road BraeSide Victoria 3195 Australia TEL: [03] 580 9911 20 32

SI© APR. 1988 Printed in Japan

i
I

Page 2

PD-SIDD

1. SAFETY INFORMATION

1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service tech-
niciant
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage current
tester such as Simpson Model 229-2 or equivalent between
the earth ground and all exposed metal parts of the appli-
ance (input/output terminals, screwheads, metal overlays.
control shaft, etc.). Plug the AC line cord of the appliance
directly into a 120V AC 60H: outlet and turn the AC
power switch on. Any current measured must not exceed

0.5mA.
Reading should
Leniage not be above
Device current 0.5mA
and" tester
test
Test all
exposed metal
surfaces
Zwire cord

@ Also test with
plug reversed Y
(Using AC adapter ground
plug as required)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A P0-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are often
not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety characA
teristics are identified in this Service Manual.

Electrical components having such features are identified

by marking with a A on the schematics and on the parts
list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEE R
Service Manual may be obtained at a nominal charge from
PIONEER.

'(FOR EUROPEAN MODEL ONLY)

rVAROITUSIW
LAITE SISALTAA LASERDIODIN, JOKA
LAHETTAA NAKYMATONTA, SILMILLE
VAARALLISTA INFRAPUNASATEILYA
LAlTTEEN SISALLA 0N LASERDIODIN
LAHEISYYDESSA KUVAN I. MUKAINEN
VAROITUSMERKKL

LASER

Kuva I
Lasersateilyn
veroitusmerkki

ADVERSEL: ---¥
USVNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFBRYDERE ER UDE
AF FUNKTION UNDGA UDSAETTELSE
FOR STRALING.

VlKTlGT-
APARATEN INNEHALLER LASER AV HOGRE
KLASS AN 1. INGREPP I APPARATEN EOR
GORAS AV SPECIELLT UTBILDAD PERSONAL.

WARNINGl-A-i ~~~~~ A
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIA»
_TION WHICH Is DANGEROUS TO EYES,
ITHERE lSAWARNlNG SIGN ACCORDING LAsER
lTO PICTURE 1 INSIDE THE DEVICE New,
CLOSE TO THELASER DIODE.

_ Warning sign for
laser radieriofl

IMPORTANT
PIONEER COMPACT DISC PLAYER APPARA
TUS CONTAINS LASER OF HIGHER CLASS
THAN 1 SERVICING OPERATION OF THE AP-
PARATUS SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON,
