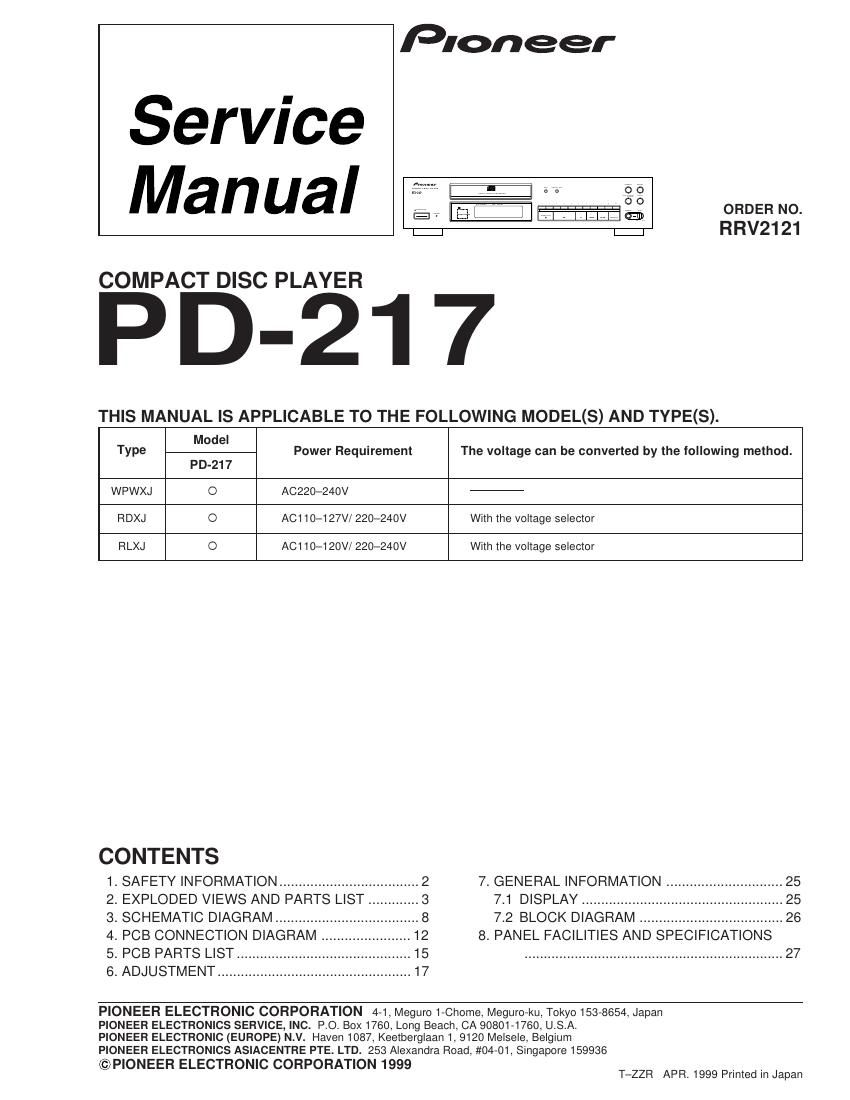

Pioneer pd 217 service manual

Page 1

PD-217 2 1. Laser Interlock Mechanism The position of the switch (S601) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S601) is not on CLMP terminal side (CLMP signal is OFF or high level.). Thus, the interlock will no longer function if the switch (S601) is deliberately set to CLMP terminal side (low level). The interlock also does not function in the test mode *. Laser diode oscillation will continue, if pin 33 of CXA1782CQ (IC151) on the MAIN BOARD ASSY is connected to GND, or pin 22 of IC301(LDON) is connected to low level (ON), or else the terminals of Q151 are shorted to each other (fault condition). 2. When the cover is opened with the servo mechanism block removed and turned over, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mw WAVELENGTH: 780 Ð 785 nm * Refer to page18. LABEL CHECK Additional Laser Caution 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WPWXJ and RLXJ types REAR

Page 2

PD-217 3 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING (1) PACKING PARTS LIST NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. Mark No. Description Part No. 1 Styrol Protector R PHA1289 2 Styrol Protector L PHA1290 3 Packing Case PHG2370 4 Packing Sheet Z23Ð007 (750 ´ 600 ´ 0.5) 5 Output Cable (L=1.0m) PDE1248 6 Operating Instructions See Contrast table (2) 7 Polyethylene Bag Z21Ð038 (340 ´ 230 ´ 0.03) 8 Caution 220V Label See Contrast table (2) 9 Remote Control Unit PWW1158 (CUÐPD112) 10 Battery Cover AZA7148 NSP 11 Dry Cell Batteries(AA/R6P) VEMÐ013 (2) CONTRAST TABLE PD-217/WPWXJ, RDXJ and RLXJ are constructed the same except for the following: Part No. Remarks Mark WPWXJ type RDXJ type RLXJ type 6 Operating InstructionsNot used PRE1280 PRE1280 No. Symbol and Description (English/Spanish/Chinese) 6 Operating Instructions (English)PRB1287 NotusedNot used 8 CAUTION 220V LABELNot usedARR1003 ARR1003
