Page 1

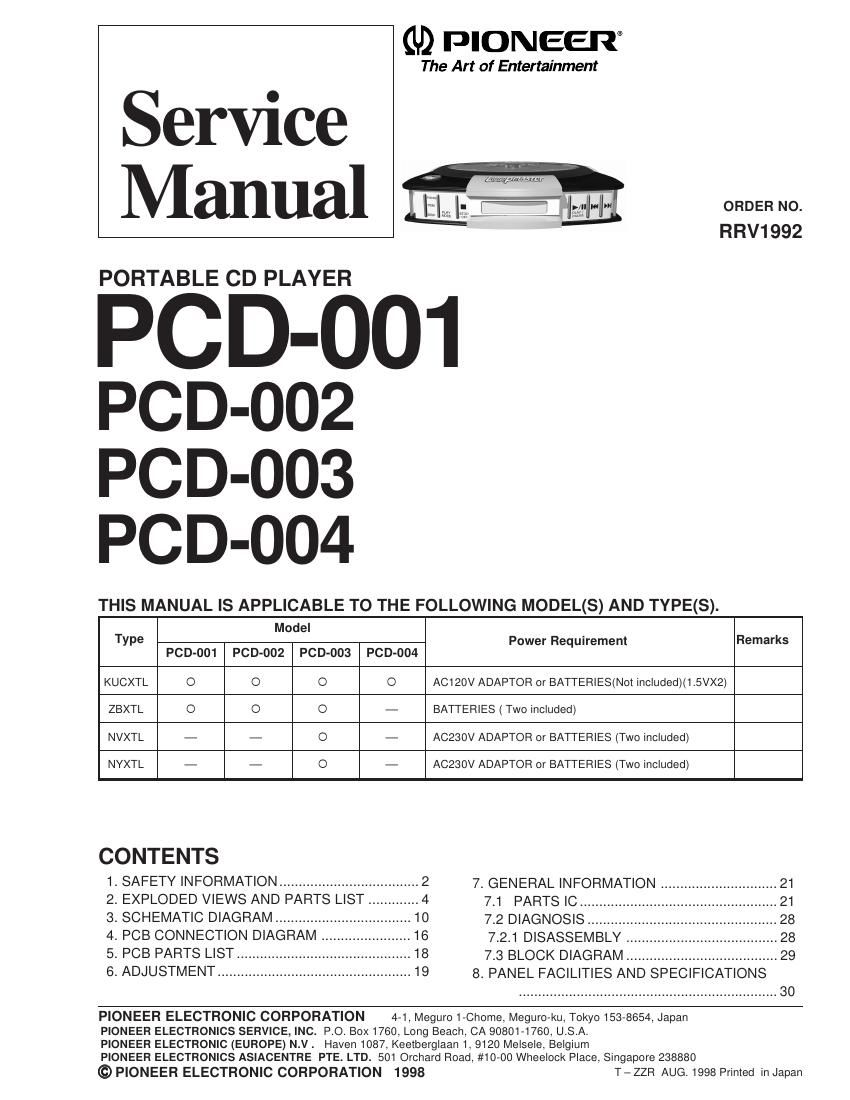

PCD-001,PCD-002,PCD-003,PCD-004
2
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 Ð Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODéLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pices de remplacement doivent avoir la mme dŽsignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a
on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
testLeakage
current
tester
Earth
ground Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)Test all
exposed metal
surfaces
AC Leakage Test
Page 2
PCD-001,PCD-002,PCD-003,PCD-004
3
1. Laser Interlock Mechanism
The position of the switch (SW102) for
detecting the loading state is detected by the
system microprocessor, and the design
prevents laser diode oscillation except when
both switch (SW102) is not on CLMP terminal
side (CLMP signal is OFF or high level.).
Thus, interlock will no longer function if switch
(SW102) is deliberatery shorted (low level).
The interlock also does not function in the test
mode
*.
Laser diode oscillation will continue, if pin 36
of CXA1992A (IC102) on the CD AMP UNIT
is connected to GND, or else the terminals of
Q107 are shorted to each other(fault condition).
2. When the case is opened, close viewing of the
objective lens with the naked eye will cause
exposure to a Class 1 laser beam.
Additional Laser Caution
* Refer to page 19.
1.2 SAFETY INFORMATION
IMPORTANT
THIS PIONNER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 5 mw
WAVELENGTH : 780-785 nm
CD AMP UNIT
BATTERY
Laser P.U. Inside
SW
SW102
(DOOR Detect
SWITCH)
*
LABEL CHECK
Bottom
BT CAUTION FDA LABEL KUCXTL type Only
NYXTL and NVXTL
types FCC/FDA/DOC LABEL
KUCXTL type Only
COMPLIES WITH FDA RADIATION PERFORMANCESTANDARDS,21 CER SUBCHAPTER J.
MANUFACTURED ADT
H. P. SOUND LABEL
NYXTL type Only
WARNING LABEL
LABEL
