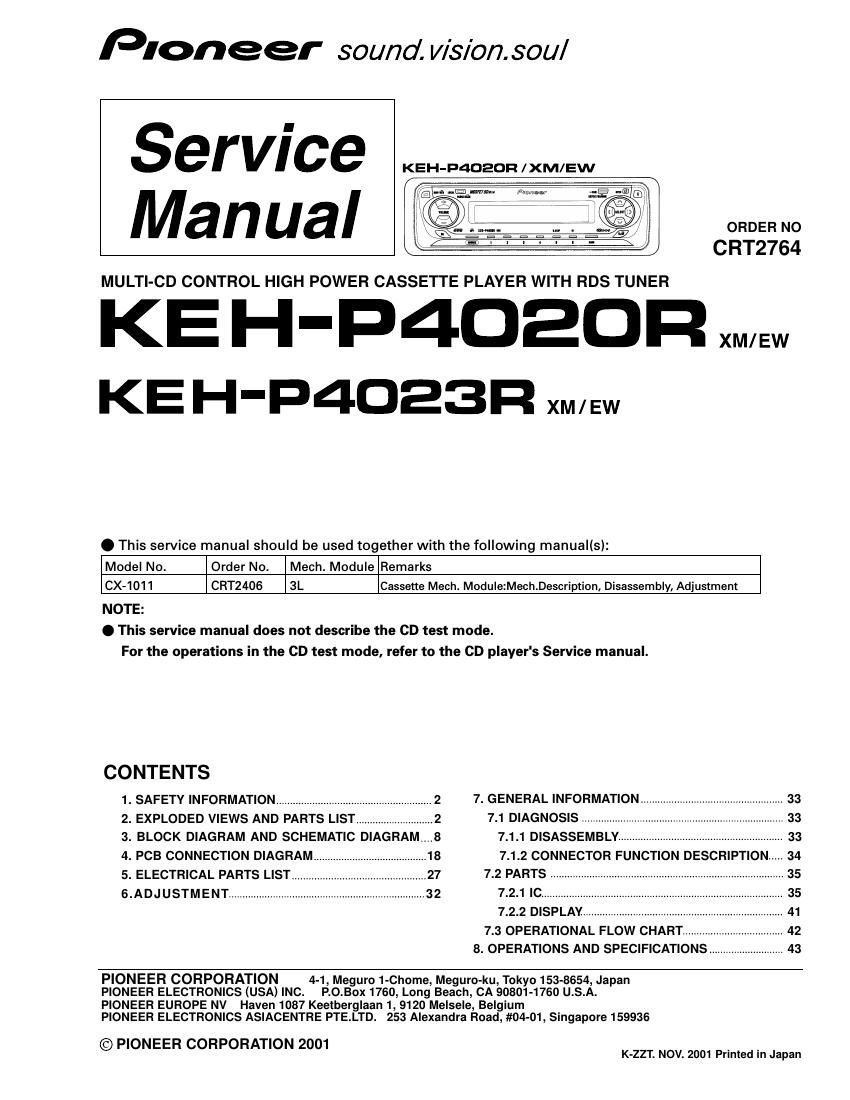

Page 1
2
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
Page 2
NOTE
- Parts marked by * are generally unavailable because they are not in our Master Spare Parts List.
3
Mark No. Description Part No. Mark No. Description Part No.
1 Carton CZH5587
2 Owner's Manual CZR2950
3 Installation Manual CZR2952
* 4 Warranty Card CRY1157
* 5 Passport CRY1013
6 Case Assy CXB3520
7 Cord Assy CZD2977
8 Protector CZH5591
9 Protector CZH5592
10 Polyethylene Bag CZE290311 Owner's Manual CZR2951
12 Accessory Assy CEA3062
13 Bush CNV3930
14 Screw CBA1002
15 Handle CNC5395
16 Holder CNC9450
17 Screw BPZ20P060FZK
* 18 Polyethylene Bag E36-615
19 Contain Box CZH5588
KEH-P4023R/XM/EW
Mark No. Description Part No. Mark No. Description Part No.
1 Carton CZH5589
2 Owner's Manual CZR2950
3 Installation Manual CZR2952
* 4 Warranty Card CRY1157
* 5 Passport CRY1013
6 Case Assy CXB3520
7 Cord Assy CZD2977
8 Protector CZH5591
9 Protector CZH5592
10 Polyethylene Bag CZE290311 Owner's Manual CZR2951
12 Accessory Assy CEA3062
13 Bush CNV3930
14 Screw CBA1002
15 Handle CNC5395
16 Holder CNC9450
17 Screw BPZ20P060FZK
* 18 Polyethylene Bag E36-615
19 Contain Box CZH5590
Owner's Manual,Installation Manual
Part No.
CZR2950
CZR2951
CZR2952 English, Spanish, German
French, Italian, Dutch
English, Spanish, German, French, Italian, Dutch
Language
- PACKING SECTION PARTS LIST
KEH-P4020R/XM/EW
