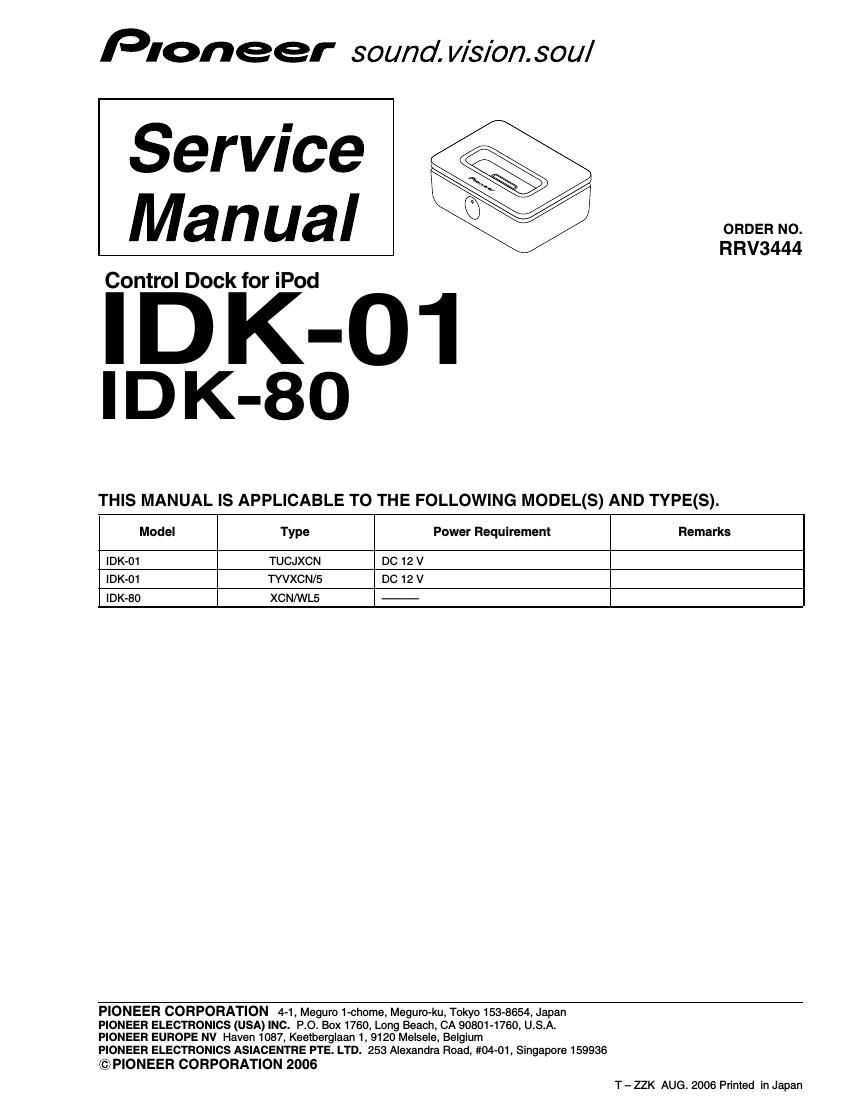

Page 1
2
1
23
4
1234
C
D
F
A
B
E
IDK-01
SAFETY INFORMATION
Page 2
3
1
234
1
23
4
C
D
F
A
B
E
IDK-01
. . . . . . . . . 99 mm (W) x 33 mm (H) x 74 mm (D)
-Video Cable
(L = 2 m)
(L063120200020-IL)
-SR Cable
(L = 2 m)
(L063120200000-IL) -Audio Cable
(L = 2 m)
(L063220200010-IL)
Accessories
ADAPTER
- Power section and miscellaneous IDK-01
IDK-80
Power requirements (using the supplied adapter)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC 12 V
Dimensions
3.9 in. (W) x 1.3 in. (H) x 2.9 in. (D)
Weight . . . . . . . . . . . . . . . . . . . . . 200 g (7.1 oz.)
- AccessoriesRemote control . . . . . . . . . . . . . . . . . . . . . . . . . .1
Lithium battery (CR2025). . . . . . . . . . . . . . . . . . 1
iPod type adapter. . . . . . . . . . . . . . . . . . . . . . . . 6
AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Audio cable (2 m / 6.6 ft.) red/white . . . . . . . . . .1
Video cable (2 m / 6.6 ft.) yellow . . . . . . . . . . . . 1
SR cable (2 m / 6.6 ft.) . . . . . . . . . . . . . . . . . . . .1
Operating instructions. . . . . . . . . . . . . . . . . . . . .1
Warranty card
Note
-Specifications and design subject to
possible modification without notice, due
to improvements.
Playlist Shuffle
Re
peat Pla ylist
Enter
MenuOSD
On/Off
-Remote Control
(8300180900010-IL)-lithium battery
(CR2025)
-AC adapter
(TUCJXCN:
M080102120020-IL)
(TYVXCN/5:
M080102120030-IL)-Adapter
(4720210091000-IL)
(4720210101000-IL)
(4720210081000-IL)
(4720210131000-IL)
(4720210111000-IL)
(4720210121000-IL)
-Adapter
(4720210091000-IL)
(4720210101000-IL)
(4720210081000-IL)
(4720210131000-IL)
(4720210111000-IL)
(4720210121000-IL)TYVXCN/5 Only
iPod model
marking
Corresponding iPod type
iPod 20GB Fourth generation 20 GB iPod
iPod 40GB Fourth generation 40 GB iPod
mini iPod mini
Color 20GB
30GB 20 GB / 30 GB iPod
Color 40GB
60GB 40 GB / 60 GB iPod
nano iPod nano4720210091000-IL
4720210101000-IL
4720210081000-IL
4720210111000-IL
4720210121000-IL
4720210131000-IL
Model mark Part No.
Accessories
- Main unitDimensions
. . . . . . . . . 99 mm (W) x 33 mm (H) x 74 mm (D)
3.9 in. (W) x 1.3 in. (H) x 2.9 in. (D)
Weight . . . . . . . . . . . . . . . . . . . . . 150 g (5.3 oz.)
- AccessoriesiPod type adapter . . . . . . . . . . . . . . . . . . . . . . . 6
Operating instructions. . . . . . . . . . . . . . . . . . . . 1
Warranty card (North America /Europe / Japan)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Note
-Specifications and design subject
to possible modification without
notice, due to improvements.
(Red)
(Yellow)
(White)
PUSH
1. SPECIFICATIONS
