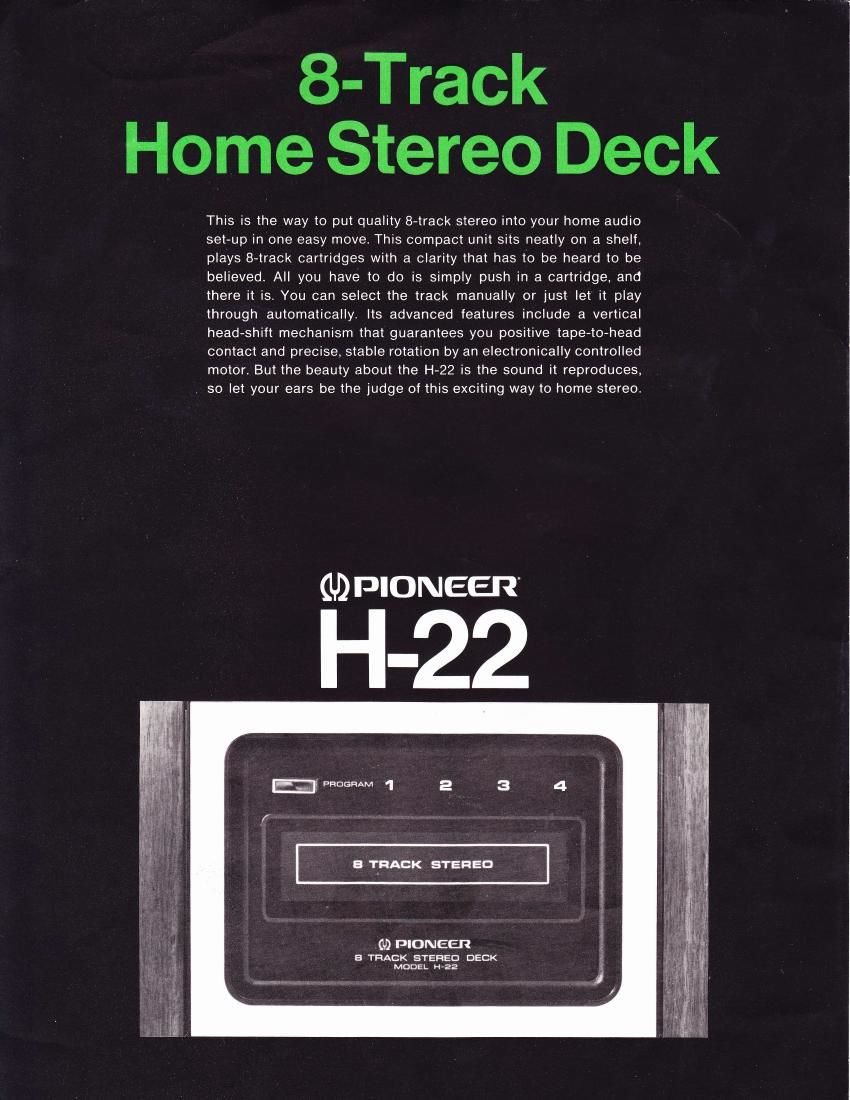

The stereo entertainment in one compact unit oSolid state, all transistor circuitry for complete dependability
and top performance.
oAutomatic or manual program selection. A big illuminated
indicator tells you which program is being played.
oWide response range from 40 to 12,000H2 for excellent
orchestral reproduction.
oVertical head shift mechanism assures positive tape-head
contact.
oBeautiful walnut finished and satin chrome trirfr cabinet. Built
with the quality that has made Pioneer stereo sets famous.
Manual track change button
SPECIFICATIONSSem i-Conductors: Controls:Power Source: Power Consumption: Wow and Flutter: Frequency Response: Total Harmonic Distortion Channel Separation: Crosstalk:Signal to Noise Ratio: Output Terminal: Dimensions;(WxHxD)Weight:
4 Transistors, 2 Diodes Program, Voltage Selector AC 1 20 1220 I 240V, 50/60H2 Less than 25W Less Than 0.25o/o (WRMS) 40 - 12,000H2 Less Than 27o More Than 40dB More Than 45dB More Than 40dB Line Out 8x4-3/4 x 11 in. (198 x 120 x 280 m/m) 4 8lbs. (2.2Ks)
Program indicators
NOTE: Specifications and
Cartridge loading slot
design subject to possible modification without notice.
