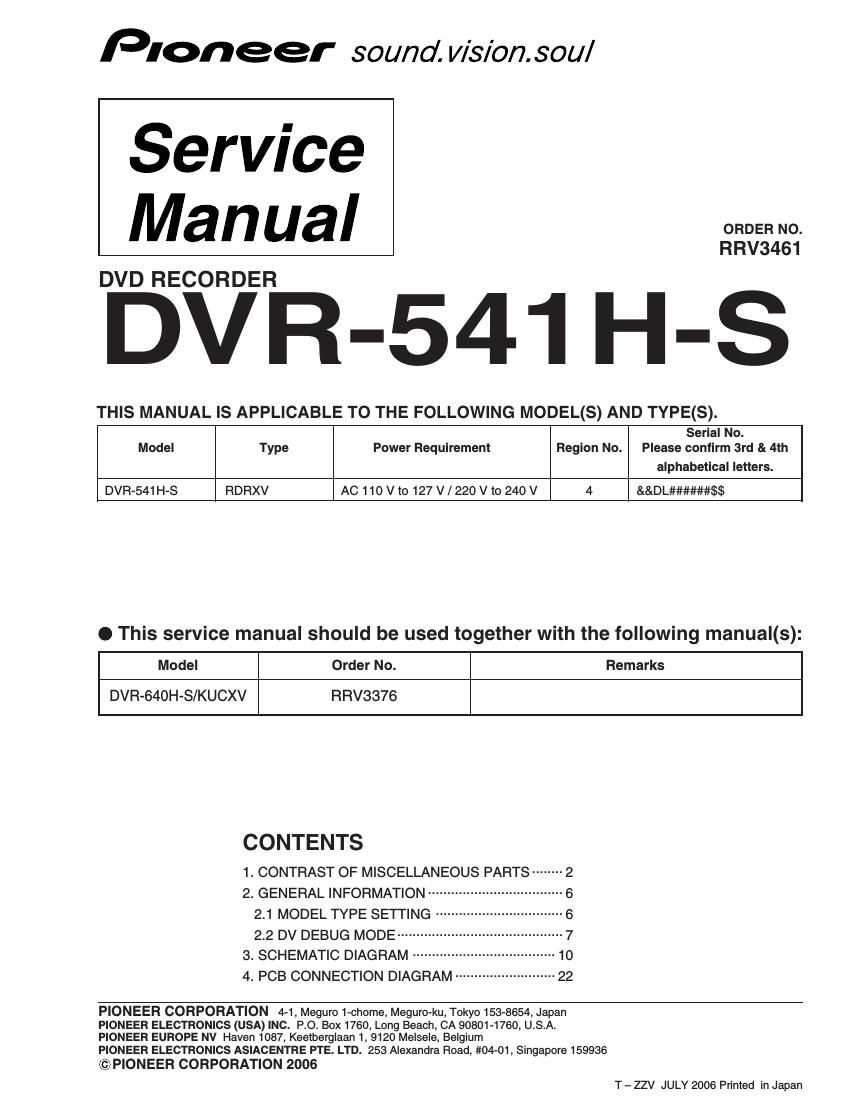

Pioneer sound. vision. soul
Service
Manual
DVD RECORDER
DVR-541 H-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ORDER NO.
RRV3461
Serial No.
Model Type Power Requirement Region No. Please confirm 3rd & 4th
alphabetical letters.
DVR-541H-S RDRXV AC 110 V to 127 V / 220 V to 240 V 4 &&DL######$$
O This service manual should be used together with the following manual(s):
2.1 MODEL TYPE SETTING
2.2 DV DEBUG MODE -------------
3. SCHEMATIC DIAGRAM ----------------
4. PCB CONNECTION DIAGRAM -----
Model Order No. Remarks
DVR-64OH-S/KUCXV RRV3376
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2_ GENERAL INFORMATION ................................... 6
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
© PIONEER CORPORATION 2006
T - ZZV JULY 2006 Printed in Japan
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES: 0 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts Lists
0 The ,fl\. mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to V mark on product are used for disassembly.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
C For the applying amount of lubricants or glue, follow the instructions in this manual
(In the case of no amount instructions, apply as you think it appropriate)
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples
ELI When there are 2 effective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%)t
560 Q -> 56 X 10 -> 561 .
47k!) -> 47><10j -> 473.
0.5 0 -> R50
1 0 -> 1R0 .
Ex.2 When there are 3 effective digits (such as in high prec 'on metalfilm resistors).
5.62k 0 -> 562 X 10 -> 5621 .. RN1/4PC E E F
l CONTRAST TABLE
DVR-541H-S/RDRXV and DVR-540H-S/KUCXV are constructed the same except for the following :
Ref _ _ Part No.
N ' Mark Symbol and Description Remarks
0' DVR-540H-S/KUCXV DVR-541H-S/RDRXV
PCB ASSEMBLIES
NSP 1..TUJB ASSY VWM2362 VWM2368
NSP 2..TUJB Al VWV2168 VWV2168
P11- 1 3..TUJB ASSY (tor Service) VXX3146 VXX3150
P11- 3 1..MA|N ASSY (for Service) VXX3159 VXX3161
P11- 6 Q 1.. POWER SUPPLY UNIT VWR1401 VWFI14OO No service part
1..DVJB ASSY Not used VWV2160 No.1
PACKING SECTION
P9- 1 & Power Cord ADG7021 ADG7003
A Power Cord Not used xoesoos
P9- 4 Remote Control Unit VXX3095 VXX2964
P9- 5 Battery Cover VZN1004 AZA7424
P9- 6 Top Cover VZN1012 Not used
P9- 8 NSP Warranty Card ARY7045 Not used
P9- 9 Operating Instructions (English) VRB1412 VRBt417
P9-1O Operating Instructions (French) VRC1318 Not used
Operating Instructions (Spanish) Not used VRC1328
Operating Instructions (Portuguese) Not used VRC1365
P9-11 Quick Start Guide VRG1014 Not used
P9-12 Quick Start Guide VRL1012 Not used
P9-18 Packing Case VHG2726 VHG2750
EXTERIOR SECTION
P11- 7 HDD 80G ST3802110 VXF1108 Not used
P11-7 HDD160G ST3160212 Not used VXF1110
Flexible Cable(24P) Not used VDA2111 No.2
DV Angle Not used VNE2426 No.3
Screw Not used VBA1088 No.4
P11-22 Rear Panel VNA2870 VNA2927
P11-32 Rubber Spacer VEB1389 VEB1380
FRONT PANEL SECTION
P13-12 Front Panel VN K5966 VNK6052
P13-14 FL Lens PTD VXA2740 VXAZBOB
P13-15 Door PTD VXA2776 VXA2807
Notes : - For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES,PCB PARTS LIST, 3. SCHEMATIC DIAGRAM
and 4. PCB CONNECTION DIAGRAM"..
- The numbers in the remarks column correspond to the numbers on EXTERIOR SECTION".
2 ova-541 H-S
-
1 I 2 3 I 4
