Extracted text from pioneer dvr 433 hs service manual (Ocr-read)

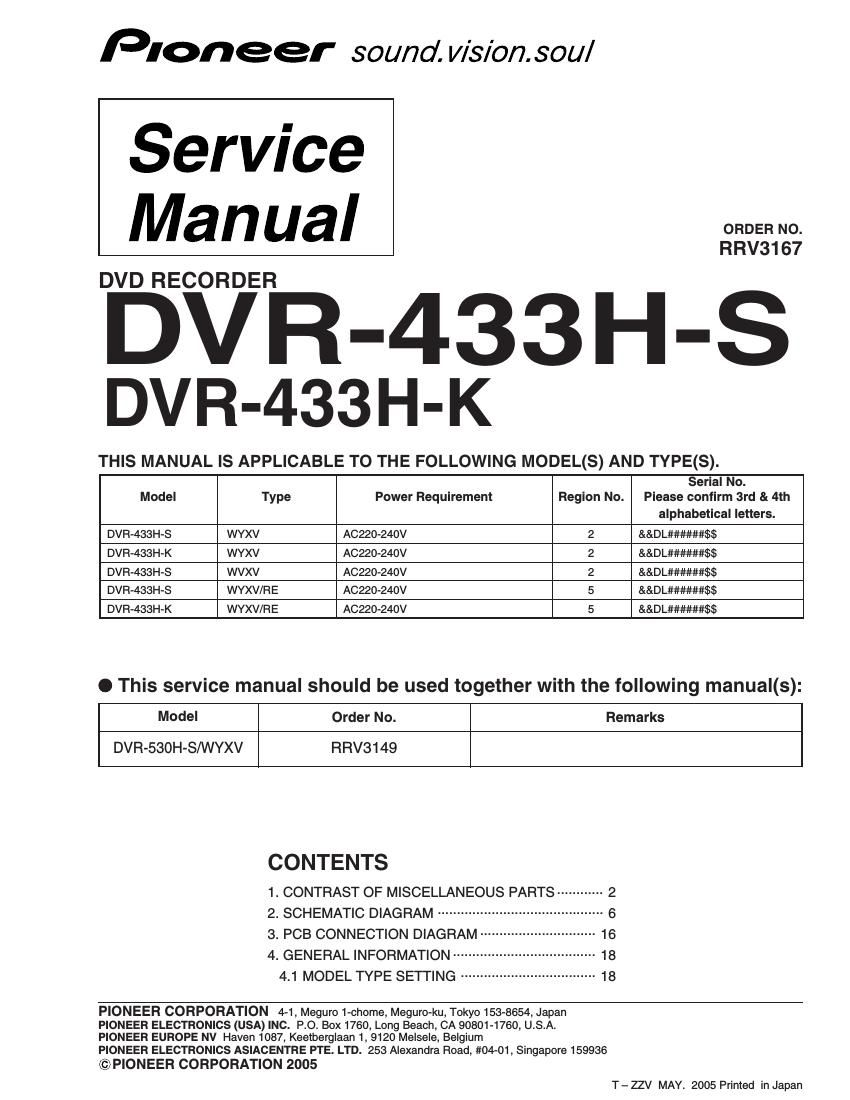

Page 1
Pioneer sound. vision. soul
Service
Manual
RRV3167
DVD RECORDER
DVR-433H-S
DVR-433H-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Serial No.
Model Type Power Requirement Region No. Piease confirm 3rd & 4th
alphabetical letters.
DVR-433H-S WYXV A0220-240V 2 &&DL######$$
DVR-433H-K WYXV AC220-24OV 2 &&DL######$$
DVR-433H-S WVXV A0220-240V 2 &&DL######$$
DVR-433H-S WYXV/RE A0220-240V 5 &&DL######$$
DVR-433H-K WYXV/RE AC220-240V 5 &&DL######$$
O This service manual should be used together with the following manual(s):
Model Order No. Remarks
DVR-SSOH-S/WYXV RRV3149
CONTENTS
I. CONTRAST OF MISCELLANEOUS PARTS
2_ SCHEMATIC DIAGRAM ...................................
3. PCB CONNECTION DIAGRAM ------ 16
4. GENERAL INFORMATION ----------------- 18
4] MODEL TYPE SETTING ................................... 18
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2005
T - ZZV MAY. 2005 Printed in Japan
