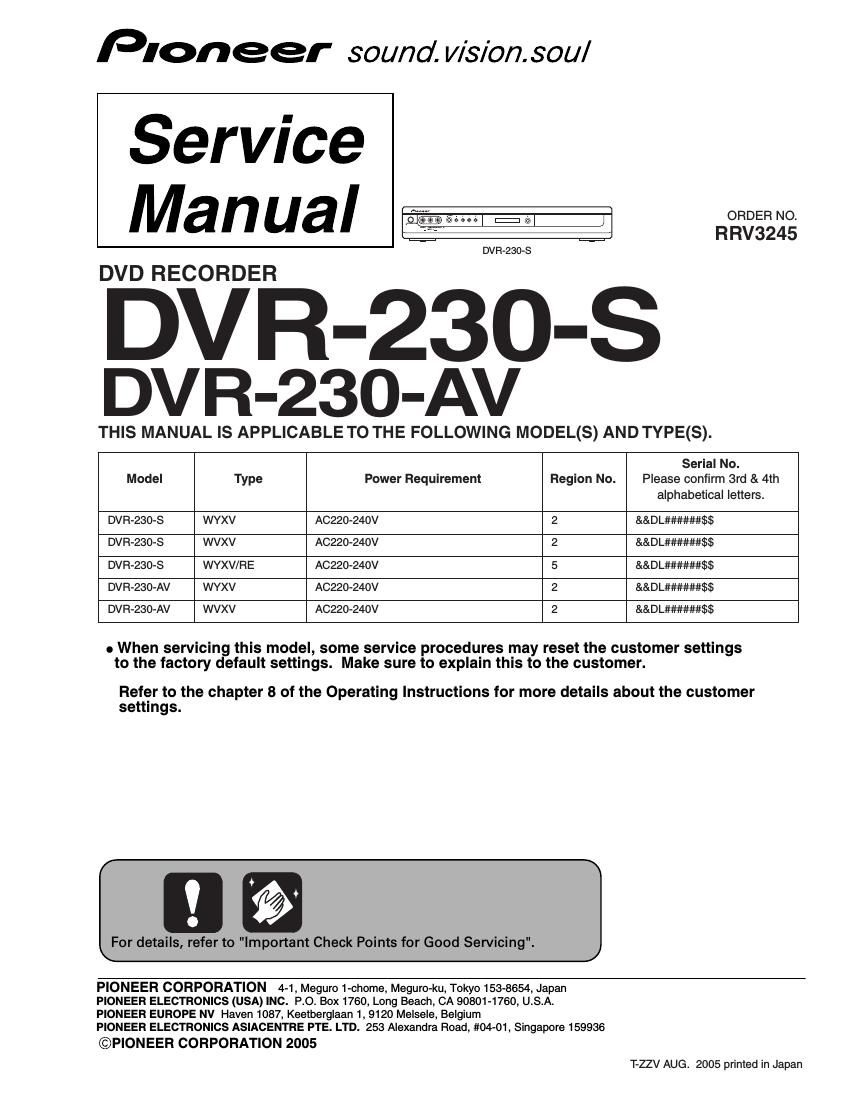

Page 1
Pioneer sound. vision. soul
Service
Manual
ORDER NO.
RRV3245
DVRv230rS
DVD RECORDER
DV R '2 3 0'
DV R'230'AI
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Serial No.
Model Type Power Requirement Region No. Please confirm 3rd & 4th
alphabetical letters.
DVR-230-S WYXV AC220-240V 2 &&DL######$$
DVR-230-S WVXV AC220-240V 2 &&DL######$$
DVR-230-S WYXV/RE AC220-240V 5 &&DL######$$
DVR-230-AV WYXV AC220-240V 2 &&DL######$$
DVR-230-AV WVXV AC220-240V 2 &&DL######$$
c When servicing this model, some service procedures may reset the customer settings
to the factory default settings. Make sure to explain this to the customer.
Refer to the chapter 8 of the Operating Instructions for more details about the customer
settings.
'9
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2005
T-ZZV AUG. 2005 printed in Japan
Page 2
SAFETY INFORMATION
I LABEL CHECK
IMPORTANT
LASER OF CLASS 1.
INSTRUCTED PERSON.
THIS PIONEER APPARATUS CONTAINS
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 100 mW
WAVELENGTH: 654 - 662 nm
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mW
WAVELENGTH: 770 - 810 nm
CLASS 1
LASER PRODUCT
2
m
D RW2247
Additional Laser Caution
. The ON/OFF(ON:Iow level,OFF:high level) status of the
CLAMP signals for detecting the loading state are detected
by the drive CPUs, and the design prevents laser diode
oscillation when the CLAMP signal turns OFF.
In normal operation, it no disc is clamped, the laser diode
oscillation is disabled.
However, the interlock does not always operate in the test
mode.
. When the cover is opened, close viewing ot the objective
lens with the naked eye will cause exposure to a Class 3A
laser beam.
DVR-230-S
