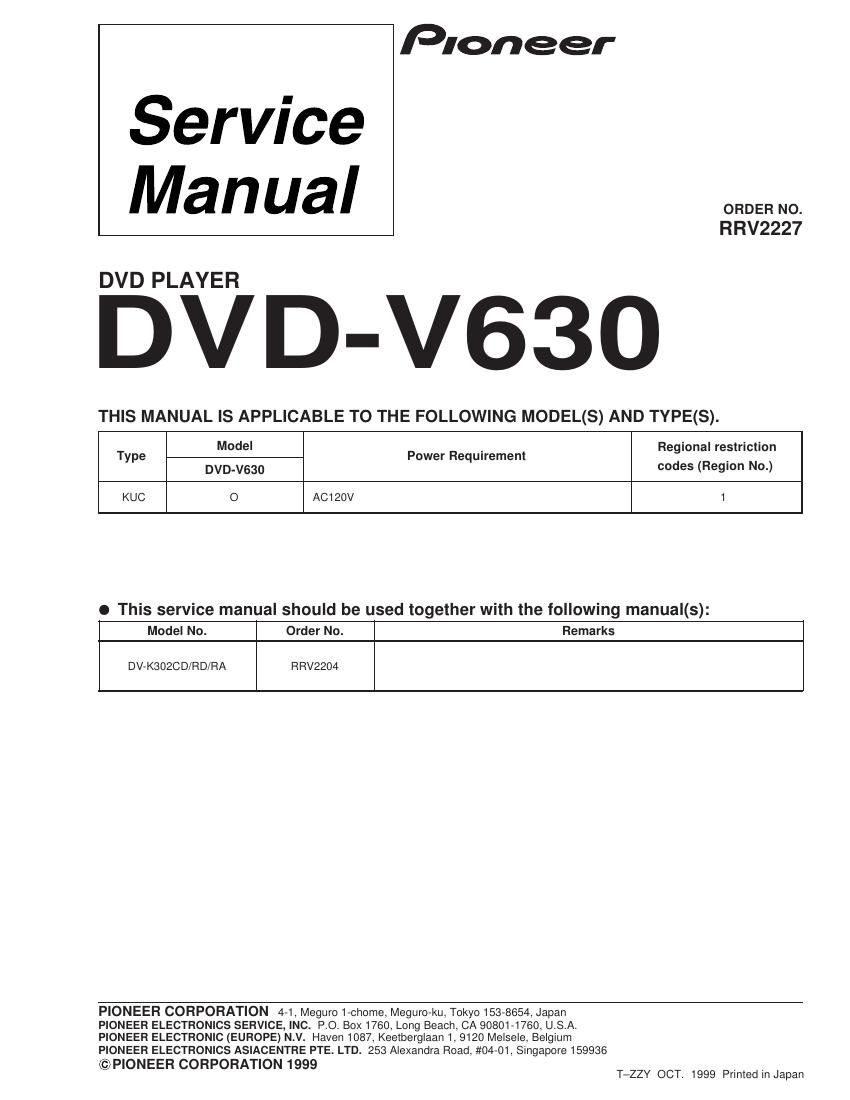

Service
Manual

DVD PLAYER

Pioneer

ORDER NO.
RRV2227

DVD-V630

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Regional restriction

Model _
TYPE Power Requirement _
DVD-V630 codes (Region No.)
KUC o AC120V 1

o This service manual should be used together with the following manual(s):

Model No.

Order No.

Remarks

DV-K3OZCD/RD/RA

RRV2204

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 1999

T-ZZY OCT. 1999 Printed in Japan

Page 2

DVD-V630

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: 0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
0 The A markfound on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
I Screws adjacent to V mark on product are used for disassembly.
.Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex] When there are 2 effective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 a 56 X 10 a 561
47k * 47X10 -- 473
0.5 * R50 -- -
l 4 [KO -RS1P-®@K
Ex.2 When there are 3 eflective digits (such as in high precision metalfilm resistors).
562k a 562 X 10 a 5621 -------------- RNI/4PC- IF


I CONTRAST TABLE
DVD»V630/KUC and DV-KSOZCD/RD/RA are constructed the same except for the following :
Part No.
Ref. No. Mark Symbol and Description DV-K302CD DVD-V630 Remarks
RD/RA KUC
PCB ASSEMBLIES
P7 - 3 VJKB Assy VWV1709 VWV1718
P7 - 4 A POWER SUPPLY Assy VWR1313 VWR1315 *1
NSF FRPB Assy VWM1926 VWM1925
P9 - 1 |:FLKY Assy VWG2063 VWGZOGZ
P9 - 3 NSF PWSB Assy VWGZOGQ VWG2108
PACKING
P5 - 1 A Power Cord ADG7003 ADG7021
P5 - 5 Operating Instructions (French) Not used VFlC1105
P5 - 6 Packing Case VHG1819 VHG1843
P5 - 13 NSP Warranty Card ARY7025 ARY7024
EXTERIOR SECTION
P7 - 11 Bonnet S VXX2617 VXX2672
P7 - 12 Rear Panel VNA2103 VNA2111
P7 - 30 Tray Panel VNK4499 VNK4535
P7 - 38 NSP Housing Assy VKP2189 Not used
P7 - 35 NSP Getter VRW1787 Not used
65 Label Not used ARW7050 No.1
FRONT PANEL SECTION
P9 - 5 Front Panel VNK4498 VNK4534
P9 - 6 FL Lens VAH1319 VAH1329
P9 - 7 Name Plate PAM1779 PAM1776
P9 - 8 LED Lens Not used PNW2019 No.2
P9 - 9 Lens Holder Not used VNK4266 No.3
P9 - 10 PW Button VNK4059 VNK4101
P9 - 11 Main key VNK4501 VNK4536
P9 - 16 11 Key VNK4500 VNK4506
P9 - 19 Rotary Knob RA02201 RAC1903
Notes:

- The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS".

~ For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM.

*l: The POWER SUPPLY Assy (VWRISIS) is the same as that of the parts used for other destination models (DV»C302D/KU/CA) included
in the manual (page 7, No.4 ) of the main model (DV7K302CD: OREDER No. RRV2204) .
