pioneer dvc 603 service manual

Extracted text from pioneer dvc 603 service manual (Ocr-read)


Page 1

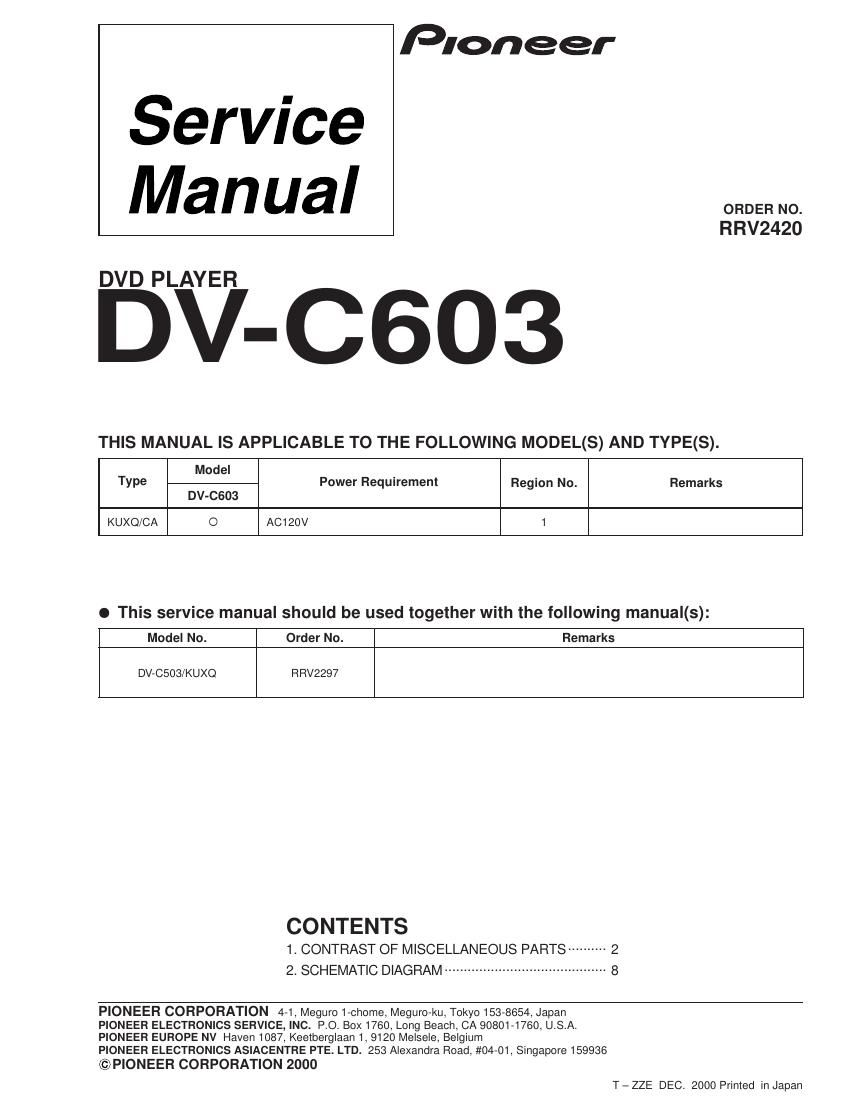

Service
Manual

Pioneer

ORDER NO.
RRV2420
DVDPLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type Power Requirement Region No. Remarks
DV-CGO3
KUXQ/CA o AC120V 1

o This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
DV-CSOS/KUXQ RRV2297
CONTENTS
1, CONTRAST OF MISCELLANEOUS PARTS ---------- 2
2' SCHEMATIC DIAGRAM .......................................... 8

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000

T - ZZE DEC. 2000 Printed in Japan

Page 2

DV-C603

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .'

0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in thefollowing examples.
Ex. 1 When there are 2 eflective digits (any digit apart from 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J = 5%, andK =10%).

5609-»56x10I->561. ..RD//4PUE@EJ
47k (2 -> 47 X103-> 473 RDI/4PU E
0.5Q->R50 ................. RNZHE @K
19*1R0 ...... ................ RS1PE®@K

Ex. 2 When there are _ flective dig7 such a n high prec ion metal film resistors).
5.62kQ->562><10->5621 ........................................... RNl/4PC- .mF

l CONTRAST TABLE
DV-0603/KUXQ/CA and DV-C503/KUXQ are constructed the same except for the following:

Ref _ _ Part No.
' Mark Symbol and Description Remarks

No. DV-C503/KUXQ DV-C603/KUXQ/CA

PCB ASSEMBLIES
P5 - 1 DVDM ASSY VWS1429 VWS1430

NSP JKSB ASSY VWM2028 VWM2030
P5 - 2 JAC1 ASSY VWV1751 VWV1755
P5 - 3 JACZ ASSY VWV1752 VWV1754
NSP FLKB ASSY VWM1995 VWM1997

P5 - 4 FLKY ASSY VWGZ182 VWG2184
P5 - 6 NSP PWSB ASSY VWGZ188 VWG2190

PACKING
P3 - 9 Packing Case VHG1895 VHG1917
P3 -13 Operating Instructions (English) VRB1243 VRB1247
P3 - 4 Remote Control Unit VXX2705 VXX2706

EXTERIOR
P5 -23 Rear Panel VNA2168 VNA2180
P5 -31 LED Lens VNK4503(><1) VNK4503 (X2) N0. 1
P5 -32 Tray Panel VNK4604 VNK4653
P5 -33 Front Panel Assy VXA2441 VXA2443
P5 -35 Front Panel VNK4602 VNK4633
P5 -37 FL Lens VNK4617 Not used

FL Lens Not used VE02132 No.2

0 The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS.
' For PCB assemblies, Refer to CONTRAST OF PCB ASSEMBLIES, PCB PARTS LIST" and 2. SCHEMATIC DIAGRAM.
