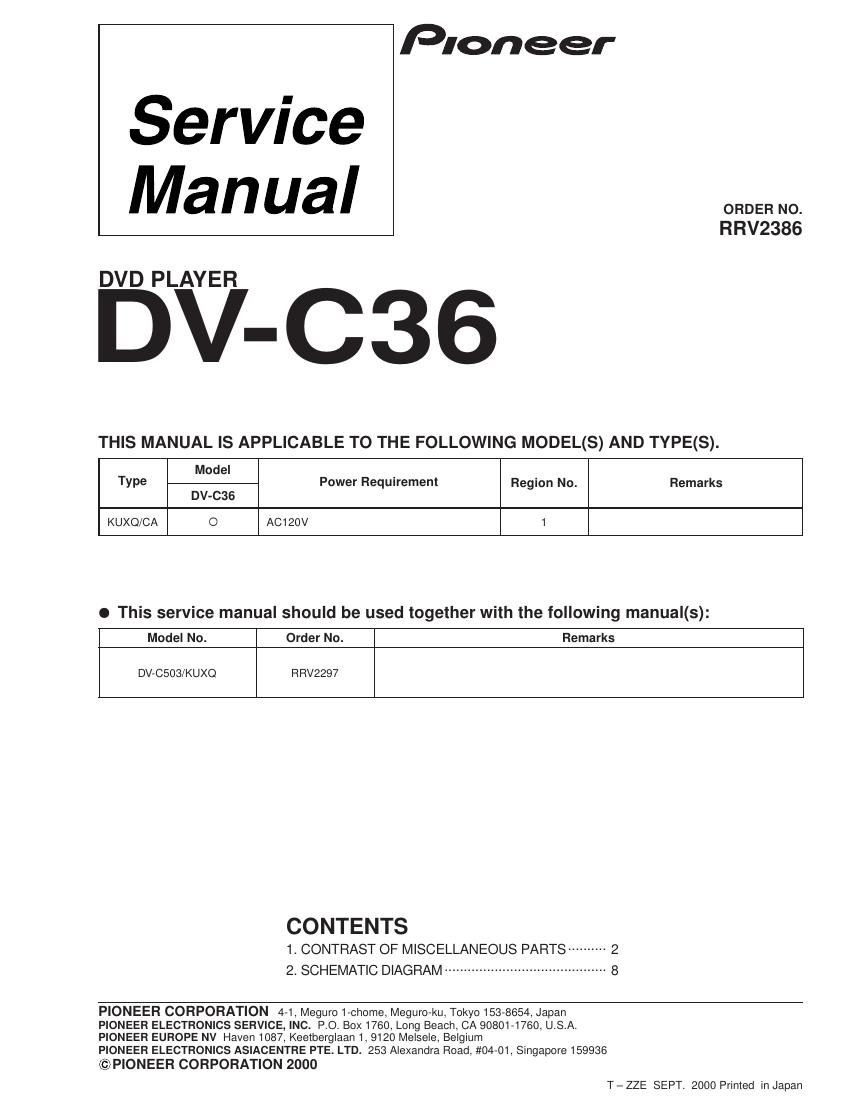

Page 1

Service
Manual

Pioneer

ORDER NO.
RRV2386
DVDPLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type Power Requirement Region No. Remarks
DV-C36
KUXQ/CA o AC120V 1

o This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
DV-CSOS/KUXQ RRV2297
CONTENTS
1, CONTRAST OF MISCELLANEOUS PARTS ---------- 2
2' SCHEMATIC DIAGRAM .......................................... 8

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000

T - ZZE SEPT. 2000 Printed in Japan

Page 2

DV-C36

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .'

0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in thefollowing examples.
Ex. 1 When there are 2 eflective digits (any digit apart from 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J = 5%, andK =10%).
5600*56X10->561.
47kQ-> 47><101-> 473

.. RDl/4PU E El m J
RDI/4PU @

0.5Q->R50 ................. RNZHE @K
lQ->1R0 ...... ................ RSIPEEEK

Ex. 2 When there are _ flective dig7 such a n high prec ion metal film resistors).
5.62kQ->562><10->5621 ........................................... RNl/4PC- .mF

l CONTRAST TABLE
DV-C36/KUXQ/CA and DV-0503/KUXQ are constructed the same except for the following:

Ref. . . Part No.
Mark Symbol and Description Remarks
NO- Dv-csos/Kuxo DV-C36/KUXQ/CA
PCB ASSEMBLIES
P5 - 1 DVDM ASSY VWS1429 VWS1430
NSP JKSB ASSY VWM2028 VWM2031
P5 - 2 JAC1 ASSY VWV1751 VWV1757
P5 - 3 JACZ ASSY VWV1752 VWV1758
NSP FLKB ASSY VWM1995 VWM1998
P5 - 4 FLKY ASSY VWGZ182 VWG2185
P5 - 5 NSP KYLB ASSY VWGZ186 VWG2187
P5 - 6 NSP PWSB ASSY VWGZ186 VWG2190
PACKING
P3 - 9 Packing Case VHG1895 VHG1916
P3 43 Operating Instructions (English) VRB1243 VRB1246
P3 - 4 Remote Control Unit VXX2705 VXX2706
P3 -12 NSP Warranty Card ARY7045 ARY7007
EXTERIOR
P5 -14 Insulator PNW2766 (x2) PNW2766 (x4) No. 1
P5 -15 Foot Assy REC1263 Not used
P5 -23 Rear Panel VNA2168 VNA2181
P5 -31 LED Lens VNK4503 (x1) VNK4503 (X7) No. 2
P5 -32 Tray Panel VNK4604 VNK4654
P5 -33 Front Panel Assy VXA2441 VXA2444
P5 -35 Front Panel VNK4602 VNK4634
P5 -37 FL Lens VNK4617 Not used
P5 -38 5 Key VNK4643 VNK4616
FL Lens Not used VE02138 No.3
FL Filter Not used VE02137 No.4
NSP Bottom Plate Not used VNA2197 No. 5

0 The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS".
' For PCB assemblies, Refer to "CONTRAST OF PCB ASSEMBLIES, PCB PARTS LIST" and '2. SCHEMATIC DIAGRAM.
