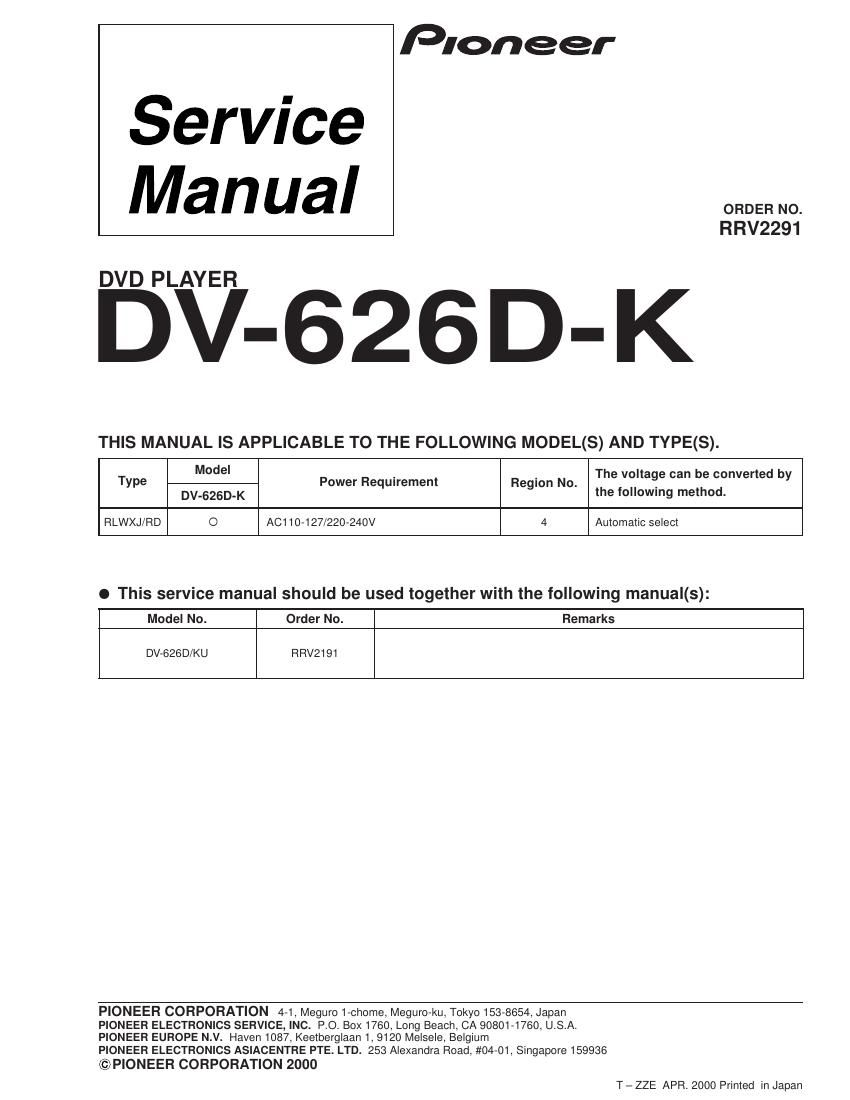

Page 1
DV-626D-K
2
7 CONTRAST TABLE
DV-626D-K/RLWXJ/RD and DV-626D/KU are constructed the same except for the following:
PCB ASSEMBLIES
NSP JCKB ASSY Not used VWM1937
P9 - 2 JCKB ASSY VWV1682 VWV1683
P9 - 3 NSP MSWB ASSY Not used VWG2073*1
NSP FLKB ASSY VWM1931 VWM1933
P7 - 1 FLKY ASSY VWG2089 VWG2091
P7 - 2 NSP PWSB ASSY VWG2094 VWG2096
P9 - 4 POWER SUPPLY ASSY VWR1316 VWR1314*1
PACKING
P5 - 1 Audio Cord VDE1033 VDE1052
P5 - 2 Video Cord VDE1034 VDE1053
P5 - 7 Packing Case VHG1825 VHG1952
P5 -10 NSP Warranty Card ARY7045 Not used
P5 -18
Power Cord ADG7021 ADG1154
P5 -23 NSP Label VRW1629 Not used
EXTERIOR SECTION
P6 - 4 Power Botton Not used VNK4184
P6 - 5 PW Botton Joint Not used VNK4179
P6 - 6 Tray VNL1731 VNK4570
P6 -17 65 Label ARW7050 Not used
FRONT PANEL SECTION
P7 - 5 Front Panel VNK4460 VNK4678
P7 - 8 PW Button (POWER) VNK4101 Not used
P7 -11 LED Lens Not used PNW2019
P7 -16 Flexible Cable (15P) VDA1728 VDA1807
NSP Getter Not used VRW1779
Ref.
No.Remarks
DV-626D/KU DV-626D-K/RLWXJ/RDPart No. Mark Symbol and Description
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List.
ÖThe
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
ÖReference Nos. indicate the pages and Nos. in the service manual for the base model.
ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 W = 56 ´ 10
1 = 561 ...................................................RD1/4PU 5 6 1 J
47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J
0.5 W = R50 ......................................................................RN2H å 5 0 K
1 W = 1R0 ......................................................................... RS1P 1 å 0 K
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k W = 562 ´ 10
1 = 5621...........................................RN1/4PC 5 6 2 1 F
Page 2
DV-626D-K
3
BOTTOM VIEW SECTION
P9 - 9 Flexible Cable (12P) VDA1692 VDA1749
P9 -10 Flexible Cable (26P) VDA1689 VDA1742
P9 -11 Flexible Cable (29P) VDA1726 VDA1805
P9 -12 Flexible Cable (15P) VDA1727 VDA1806
P9 -16 NSP Base Chassis VNA2064 VNA2091
P9 -17 Rear Panel VNA2065 VNA2219
P9 -24 NSP PC Support Not used VEC1584
P9 -25 NSP Label VRW1629 Not used
LOADING MECHANISM ASSY
P10 - 6 Loading Base VNL1844 VNL1854
P10 -15 Connector Assy VKP2198 VKP2218
P10 -21 Flexible Cable (24P) VDA1701 VDA1748
Ref.
No.Remarks
DV-626D/KU DV-626D-K/RLWXJ/RDPart No. Mark Symbol and Description
*1: These assemblies are used for DV-626D/WY. Refer to the service manual RRV2191.
7 CONTRAST OF PCB ASSEMBLIES
S801 Not used VSH1020 *1
C324, C334 VCH1193 CEBA101M25
(100mF/25V)
C422, C433, C460 VCH1192 CEAT101M10
(100mF/10V)
C627, C630 CEHAZA101M25 Not used
R881 Not used RS1/10S103J
*1
R882 Not used RS1/10S153J
*1
R884 RS1/10S682J Not used
R885 Not used RS1/10S682J
*1
KN102 EARTH METAL FITTING VNF1084 Not used
PC BOARD JCKB VNP1707 Not used
Mark Symbol and DescriptionPart No.
VWV1682 VWV1683Remarks
JCKB ASSY
VWV1683 and VWV1682 are constructed the same except for the following:
*1: These parts are used for DV-626D/WY. Refer to the service manual RRV2191.
C123 Not used CEJA220M6R3 *1
R141 RS1/10S622J RS1/10S273J
R143 RS1/10S363J RS1/10S683J
R144 RS1/10S0R0J Not used
R145, R146 Not used RS1/10S0R0J
*1
FL HOLDER VNF1087 VNF1096
*1
Mark Symbol and DescriptionPart No.
VWG2089 VWG2091Remarks
FLKY ASSY
VWG2091 and VWG2089 are constructed the same except for the following:
*1: These parts are used for DV-626D/WY. Refer to the service manual RRV2191.
