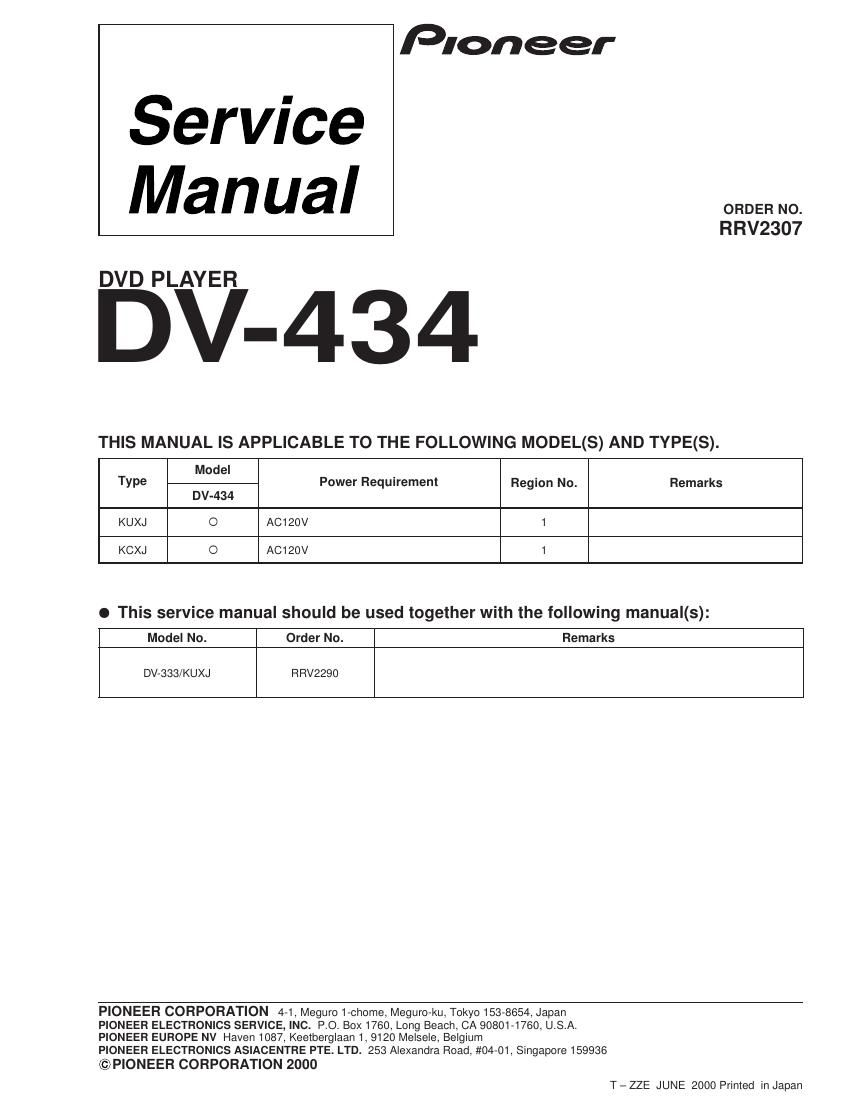

Service
Manual
DVD PLAYER
Pioneer
ORDER NO.
RRV2307
DV-434
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type Power Requirement Region No. Remarks
DV-434
KUXJ O AC120V 1
KCXJ O AC120V 1
o This service manual should be used together with the following manual(s):
Model No. Order No.
Remarks
DV-333/KUXJ RRV2290
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000
T - ZZE JUNE 2000 Printed in Japan
DV-434
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES .' 0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
I CONTRAST TABLE for DV-434/KUXJ
DV»434/KUXJ and DV»333/KUXJ are constructed the same except for the following:
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowin37 examples.
Ex. 1
Ex. 2
When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J: 5%,andK=10%).
5609»56x10'->561.
47kQ->47><103->473
0.5Q->R50 RNZHlE-lEK
IQ->1R0... RS1Pm®@K
When there are 3? eflective dig 11 high prec ion metalfilm resistors).
5.62kQ->562><10->5621 ........................................... RNl/4PCEEIEF
.. RD]/4PU E m J
RD]/4PU E m E J
Ref . . Part No.
N ' Mark Symbol and Description Remarks
0' DV-333/KUXJ DV-434/KUXJ
PCB ASSEMBLIES
P5 - 1 DVDM Assy VWS1412 VWS1432
FLJB Assy VWM1991 VWM2049
P5 - 4 FLJB Assy VWV1748 VWV1780
P5 - 2 NSP PWSB Assy VWGZ174 VWG2243
PACKING
P3 - 4 Remote Control Unit VXX2702 VXX2703
P3 - 9 Packing Case VHG1901 VHG1924
P3 -13 Operating Instructions (English) VRB1244 VRB1252
EXTERIOR
P5 -12 Rear Panel VNA2161 VNA2183
P5 -17 Front Panel Assy VXA2391 VXA2399
P5 -19 NSP Pop Label VRW183O VRW1833
NSP Pop Label Not used VRW1845 For Front Panel
O For PCB assemblies, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM.
