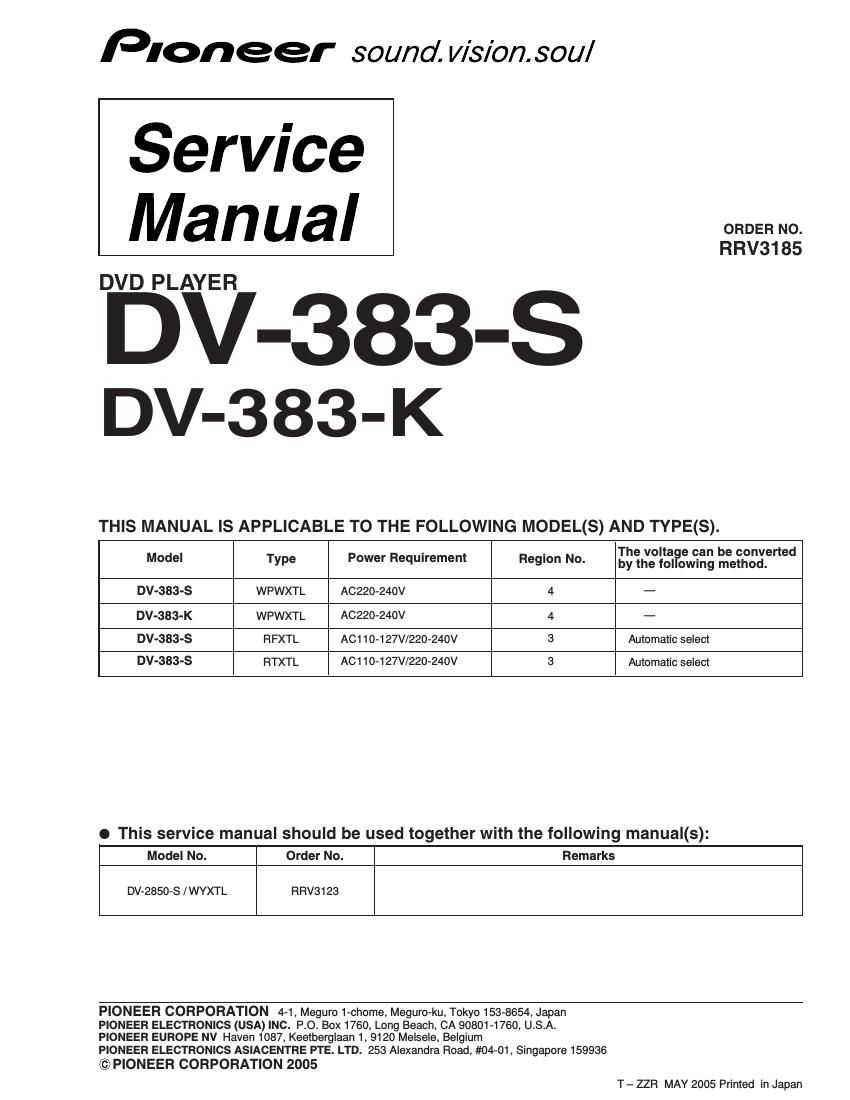

Page 1

Pioneer sound. l/I'SI'OILSOU/

Service
Manual

DVD PLAYER

V-383-S

DV-383-K

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV3185

Model Type Power Requirement Region No. ECIiIgIIJaIIfifig fiffigfrmd
DV-383-S WPWXTL AC220-24OV 4 -
DV-383-K WPWXTL AC220-24OV 4 _
DV-383-S RFXTL AC110-127V/220-240V 3 Automatic select
DV-383-S RTXTL AC110-127V/220-240V 3 Automatic select

o This service manual should be used together with the following manual(s):

Model No.

Order No.

Remarks

DV-2850-S /WYXTL

RRV3123

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2005

T - ZZFl MAY 2005 Printed in Japan

Page 2

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: OParts marked by NSP are generally unavailable because they are not in our Master Spare Parts List.
0 The E mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

0 Screws adjacent to V mark on product are used for disassembly.

O For the applying amount oflubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
I Reference Nos. indicate the pages and Nos. in the service manual for the base model.

0 When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

560 _ 56 X 10 -
47k - 47X 103 a
0.5 - R50

1 - 1R0

561
473


RS1P.®@K

Ex.2 When there are 3 eflective digits (such as in high prec on metal film res tors).

5.62k d 562 x 10 ~ 5621 RNl/4PCIE IF
I CONTRAST TABLE
DV-383-S/WPWXTL, DV»383»K/WPWXTL and DV-2850»S/WYXTL are constructed the same except for the following:
Part No.
Ref. . .
No. Mark Symbol and Description DV-2850-S / DV-383-S / DV-383-K / Remarks
WYXTL WPWXTL WPWXTL
PCB ASSEMBLIES
P9- 1 DVD MT PCB Assy A2G502A130 A2G512A130 A2G512A130
P9- 2 OPERATION PCB Assy A2G501A270 A2G512A270 A2G512A270
P9- 4 & POWER PCB Assy A2G502A240 A2G512A240 A2G512A240
PACKING SECTION
P7- 1 & Card Set AC 1206158802 120G168801 120G168801
P7- 6 NSP Guarantee Card J2G50202A Not used Not used
P7- 8 Operating lnstructions(Englisl1,ltalian) J2G50321A Not used Not used
P7- 9 Operating lnstructions(German,Francl1) J2G50322A Not used Not used
P7-1 0 Operating |nstructions(Spanisl1,Duch) J2G50323A Not used Not used
P7-10 Operating |nstructions(English) Not used J2G51201A J2G51201A
P7-1 2 Polyethylene Bag JB5KD400 JB5KD200 JBSKD200
P7-1 4 Package 792WHA0588 792WHA0597 792WHA0597
P7-1 5 Gift Box 793WCDC717 793WCDC786 793WCDC797
EXTERIOR SECTION
PB- 6 Shield, 21 Pin 761WSA0237 Not used Not used
PB- 8 NSP Plate, Bottom 702WSA0243 702WSA0251 702WSA0251
P9-14 Cabinet, Top 702WSBO114 702WSBO114 702WSBO115
P9-20 Screw, Tap Tite(B) 8109K3060U 8109K3060U B109K30608
P9-23 Sheet, Jack 1 7226310057 7226310060 7226310060
P9-24 Sheet, Jack 2 7226310073 722631 A041 722631A041
P9-25 Sheet, Jack 3 7226310063 722631 A042 722631 A053
P9-101 Front, Cabi Assy 7A7010108A 7A7010117A 7A701A483A
P9-101A NSP Cabinet, Front 701WPJ1346 701WPJ1354 701WPJD085
P9-101C Flap, DVD 712WPD0183 712WPJ0938 712WPJC176
P9-101 D Badge, Brand 7236310014 7236310014 7236310009
P9-101 E NSP Button, Power 738WPB0052 738WP80052 738WPA0141
P9-101 F NSP Button, Cap 1 738WPJ0009 738WPJ0009 738WP80003
P9-101 H NSP Button, Frame 4 738WPB0053 738WP80053 738WPA0138
P9-101J NSP Button, Frame 2 738WPB0056 738WP80056 738WPA0133
P9-101 L Cover, Remocon 711WPD0682 713WPA0376 713WPA0356
P9-101 M NSP Button, Cap 2 738WPJ0010 738WPJ0010 738WPBOOO4
CORD JUMPER (CD8001) 122H003001 Not used Not used

Notes: ' For ASSEMBLIES, refer to CONTRAST OF PCB ASSEMBLIES" and 2. SCHEMATIC DIAGRAM.

- 2

DV-383-S
-

3
