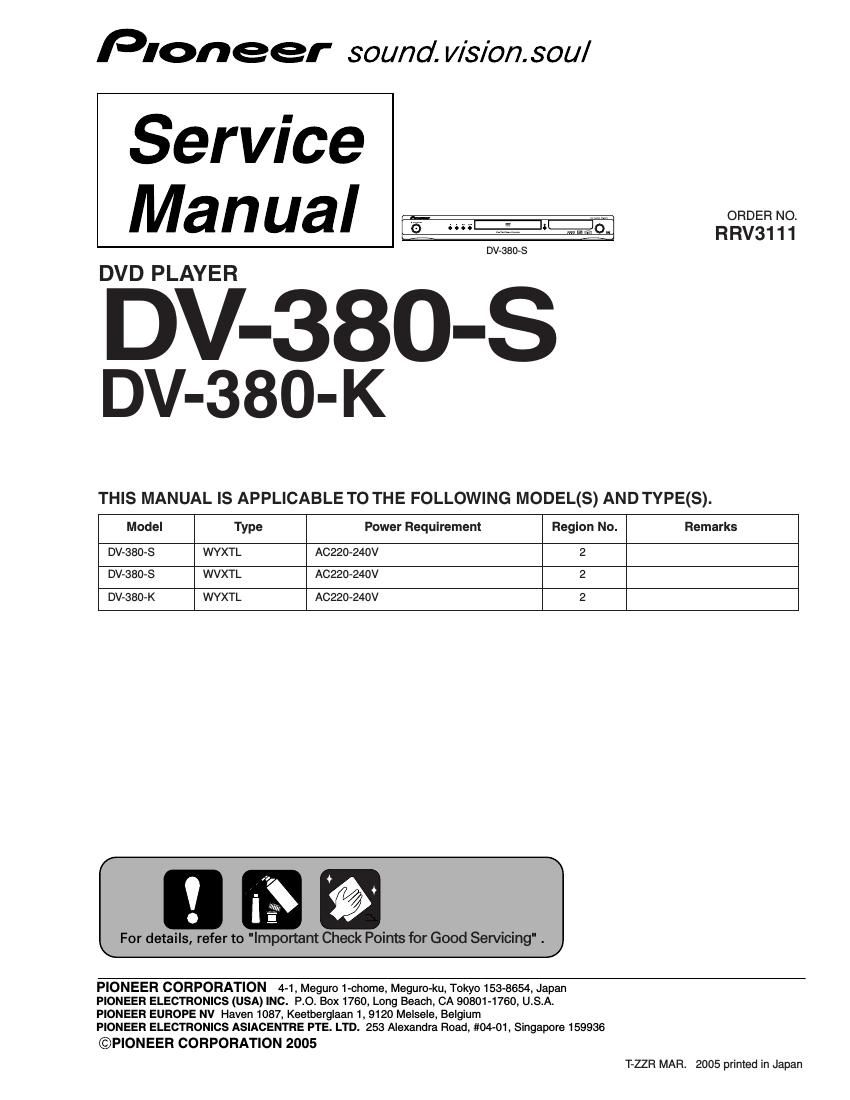

Page 1

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
RRV31 1 1
Dvrasors
DVD PLAYER
DV- 3 8 O - K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Region No. Remarks
DV-380-S WYXTL AC220-240V 2
DV-380-S WVXTL AC220-240V 2
DV-380-K WYXTL AC220-240V 2

For details, refer to "Important Check Points for Good Servicing" .

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2005
T-ZZR MAR. 2005 printed in Japan

Page 2

SAFE

TY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-
it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trainedto properly and safely repair complex products such as those covered by this
manual.lmproperly performed repairs can adversely affect the safety and reliability of the product
and mayvoid the warranty. If you are not qualified to perform the repair of this product properly and
safely, youshould not risk trying to do so and refer the repair to a qualified service technician.

CLASS 1.

- WARNING! -

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

FOR DVD :

FOR CD:

7 LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm
MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 780 nm

LABEL CHECK

Location: ins

ide of the unit

CAUTION
VORSICHT
ADVARSEL
VARNING
VARO!
CUIDADO

VIsIBLE AND INVISIBLE LASER BADIArIoN WHEN OPEN AVOID EXPOSURE TO BEAM,

SIGHTBARE UND UNSICHTBARE LASEBSIRAHLLING.WENNABBECKUNG GEOFFNET NIGHT DEM STRML AUSSEIZEN I
vaLIc os ustLIe LASERSTRALING VED ABNIMG uNucA uosIErIElsE FOR srmwe,

vaLIG OCH osVNLIG LASERSTRALNING NAB [JENNA DEL AR OPPNAD BETRAKVA EJ STRALEN

AVATTAESSA ALTISTUT NAKVVA JA NAKVMAWOMALLE mszasATEIL VtLE At} mso SATEESEN.

HADIACION LiisEa VISIBLE E INVISIBLE AL ESTAR ABIEBIo, EVITAR EXPOSICION At mo

CLASS I

LASER PRODUCT

(The following caution label
appears on your unit.)

725mm SH

Additional Laser Caution

. Laser Interlock Mechanism

' Laser diode is driving with 02303.02305(650nm LD) and 02302,
02304(780nm LD)on the DVD MT PCB Assy.

Therefore, when shortvcircuit between the emitter and collector of these
transistors or the base voltage is supplied for transistors turn on, the
laser oscillates. (failure mode)
0 In the test mode 9r , there is the mode that the laser oscillates except
for the disc judgment and playback. LD ON mode in the test mode
oscillates with the laser forcibly.

. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.

tr : See page 51.
