pioneer dv 3300 service manual

Extracted text from pioneer dv 3300 service manual (Ocr-read)

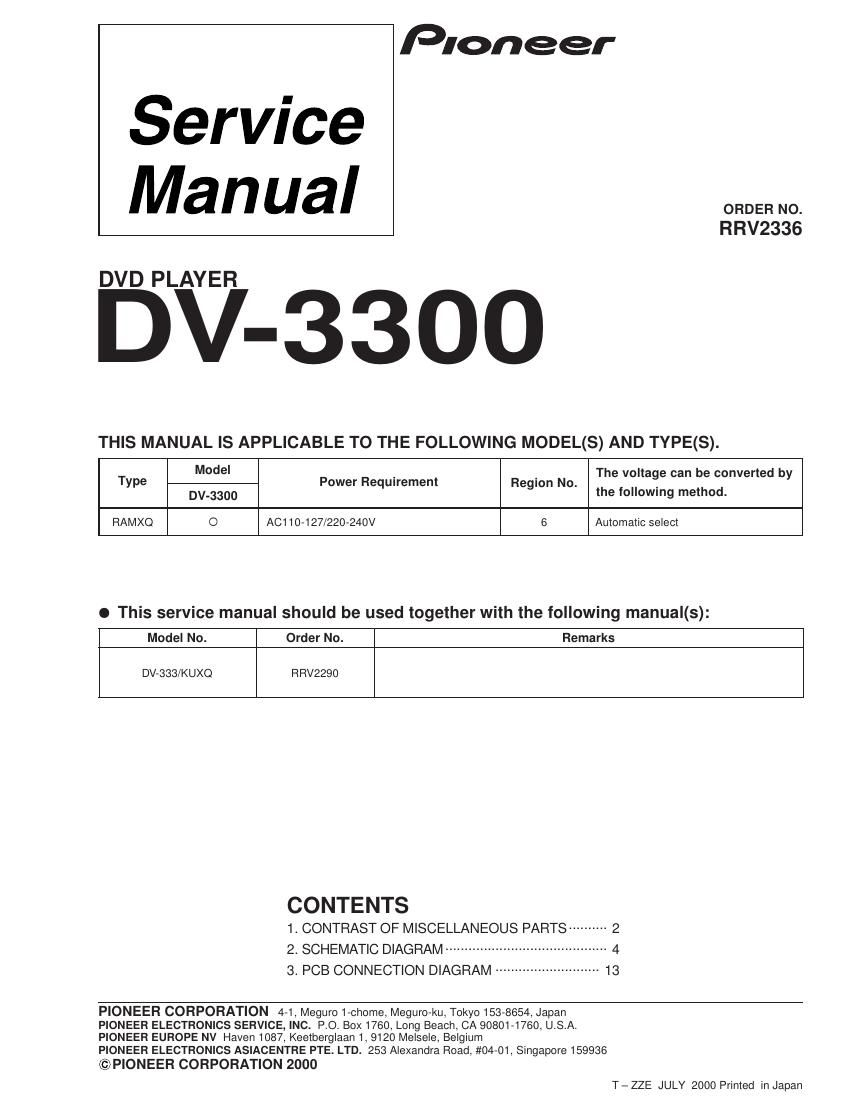

Page 1

Service
Manual

DVDPLAYER

DV-3300

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Pioneer

ORDERNO.
RRV2336

Model _ _ The voltage can be converted by
Type Power Reqmrement Region No. .
DV-3300 the followmg method.
RAMXQ o AC110-127/220-240V 6 Automatic select

o This service manual should be used together with the following manual(s):

3. PCB CONNECTION DIAGRAM

Model No. Order No. Remarks
DV-333/KUXQ RRV2290
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ---------- 2
2_ SCHEMATIC DIAGRAM ...................... 4

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000

T - ZZE JULY 2000 Printed in Japan

Page 2

DV-3300

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .' 0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manualfar the base model.
0 When ordering resistors, first convert resistance values into code form as shown in thefollowing examples.
Ex. 1 When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J: 5%, nndK: 10%).
560(2-56X10->561.
47kQ-> 47X103-> 473

.. RDI/4PU E m J
RDI/4PU E m E J

0.5Q->R50 RNZHEIIEK
IQ->1R0... RS1PE®@K
Ex. 2 When there are 3? eflective dig such a n high prec ion metalfilm resistors).
5.62kQ->562><10->5621 ........................................... RN1/4PCIIEEF
l CONTRAST TABLE
DV»3300/RAMXQ and DV-333/KUXQ are constructed the same except for the following:
Ref. , , Part No.
No. Mark Symbol and Description Remarks
DV-333/KUXQ DV-3300/RAMXO
PCB ASSEMBLIES
P5 - 1 DVDM Assy VWS1412 VWS1413
FLJB Assy VWM1991 VWM2051
P5 - 4 l-FLJB Assy VWV1748 VWV1782
P5 - 5 A POWER SUPPLY Unit VWR1327 VWR1330 (*1)
P5 - 5 iNSP POWER SUPPLY Unit VWR1328 VWR1331 (*1)
PACKING
P3 - 1 & Power Cord ADG7022 ADG7018
P3 - 9 Packing Case VHG1903 VHG1935
P3 -11 NSP Warranty Card ARY7045 ARY7046
P3 -13 Operating Instructions (English) VRB1244 Not used
P3 -13 Operating Instructions (Simp-Chinese) Not used VRC1113
EXTERIOR
P5 -12 Rear Panel VNA2174 VNA2196
P5 -13 Tray VNL1858 VNL1884
P5 -15 Pioneer Name Plate VAM1099 VAM1100
P5 -16 Tray Panel VNK4591 VNK4592
P5 -17 Front Panel Assy VXA2407 VXA2406
P5 -18 NSP Label VRW1629 Not used
P5 -19 NSP Pop Label VRW183O VRW1832
P5 -20 Bonnet S VXX2651 VXX2652
P5 -24 Screw BCZ40P060FZK BCZ40P060FNI
P5 -26 FL Lens VNK4593 VNK4734
Label Not used VRW1699 For Bonnet
Label Not used VRW1739 For Rear Panel

O For PCB assemblies, Refer to CONTRAST OF PCB ASSEMBLIES", PCB PARTS LIST", 2. SCHEMATIC DIAGRAM" and 3. PCB
CONNECTION DIAGRAM.
*I : As for POWER SUPPLY Unit, either VWR1330 or VWR133I is installed. Install VWR1330 when replacing the POWER SUPPLY Unit.
