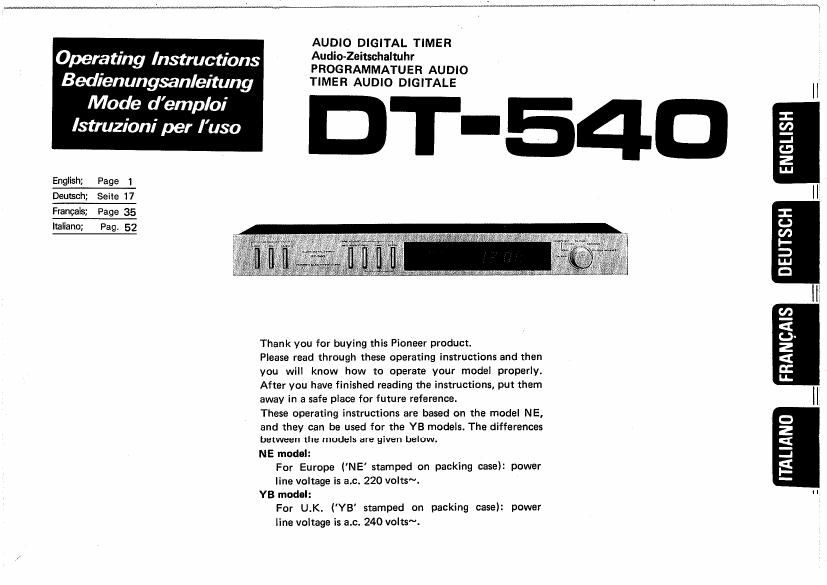

Pioneer dt 540 owners manual

Page 1

AUDIO DIGITAL TIMER

0 ratin In r ' Audio-Zeitschaltuhr
pe _ 9 St "-‚¬00, PROGRAMMATUER AUDIO
Bedlenungsanlelturyg TIMER AUDIO DIGITALE H
Mode demploi z
Istruzioni per Iuso - 9
_l
(a
Z
In
Page 1
Same 17 H
Franeais; Page 35 3:
lvaliano; Fag. 52 a
.-
3
LU
D

Thank you for buying this Pioneer product.
Please read through these operating instructions and then
you will know how to operate your model properly.
After you have finished reading the instructions, put them
away in a safe place for futUre reference.
These operating instructions are based on the model NE,
and they can be used for the YB models. The differences
between the models are given below.
NE model:
For Europe (NE' stamped on packing case): power
line voltage is 3.0. 220 volts~.
YB model:
For U.K. (YB' stamped on packing case): power
line voltage is a.c. 240 volte~.

Page 2

Before use ..
Application . . .
Connections .................... .........
Front panel facilities ............
Adjusting the present time

WOSO'I-bw

CONTENTS

Waking up to music/ unattended recording ..... 10
Dozing off to sleep with music ........ 12
Dozing off to sleep with music -> waking up to

music -> then leaving home . .14
Handling precautions ...... .. 15
Specifications ....... ....................... 16

To prevent electric shock, do not remove cover. No user ser-
viceable parts inside; refer servicing to qualified service personnel.
If the apparatus is fitted with AC main power outletIs), see REAR

PANEL FACILITIES for convenient connection of additional Hi-Fi

componentls).

Make all connections to the AC outletls) and the signal terminals
first. Connect the plug to the wall socket last; make sure that the
power switch is off.

Disconnect the wall plug when the equipment is not in regular use,
e.g. when on vacation.

FOR USE IN UNITED KINGDOM AND
AUSTRALIA

CAUTION 240 V: Mains supply voltage is factory

adjusted at 240 V.

IMPORTANT

FOR USE IN UNITED KINGDOM

Equipment sold in the U.K. is not supplied with a power
plug.
The wires in this mains lead are coloured in accordance with the
following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the ter»
minals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the ter-
minal which is marked with the letter L or coloured red.
