Page 1

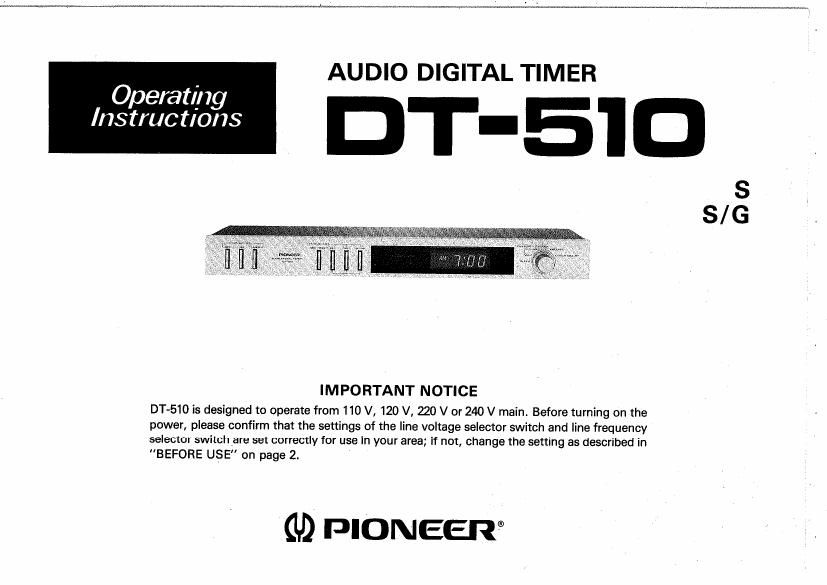

AUDIO DIGITAL TIMER
Operating
Instructions D I - 51 o
S

3/6

IMPORTANT NOTICE

DT-510 is designed to operate from 110 V, 120 V, 220 V or 240 V main. Before turning on the
power, please confirm that the seflings of the line voltage selector switch and line frequency
selector switch are set correctly for use in your area; if not, change the setting as described in
BEFORE USE on page 2.

(U) PIONEER"

Page 2

Before Use ............................................... 2
Application

Connections .. .. .. .. 5
Front Panel Facilities ............... 6
Adjusting the Present Time .................. 8
Waking up to Music/Unattended

Recording ............................................... 10

CONTENTS

Dozing off to Sleep with Music ..................... 12
Dozing off to Sleep with Music -> Waking

up to Music -> Then Leaving Home ............... 14
Handling Precautions ................................. 15
Specifications .......................................... 16

BEFORE USE

Before plugging the power cord into the wall socket, please
confirm that the settings of the line voltage selector switch
and line frequency selector switch are set correctly for use in
your area. If they are not set properly, change the settings as
follows.

LINE VOLTAGE SELECTOR SWITCH (Fig. A)

Before adjusting, disconnect the power cord.

1. Prepare a medium size screwdriver.

2. Insert the screwdriver into the arrow on the voltage selec-
tor and adjust so that the tip of the arrow points to the
voltage value of your area.

REAR PANEL FACILITIES

Line voltage selector switch AC outlets

Di -?

Power cord

VOLTAGE SE£CTDR

@

Fig. A
