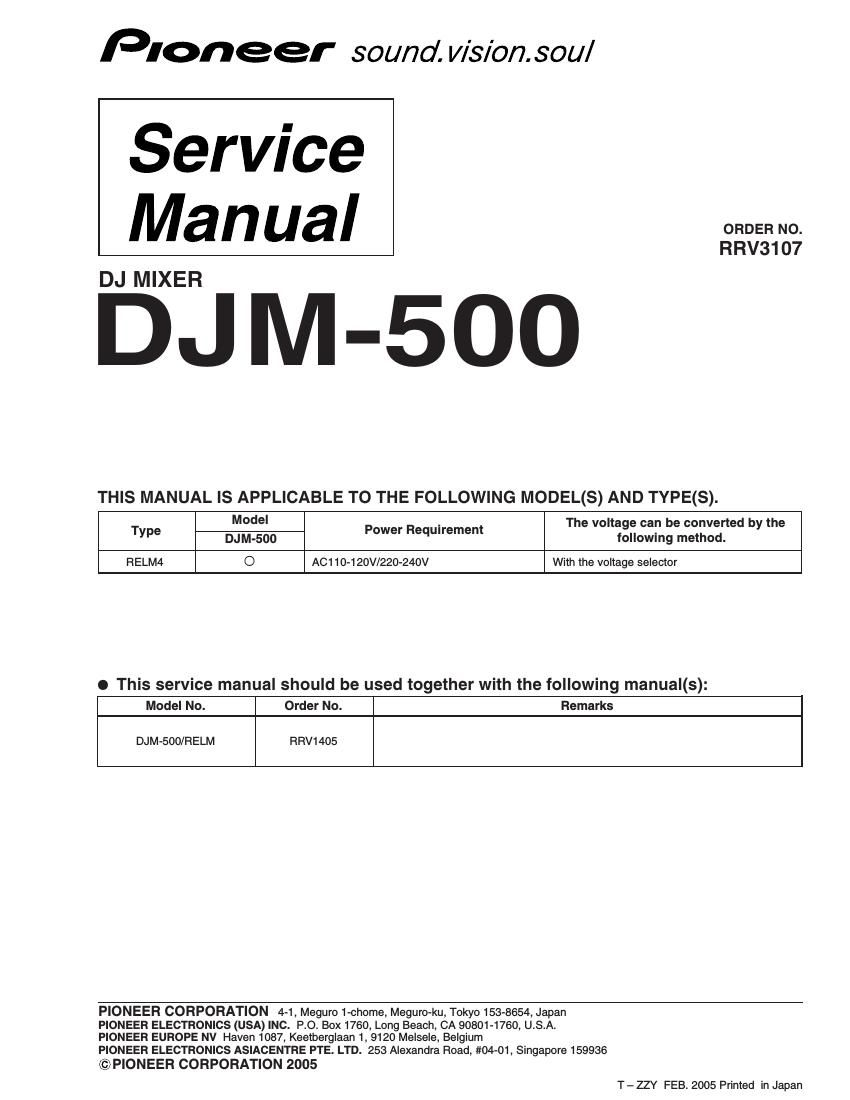

Pioneer sound. vision. soul
Service
Manual
DJ MIXER
ORDER NO.
RRV3107
DJ M-500
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
T e Model Power Re uirement The voltage can be converted by the
VP DJM-soo q following method.
RELM4 O AC110-120V/220-240V With the voltage selector
0 This service manual should be used together with the following manual(s):
Model No.
Order No.
Remarks
DJM-SOO/RELM
FIRV1405
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. FLO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2005
T - ZZY FEB. 2005 Printed in Japan
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES: OParts marked by "NSP are generally unavailable because they are not in our Master Spare Parts List
0 The A mark found on some component parts indicates the importance of the safety factor of the part
Therefore, when replacing, be sure to use parts of identical designation
0 Screws adjacent to V mark on product are used for disassembly.
0 Reference Nost indicate the pages and Nost in the service manual for the base model
I When ordering resistors, first convert resistance values into code form as shown in the following examples
Ext] When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%)t
560 a 56 X 10I 4 561
47k a 47X 105 - 473
05 4 R50 --
1 a 1R0 -RS1P-®@K
Ex.2 When there are 3 eflective digits (such as in high precision metalfilm resistors)
562k a 562 X 101 4 5621 -------------------------------- RN1/4PC- IF
l CONTRAST TABLE
DJM-500/RELM4 and DJM-SOO/RELM are constructed the same except for the following :
Part No.
Ref. No. Mark S mbol and Descri tion Remarks
V " DJM-500/ DJM-sow
RELM RELM4
PCB ASSEMBLIES
NSP DSP ASSY DWX1786 DWX2464
P 4 - 8 L TERMINAL ASSY DWZ1076 DWZ1148
NSP VR Assy DWM2057 DWM2210
P4 - 10 NSP - PHONE JACK ASSY DWZ1057 DWZ1144
P4 - 11 NSP MIC JACK ASSY DWZ1066 DWZ1145
NSP SUB Assy DWM2058 DWM2211
P4 - 20 NSP BAL.OUT ASSY DWZ1059 DWZ1147
P4 - 21 PHONE ASSY DWZ1077 DWZ1146
PACKING
P3 - 8 Polyethylene Bag (0.03 x 230 x 340) 221-038 Not used
P3 - 8 Polyethylene Bag (0.06 x 230 x 340) Not used AHG7117
IEC 65-6 Caution Not used ARM7067 For Accessories
EXTERIOR
P4 - 35 Label DRW1739 DRW2268
P4 - 57 Display Panel A DAH2095 DAH2177
P4 - 59 Display Panel B DAH2096 DAH2178
P4 - 116 NSP Cord Clamper FINE-513 Not used
0 For PCB ASSEMBLIES. Refer to CONTRAST OF PCB ASSEMBLIES
2
DJM-500
1 I 2 I 3 I 4
