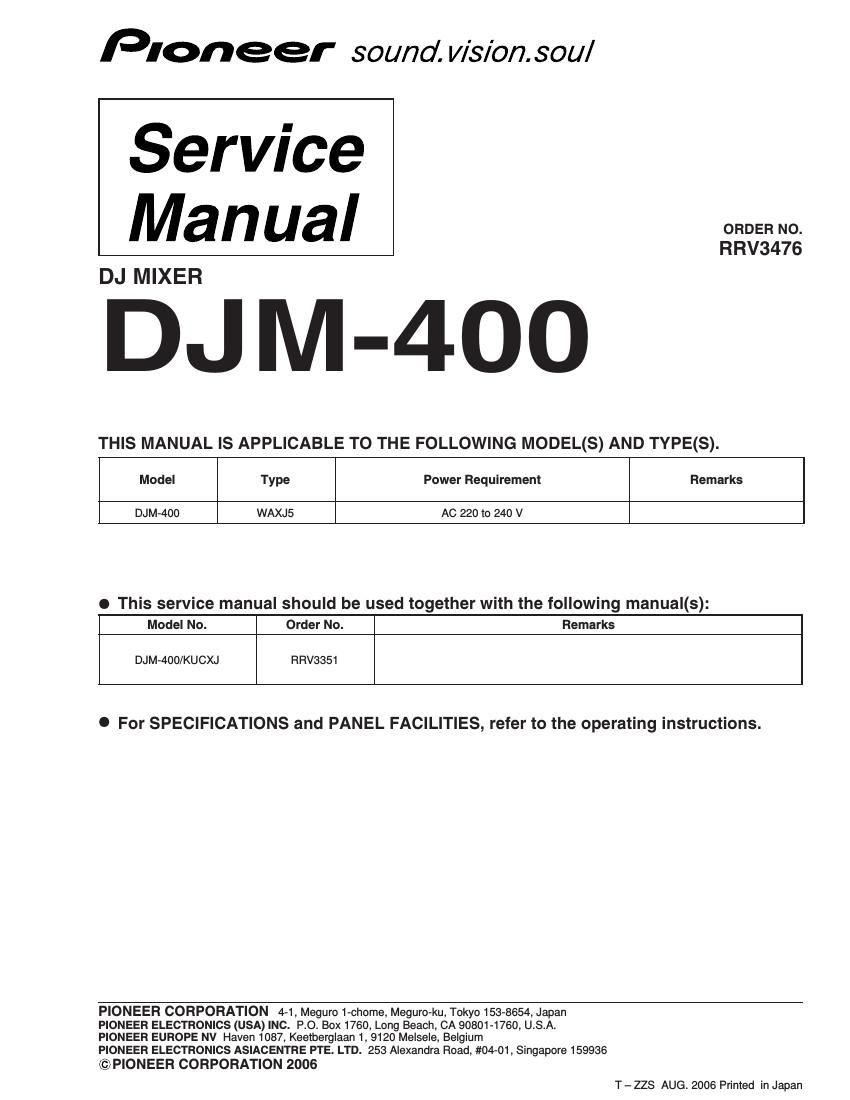

Pioneer djm 400 service manual

Page 1

2 1 23 4 1234 C D F A B E DJM-400 CONTRAST OF PCB ASSEMBLIES JACK ASSY F B Mark Symbol and DescriptionPart No. Remarks DWX2666DWX2665 AC Inlet 1P XKP3042 XKP3041 DWX2665and DWX2666 are constructed the same except for the following : 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 -„¦-†’56 × 10 1 -†’561........................................................RD1/4PU 5 6 1 J 47k -„¦-†’47 × 10 3 -†’473........................................................RD1/4PU 4 7 3 J 0.5 -„¦-†’R50.....................................................................................RN2H R 5 0 K 1 -„¦-†’1R0.....................................................................................RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k -„¦-†’562 × 10 1-†’5621......................................................RN1/4PC 5 6 2 1 F CONTRAST TABLE Ref.Part No. No.Mark Symbol and Description DJM-400 DJM-400Remarks /KUCXJ /WAXJ5 PCB ASSEMBLIES SUB Assy DWM2291 DWM2290 P9-2 Jack Assy DWX2666 DWX2665-ˆ—1 PACKING SECTION P7-1 Power Cord ADG7021 ADG7079 P7-2 Operating Instructions (English) DRB1405 Not used P7-2 Operating Instructions (English, Chinese) Not used DRB1408 P7-5 NSP Warranty Card ARY7043 Not used P7-12 Packing Case DHG2605 DHG2608 NSP Serial Label DRW2311 VRW1629 EXTERIOR SECTION P9-7 Power TransfomerDTT1201 DTT1202 P9-21 NSP Rear Panel DNC1784 DNC1786 P9-36 NSP Label DRW1975 Not used P9-37 NSP FCC, Class B Label DRD2300 Not used NSP CCC S&E Label Not used DRW2310 DJM-400/WAXJ5 and DJM-400/KUCXJ are constructed the same except for the following : -ˆ—1 : Refer to 7 CONTRAST OF PCB ASSEMBLIES
