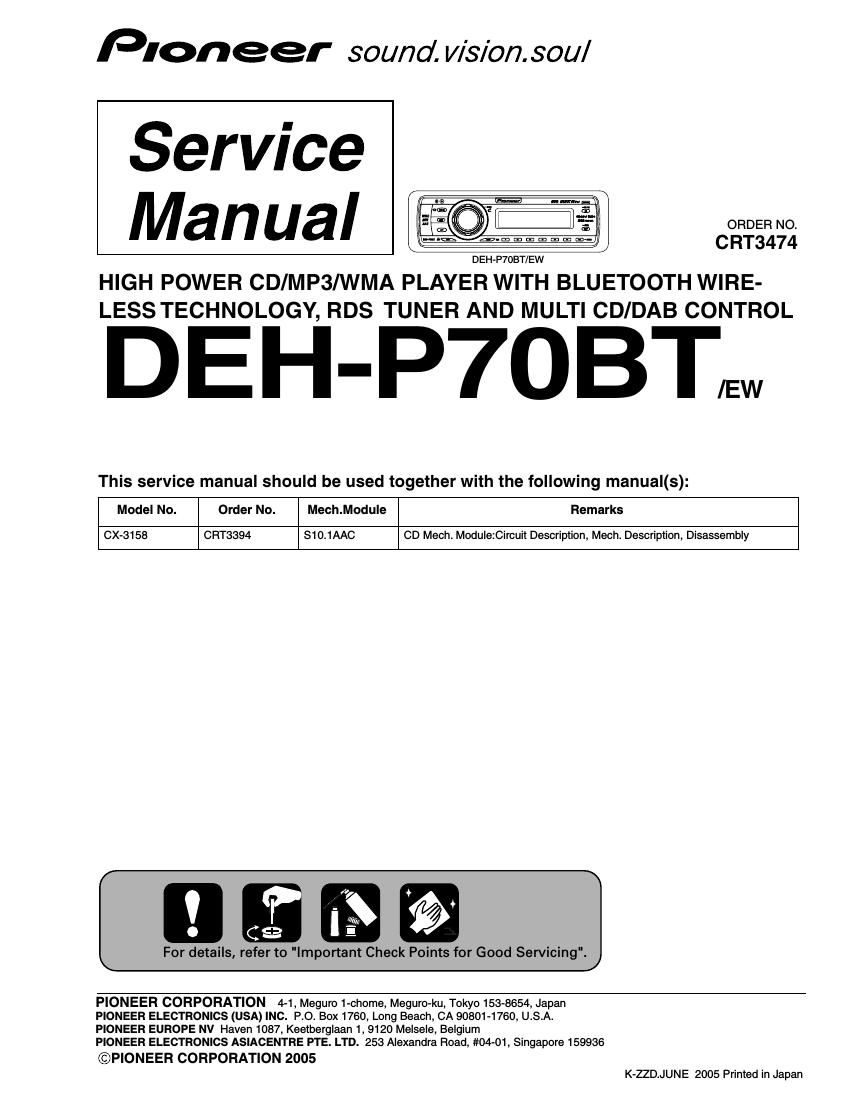

Pioneer dehp 70 bt service manual

Page 1

DEH-P70BT/EW 2 1234 1234 C D F A B E SAFETY INFORMATION Safety Precautions for those who Service this Unit. - Follow the adjustment steps in the service manual when servicing this unit. When check - ing or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. On the top of the player. CL ASS 1 L ASER PRODUCT WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length : 785~814nm Maximum output : 1190µW(Emitting period : unlimited) Additional Laser Caution Transistors Q101 in PCB drive the laser diodes. When Q101 is shorted between their terminals, the laser diodes will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. VARNING: KLASS 1M OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPEN. TITTA INTE DIREKT IN MED OPTISKA INSTRUMENT. VARO: SÄTEILEE LUOKAN 1M NÄKYVÄÄ LASERSÄTEILYÄ AVATTUNA. ÄLÄ KATSO SUORAAN SISÄLLE OPTISILLA LAITTEILLA. ADVARSEL: KLASSE 1M USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE PÅ STRÅLEN MED OPTISKE INSTRUMENTER. ATTENTION: RADIATION LASER INVISIBLE DE CLASSE 1M SI LAPPAREIL EST OUVERT. NE REGARDEZ PAS DIRECTEMENT AVEC UN INSTRUMENT DOPTIQUE. VORSICHT: UNSICHTBARE LASERSTRAHLUNG KLASSE 1M BEI ÖFFNUNG. NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN BETRACHTEN. CAUTION : CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.

Page 2

DEH-P70BT/EW 3 5678 567 8 C D F A B E - CD Section Precaution 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY". 4. After replacing the pickup unit, be sure to check the grating. CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions.
