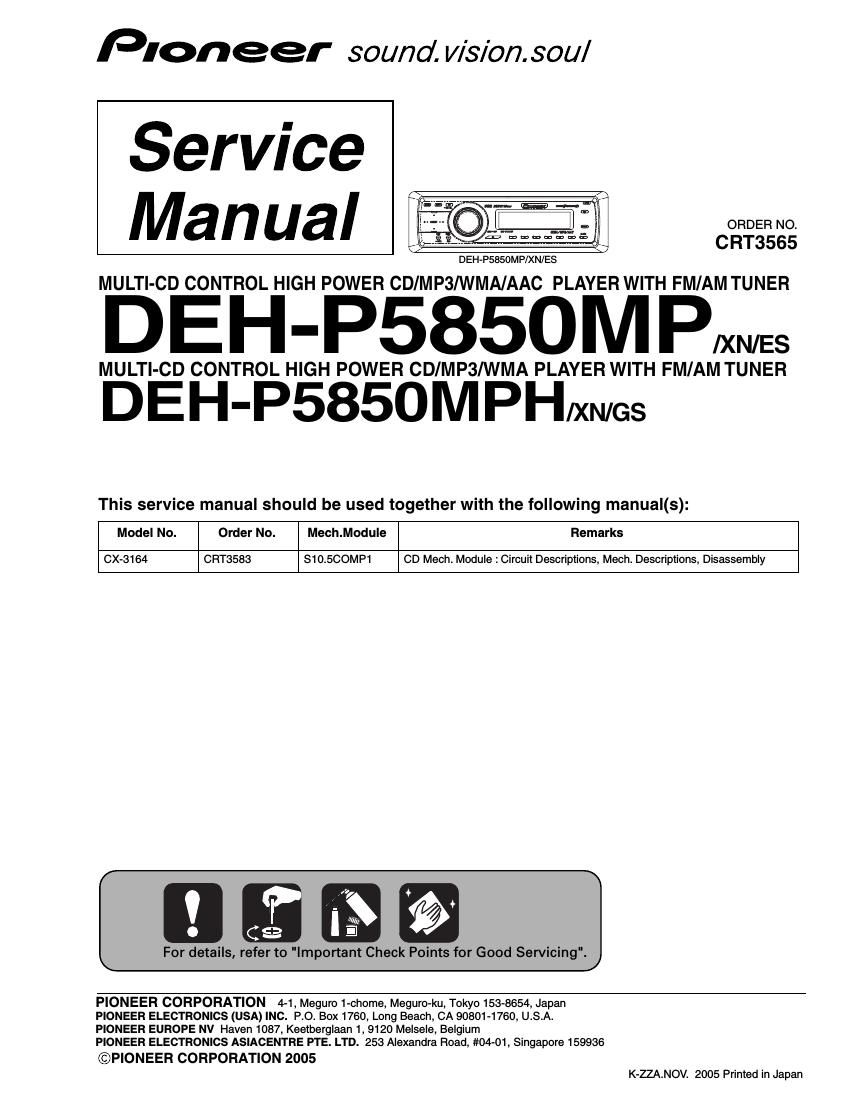

Pioneer sound. vision. sou/

$Mw
Manual

MULTI-CD CONTROL HIGH POWER CD/MP3NVMA/AAC PLAYER WITH FM/AM TUNER

D E H' P5850M P/XN/ES

MULTI-CD CONTROL HIGH POWER CD/MP3NVMA PLAYER WITH FM/AM TUNER

DEH-P5850MPH/XN/Gs

ORDER NO.

CRT3565

DEHiPSBSOMP/XN/ES

This service manual should be used together with the following manual(s):

Model No. Order No. Mech.Module Remarks

CX-3164 CRT3583 S10.SCOMP1 CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly

89"

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

CCDPIONEER CORPORATION 2005
K-ZZA.NOV. 2005 Printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it»yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

CAUTION
Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type recommended by the manufacture.
Discord used batteries according to the manufacture's instructions.

. CD Section Precaution n

I. You should conform to the regulations governing
the product (safety, radio and noise, and other
regulations), and should keep the safety during
servicing by following the safety instructions
described in this manual.

2. Before disassembling the unit, be sure to turn off
the power. Unplugging and plugging the connectors
during power-on mode may damage the le inside
the unit.

3. To protect the pickup unit from electrostatic discharge
during servicing, take an appropriate treatment
lshorting»solder) by referring to "the DISASSEMBLY".

4. After replacing the pickup unit, be sure to check the
grating.

.hmwmw
DIGITAL AUDIO DIGI'IAL AUDIO

TEXT

DEH-P5850MP/XN/ES
1 I 2 3 I 4
