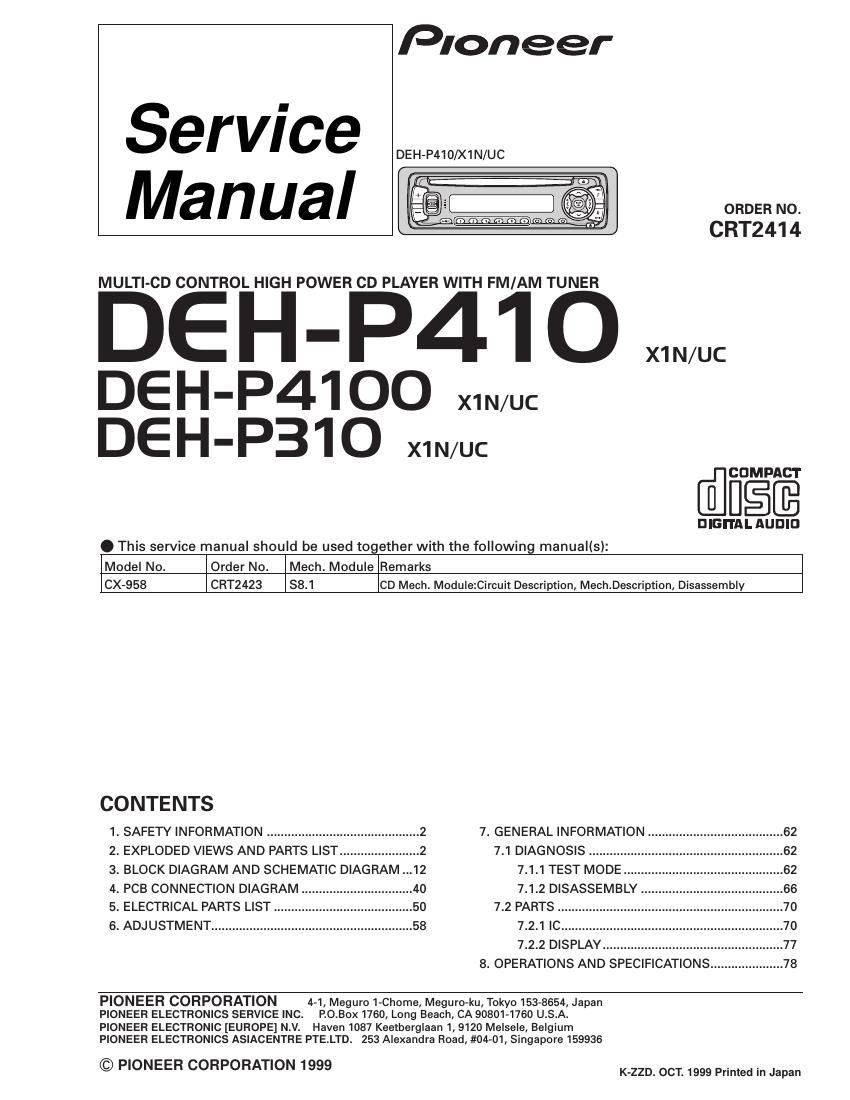

Page 1

2 DEH-P410,P4100,P310 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 66). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 58). CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 20 19 15 12 16 17 4 7 11310 98 6 5 2 14 18 13 1

Page 2

-Owners Manual Model Part No. Language DEH-P410/X1N/UC CRD3065 English, French DEH-P4100/X1N/UC CRD3062 English, French DEH-P310/X1N/UC CRD3065 English, French -Installation Manual Model Part No. Language DEH-P410/X1N/UC CRD3066 English, French DEH-P4100/X1N/UC CRD3064 English, French DEH-P310/X1N/UC CRD3067 English, French 3 DEH-P410,P4100,P310 1 Cord Assy CDE6234 * 2 Accessory Assy CEA2395 3 Spring CBH1650 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG1173 13 Battery See Contrast table(2) 14 Carton See Contrast table(2) 15 Contain Box See Contrast table(2) 16 Protector CHP2251 17 Protector CHP2252 18 Remote Control Unit See Contrast table(2) 19 Case Assy CXB3520 20-1 Owners Manual See Contrast table(2) * 20-2 Label CRW1343 20-3 Installation Manual See Contrast table(2) * 20-4 Warranty Card See Contrast table(2) 20-5 Polyethylene Bag CEG1116 * 20-6 Card See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. Part No. Mark No.Symbol and Description DEH-P410/X1N/UC DEH-P4100/X1N/UC DEH-P310/X1N/UC 13 Battery CEX1030 CEX1030 Not used 14 Carton CHG3875 CHG3874 CHG3880 15 Contain Box CHL3875 CHL3874 CHL3880 18 Remote Control Unit CXB4285 CXB4285 Not used 20-1 Owners Manual CRD3065 CRD3062 CRD3065 20-3 Installation Manual CRD3066 CRD3064 CRD3067 * 20-4 Warranty Card CRY1070 Not used CRY1070 * 20-6 Card Not used ARY1048 Not used (2) CONTRAST TABLE DEH-P410/X1N/UC, DEH-P4100/X1N/UC and DEH-P310/X1N/UC are constructed the same except for the following:
