Pioneer dehm 6106 zh service manual

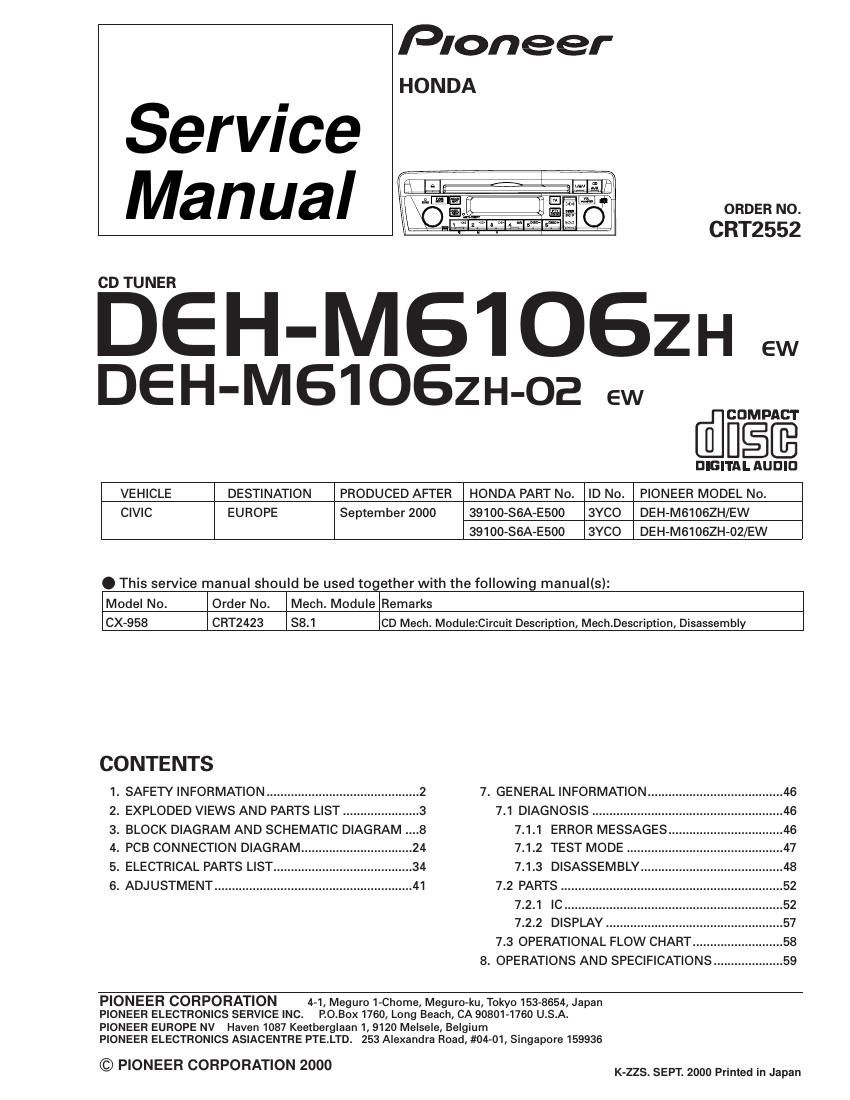

Page 1

Pioneer
HONDA

Service
Manual

CD TUNER

DEH-M61062H .w

DEH-M61OSZH-oa ew

ORDER NO.

CRT2552

[EEEE

DIGITAL AUDIO
VEHICLE DESTINATION PRODUCED AFTER HONDA PART NO. ID No. PIONEER MODEL N0.
CIVIC EUROPE September 2000 39100-86A-E500 3YCO DEH-M61062H/EW
39100-86A-E500 3YCO DEH-M61OBZH-02/EW

. This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks
CX-958 CRT2423 88.1 CD Mech. Module:Circuit Descriplion, Mech.Descripti0n, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................ 2 7. GENERAL INFORMATION ....................................... 46
2. EXPLODED VIEWS AND PARTS LIST ...................... 3 7.1 DIAGNOSIS ......................
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ....8 7.1.1 ERROR MESSAGES
4. PCB CONNECTION DIAGRAM 7.1.2 TEST MODE .....
5. ELECTRICAL PARTS LIST. 7.1.3 DISASSEMBLY.
6. ADJUSTMENT .............. 7.2 PARTS ........................
7.2.1 lC ..........
7.2.2 DISPLAY.
7.3 OPERATIONAL FLOW CHART .......................... 58
8. OPERATIONS AND SPECIFICATIONS .................... 59

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 USA.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936

© PIONEER CORPORATION 2000 K-ZZS. SEPT. 2000 Printed in Japan

Page 2

DEH-M61OGZH.M61OGZH-02

. CD Player Service Precautions

|. For pickup unit(CXX1285) handling, please refer 2. During disassembly, be sure to turn the power off
to"Disassembly"(see page 48) since an internal IC might be destroyed when a con-
During replacement, handling precautions shall be nector is plugged or unplugged.
taken to prevent an electrostatic dischargelprotection 3. Please checking the grating after changing the ser-
by a short pin). Vice pickup unit(see page 43).

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do»it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.

1. Safety Precautions for those who Service this Unit.
- When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.

Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

2. A CLASS 1 LASER PRODUCT" label is affixed to the 3. The triangular label is attached to the mechanism
top of the player. unit frame.

CLASS 1
LASER PRODUCT

4. Specifications of Laser Diode

Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
