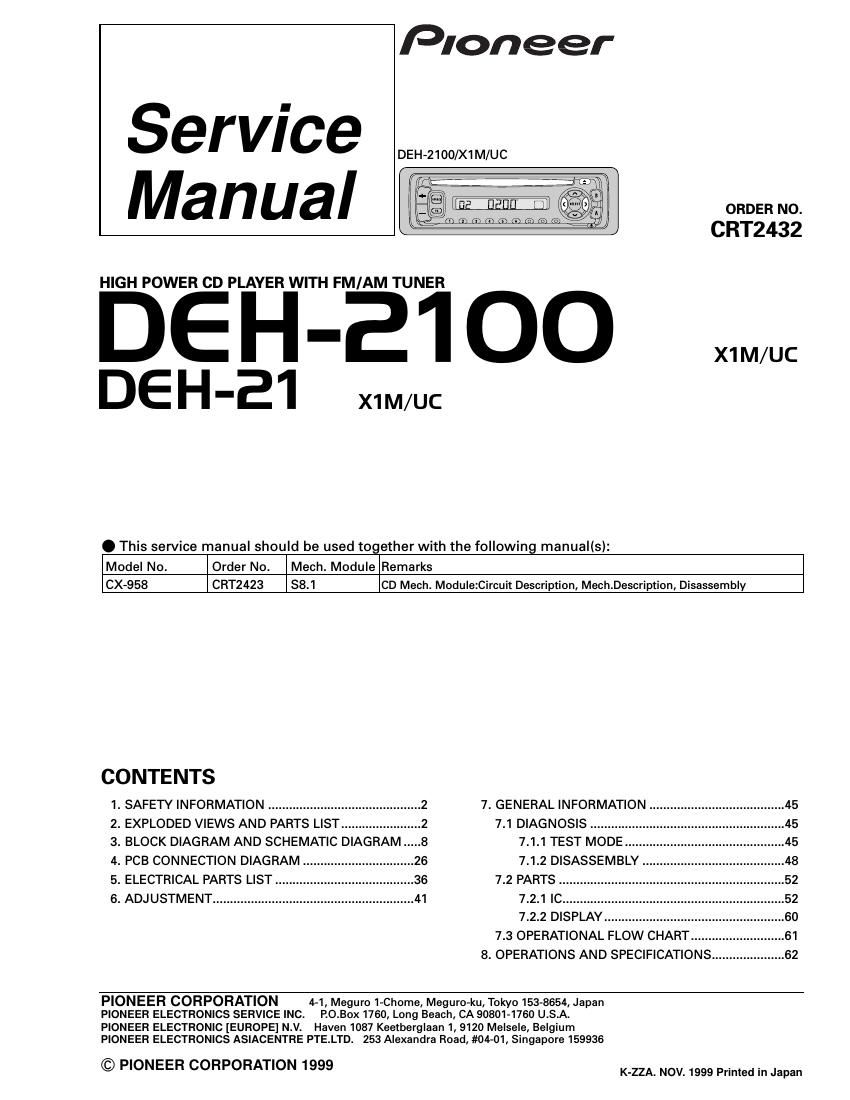

Pioneer deh 2100 service manual

Page 1

2 DEH-2100,21 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 48). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 43). 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 14 116 10 121315 11 5 928 76 4 3 CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION

Page 2

3 DEH-2100,21 1 Cord Assy CDE6125 2 Spring CBH1650 3 Screw CBA1002 * 4 Polyethylene Bag CEG-127 5 Screw CRZ50P090FMC 6 Screw TRZ50P080FMC * 7 Polyethylene Bag CEG-158 8 Handle CNC5395 9 Bush CNV3930 10 Polyethylene Bag CEG117311-1 Polyethylene Bag CEG1116 11-2 Owners Manual CRD3133 11-3 Installation Manual CRD3134 * 11-4 Card ARY1048 12 Carton See Contrast table(2) 13 Contain Box See Contrast table(2) 14 Protector CHP2243 15 Protector CHP2244 16 Case Assy See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to -ˆ‡mark on the product are used for disassembly. Part No. Mark No.Symbol and Description DEH-2100/X1M/UC DEH-21/X1M/UC 12 Carton CHG3947 CHG3948 13 Contain Box CHL3947 CHL3948 16 Case Assy CXB3520 Not used (2) CONTRAST TABLE DEH-2100/X1M/UC and DEH-21/X1M/UC are constructed the same except for the following: -Owner's Manual, Installation Manual Model Part No. Language DEH-2100/X1M/UC CRD3133 English, French, Spanish DEH-21/X1M/UC CRD3134
