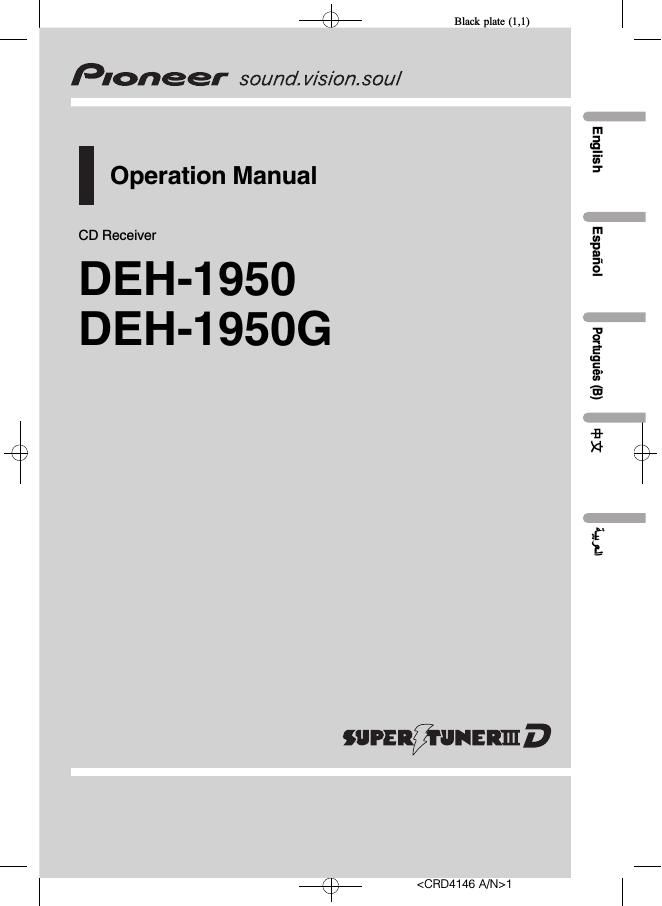

Pioneer DEH 1950 Owners Manual

Page 1

Black plate (2,1) Thank youfor buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man- ual in a safe place for future reference. Before You Start About this unit 3 Visit our website 3 Protecting your unit from theft 3 Removing the front panel 3 Attaching the front panel 3 Operating this unit Whats What 4 Head unit 4 LCD display 5 Basic Operations 5 Turning the unit on and selecting a source 5 Adjusting the volume 5 Turning the unit off 5 Tuner 5 Listening to the radio 5 Storing and recalling broadcast frequencies 6 Tuning in strong signals 6 Storing the strongest broadcast frequencies 6 Built in Player 6 Playing a disc 6 Repeating play 6 Playing tracks in random order 7 Scanning tracks of a CD 7 Pausing disc playback 7 Audio Adjustments 7 Using balance adjustment 7 Using the equalizer 7 Adjusting equalizer curves 8 Adjusting loudness 8 Adjusting source levels 8 Other Functions 8 Adjusting initial settings 8 Setting the clock 8 Setting the FM tuning step 9Setting the AM tuning step 9 Switching the auxiliary setting 9 Additional Information Error messages10 Handling guideline of discs and player 10 Dual Discs 10 Specifications 12 2 Contents En 2

Page 2

Black plate (3,1) About this unit CAUTION !Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, this unit damage, smoke, and overheat could result from contact with liquids. ! Keep this manual handy as a reference for op erating procedures and precautions. ! Always keep the volume low enough so that you can hear sounds from outside the vehicle. ! Protect this unit from moisture. ! If the battery is disconnected or discharged, the preset memory will be erased and must be reprogrammed. ! If this unit does not operate properly, contact your dealer or nearest authorized Pioneer Ser vice Station. Visit our website Visit us at the following site: !We offer the latest information about Pio neer Corporation on our website. Protecting your unit from theft The front panel can be detached to deter theft. Important ! Handle gently when removing or attaching the front panel. ! Avoid subjecting the front panel to excessive shocks. ! Keep the front panel out of direct sunlight and high temperatures. Removing the front panel 1 Press DETACH to release the front panel. 2 Grab the front panel and remove. 3 Put the front panel into provided pro- tective case for safe keeping. Attaching the front panel 1 Slide the front panel to the left until it clicks. Front panel and the head unit are jointed on the left side. Make sure that the front panel has been jointed to the head unit. 2 Press the right side of the front panel until it is firmly seated. #If you can t attach the front panel to the head unit successfully, try again. Front panel may be damaged if you attach the front panel forcedly. 3 Before You Start En 3 English Section 01
