Pioneer cx 3268 service manual

This is the 32 pages manual for pioneer cx 3268 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 32
left right

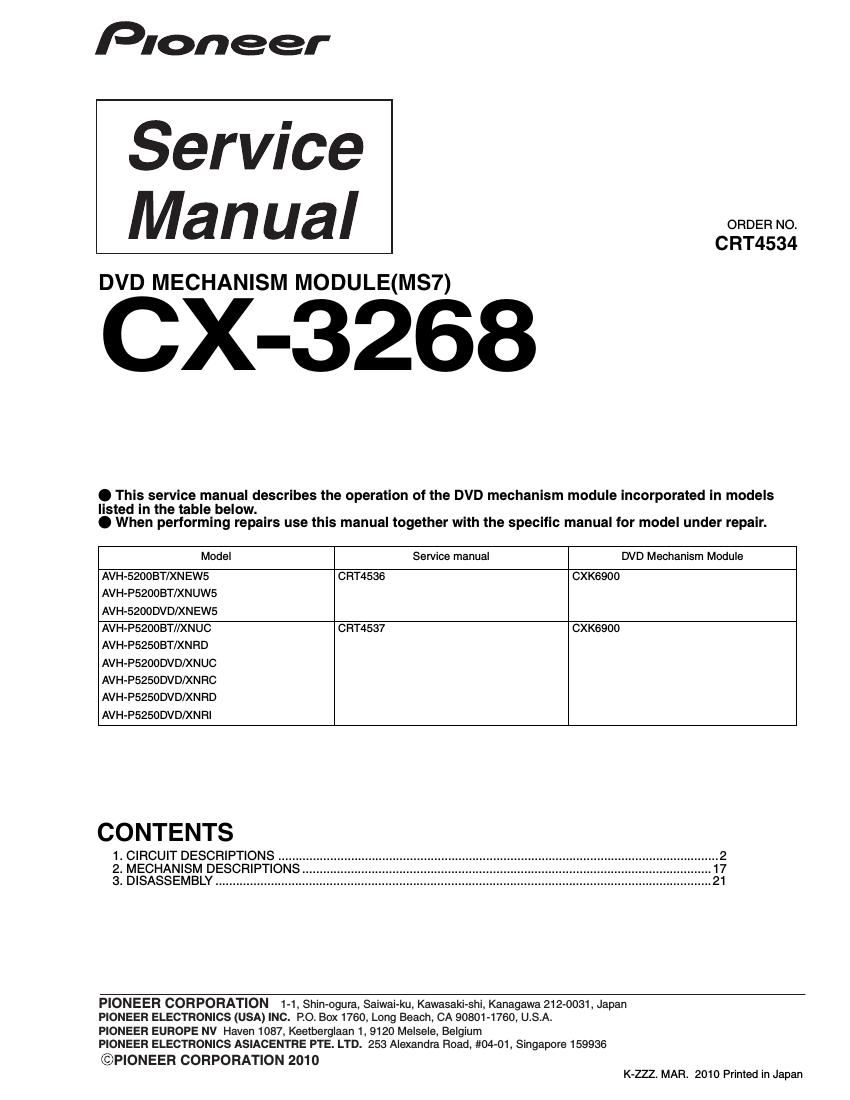

pioneer cx 3268 service manual

Extracted text from pioneer cx 3268 service manual (Ocr-read)


Page 1

CX-3268 2 1234 1234 C D F A B E 1. CIRCUIT DESCRIPTIONS DV5U Chip (MN2DS0018MAUB : IC1501) 2.2 2.2 2.2 2.2 14 24 25 103 104 105 106 2.2 2.2 2.2 2.2 CDMPD DVDMP 78 LD (CD) 65 LD (DVD) 15 MN2DS0018MAUB is 1-chip LSI for DVD-Player. The DVD-Player system can be\ constructed by connecting this LSI with driver IC, SDRAM, Flash-ROM, and Audio-DAC etc. This LSI has the front end part (SODC / FE) for carrying out RF signal\ processing / servo processing / decode processing, the AV decoder part (backend / BE) for carrying out video \ decode processing of MPEG1 / MPEG2 / JPEG etc. and audio decode processing of DVD-Audio / Dolby Dijital2 / DT\ S / MP3 etc., and the system controller for controlling the system built-in. The front end part realizes various processing such as optical head sign\ al arithmetic processing, RF signal processing, digital signal processing of DVD standard-compliant DVD-ROM play (16-8 \ demodulation, error correction), digital signal processing of CD-DA / CD-ROM (error correction), AV decoder tra\ nsfer, servo control, spindle motor control, and seeking control. With MN2DS0018MAUB, the waveform of servo system of front end such as FE\ , TE, AS cannot be seen in a same way as DVD mechanism module (LS1) CX-3250. Keep it in mind. 1.1 Analog block (MN2DS0018MAUB : IC1501) 1 Front end part (MN2DS0018MAUB : IC1501) The functions of analog block are as below: 1. Reference power supply circuit 2. SERVO system / DPD system signal processing circuit Gain switching amplifier and Low Pass Filter (LPF) 3. RF signal processing circuit RF adder circuit, in-lining circuit, Variable Gain Amplifier (VGA) cir\ cuit 4. Laser power control (LPC) circuit 5. A/D converter for SERVO (10bit), DPD system comparator, PWM 1.1.1 APC circuit The optical output of laser diode (LD) has a large negative temperatur\ e character. Consequently, if LD is driven at the rated current, a constant optical o\ utput cannot be obtained. APC circuit is the circuit for controlling the current so that the outpu\ t becomes constant for the monitor diode (MD). MN2DS0018MAUB has two types of APC circuit for DVD and CD built-in. In case of DVD (CD), the LD current can be obtained by dividing the vo\ ltage measurement value between DVDLD1 (CDLD1) and 5 V by 8.8 ohm (2.2 ohm x 4 = 8.8 ohm). In case o\ f DVD (CD), the LD current becomes approximately 45 mA (40 mA). The voltage difference between DV\ DLD1 (CDLD1) and 5 V will be 396 mV (352 mV). PU unit

Page 2

CX-32683 5 678 56 7 8 C D F A B E After 10bit ADC 12 11 FE2 FE1 CN1101 115 116 VIN7 VIN8 Selector LPF 50k Hz Input AMP Buffer LPF LPF 50k Hz G=0dB Buffer AMP ADC drive AMP Gain switching 6/7.5/9/10.5/ 12/13.5/15/ 16.5/18/19.5d ADC Selector ADC Gain switching 3dB, 9dB Gain switching -6dB, 0dB, 9 5dB DV5U Chip FE1 FE2 FE signal generation circuit + - 1+Pfbal0,1/0x0100 1-Pfbal0,1/0x0100 Offset cancel Fbal coarse adjustment value FE AMP DV5U Chip 1.1.2 FE generation circuit Focus error (FE) generation circuit The signals FE1 and FE2 from PU are AD-converted in IC1501 and imported.\ Then, the differential is taken by taking the offset cancel into account and it becomes FE. FE = (FE1) - (FE2)
