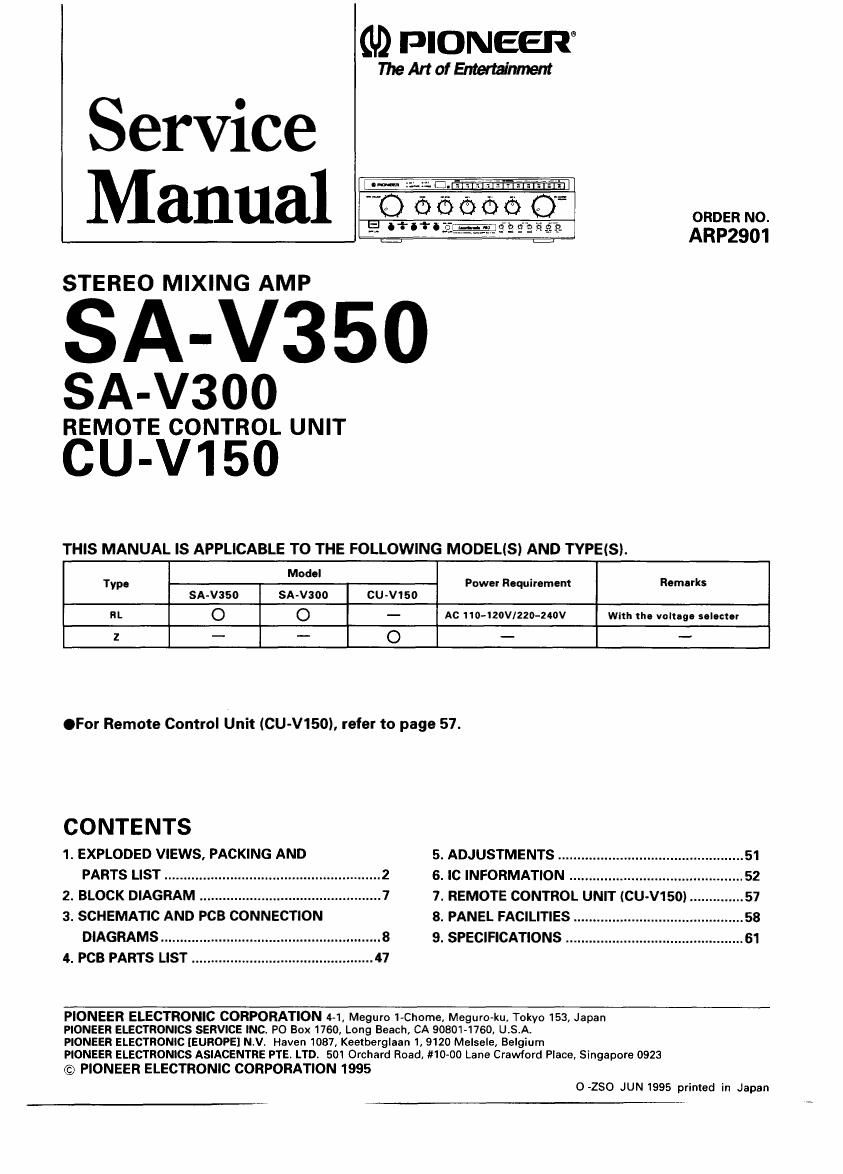

Service
Manual

L ._ , __ __ .. _, ORDER NO.
g: *'-O-~~-'=---:3 WE? ARP2901
STEREO MIXING AMP
ElthEGONTRa. UNIT
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELISI AND TYPEISI.
Typo MN, Powar Requirement Remarks
SA-V350 SA-Vaoo CU-vrso
an. O O - Ac 11o-Izov1220-zaov wnh m. vomg- mum
z - -- O - -

.For Remote Control Unit (CU-V150). refer to page 57.

C O NTE NTS
1. EXPLODED VIEWS, PACKING AND 5. ADJUSTMENTS ........
PARTS LIST ........................................................ 2 6. IC INFORMATION .
2. BLOCK DIAGRAM ............................................... 7 7. REMOTE CONTROL UNIT (CU-V150)
3. SCHEMATIC AND PCB CONNECTION 8. PANEL FACILITIES .................................
DIAGRAMS ..................... 8 9. SPECIFICATIONS .............................................. 61
4. PCB PARTS LIST ........... 47

PIONEER ELECTRONIC CORPORATION 4-1, Meguru 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO Box 1760, Long Beach, CA 90801-1760. U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, 10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1995
0-280 JUN 1995 printed in Japan

Page 2

SA-V350. SA-V300

1. EXPLODED VIWES, PACKING AND PARTS LIST

NOTES:

. Parts marked by NSP are generally unavailable because they are not in our Master Spare Parts List.

- The A mark found on some component parts indicates the importance 0f the safety factor of the part. Therefore, when replacing,
be sure to use pans of identical designation.

- Parts marked by © " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

Parts List (for SA-V350/RL and SA-V300lRLI

Mark No. Description Part: No. Mark No. Description Part: No.
1 FRONT PANEL (101 SA-V350) BMB1022 40 SCREW PMZ30POSOFMC
1 FRONT PANEL (Ior SA-V300) BMB1023
2 D1601 DIODE (SA-V350 only) D3SBA20 NSP 41 PANEL STAY BND1072
A 3 C301 (0.01/AC400) ACG1003 NSP 42 SW STAY BNG1197
A 4 POWER TRANSFORMER BTS1001 NSP 43 SHIELD CASE(MET) BNK1072
(10v SA-V350) NSP 44 SHIELD COVER(MET) BNK1073
A 4 POWER TRANSFORMER BTS1002 45 PVC PANEL BAK1088
(for SA-VSOO)
5 TERMINAL AKE-039 46 PANEL BAK1092
47 PUSH KNOB(PLS) AAD4086
A 6 FUSE FU6 (T160mA/250V) AEK»501 48 VOLUME KNOB L BAB1005
A 7 FUSE FU7 (T400mA/250V) AEK-504 49 TONE VOLUME KNOB BAB1006
A B FUSE FU4, FU5 (T1 A/ZSOV) AEK-SOB 50 MIC VOLUME KNOB(PLS) BAB1007
A 9 FUSE FU1, FU2 (T3.15A/250V) AEK-513
(for SA-V350)) 51 MIC VOLUME KNOB(PLS) BAB1008
A 9 FUSE FU1, FU2 (T2A/25OV) AEK-511 52 KEY CON TOP BAD1085
(for SA~V300) 53 KEY CON TOP BAD1087
A 10 AC POWER CORD ADG1127 54 ECHO KNOB BAD1089
55 BONNET CASE BNE1045
11 FLEXIBLE CABLE ADD1131
12 FLEXIBLE CABLE ADD1132 56 OPERATING INSTRUCTIONS BRA1107
13 FAN MOTOR (for SA-VSSO) AXM1022 (English, Chinese)
13 DC FAN MOTOR (for SA-V300) AXM7003 57 AC POWER CORD ADE-044
14 CHASSIS BNA1096 58 PACKING SHEET AHG1038
15 REAR PANEL BNC1083 59 PAD A BHA1101
60 PAD B BHA1102
17 FOOT (PLASTIC) AEC-672
NSP 18 GROUND PLATE ANK1155 61 PACKING CASE (Ior SA»V350) BHD1308
NSP 19 GROUND PLATE ANK1156 61 PACKING CASE (Ior SA-VaOO) BHD1309
NSP 2O CUSHION (RUBBER) AEB-317 62 PAD C BHA1103
NSP 63 SUB PLATE BNF1D25
21 RUBBER SHEET AEB1012 NSP 64 BARRIER AEC1028
22 NYLON BINDER AEC-093 65 SCREW ABA1009
NSP 23 COVER AEC-294
24 BINDER AEP-215 615 VOL ASSY BWZ1524
25 PCB SPACER AEC1570 67 LED ASS'Y BWZ1525
68 CONNECT ASS'Y BWZ1526
26 PCB SPACER AEC1573 69 POWER ASS'Y BWZ1527
NSP 27 PCB MOLD AMR2115 70 TRANS 1 ASS'Y BWZ1528
28 PCB SPACER BEC1103
29 UNIT BMR1063 71 AC ASS'Y BWZ1529
30 JOINT BMH1064 72 SW 1 ASS'Y BWZ1544
73 TRANS 2 ASSY BWZ1523
31 SCREW ABA-298 74 MIC ASS'Y BWZ1530
82 SCREW ABA1024 75 DSP ASS'Y BWZ1532
33 SCREW (STEEL) ABA1184
34 NUT ABN-065 76 INPUT ASSY BWZ1519
35 SCREW BBZ30P080FZK 77 CONTROL ASS'Y BWZ1520
78 VIDEO ASS'Y BWZ1521
36 SCREW BPZBOPOSOFZK 79 SP ASS'Y BWZ1522
37 SCREW BP230P350FZK
38 NUT NK70FCU
39 NUT NK90FCU
