pioneer ctw 504 r service manual

Extracted text from pioneer ctw 504 r service manual (Ocr-read)

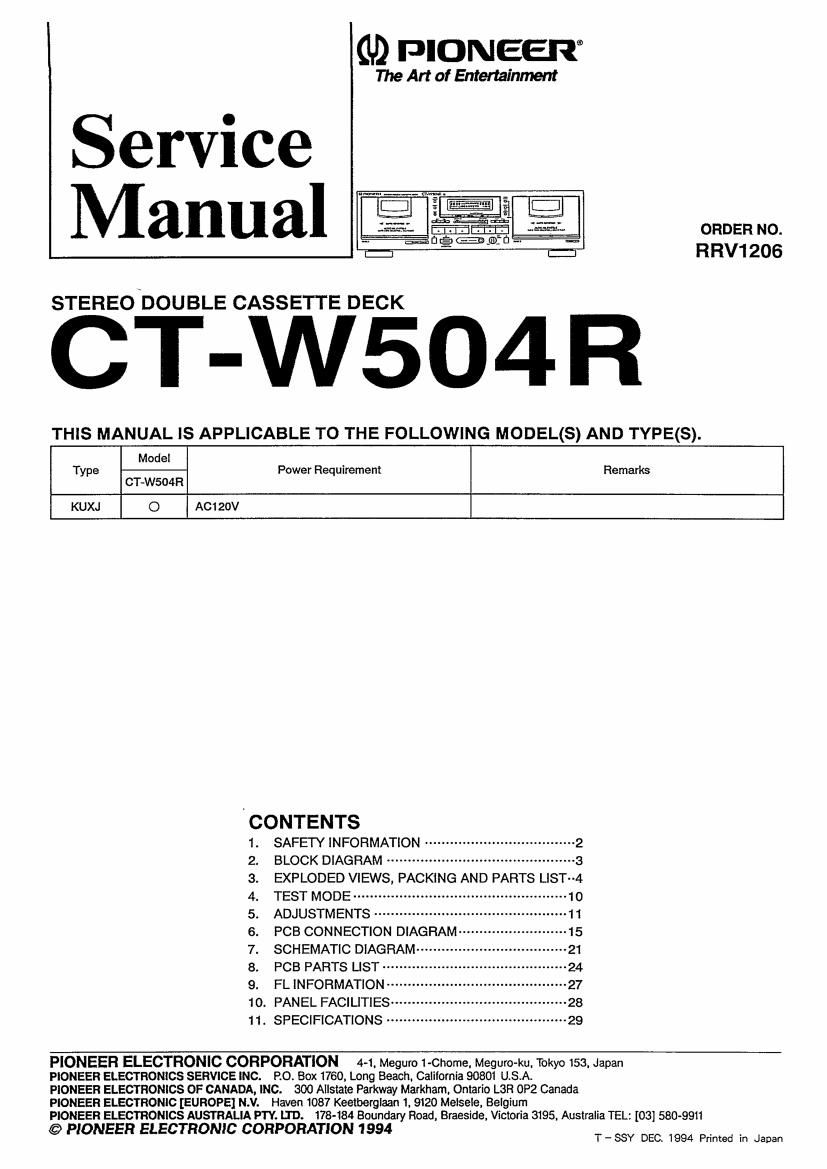

Page 1

(ID mower-2w

The Art of Entertainmm

Service
f Manual

STEREO ODOU BLE CASSETTE DECK

T-W504R

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER No.
RRV1206

Model
Type Power Requirement Remarks
CT-W504R
KUXJ O AC120V

CO NTENTS
_ SAFETY INFORMATION .................................... 2
BLOCK DIAGRAM ............................................. 3
EXPLODED VIEWS, PACKING AND PARTS LIST--4
TEST MODE ................................................... 10
ADJUSTMENTS ........................
PCB CONNECTION DIAGRAM
SCHEMATIC DIAGRAM -------
PCB PARTS LIST --
FL INFORMATION -
PANEL FACILITIES
SPECIFICATIONS -

°9°>'.°9.5°N

4°~

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. FD. Box 1760, Long Beach. California 90801 USA.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham. Ontario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keelberglaan 1. 9120 Melsele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1994 , .
T - SSY DEC. 1994 Pnnted In Japan

Page 2

CT-W504R

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it Is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. if you are not qualified to perform the repair of this product properly and safely, you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm [California Health at Safety Code. Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols {EB- (fast operating fuse) and/or a (slow operating fuse) on PCB Indicate that replacement parts

must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible {EB- (fusible de type raplde) eru a (fusible de type lent) sur CCl indiquent que les

pieces de remplacement doivent avoir Ia meme designation.

(FOR USA MODEL ONLY)
1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known eartr ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 2292 or

metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc). Plug
the AC line cord of the appliance d'rectly into a 120V
AC 60Hz outlet and turn the AC power switcl on. Any
current measured must not exceed 0.5mA.

Read cg shou'd

Leakage not be above
current O 5A
tester


Device
u'ider
test

Test all
exposed metal
sufaces

@ Also test With
plug reversed
(Using AC adapter
plug as required)

Earth
ground

AC Leakage Test

equivalent between the earth ground and all exposed_

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2.PRODUCT SAFETY NOTICE

Many electrical and mechancal parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspect'on nor the
protection afforded by them necessarily can be ob»
iained by using replacement components rated for vol-
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not iave the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual, A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
