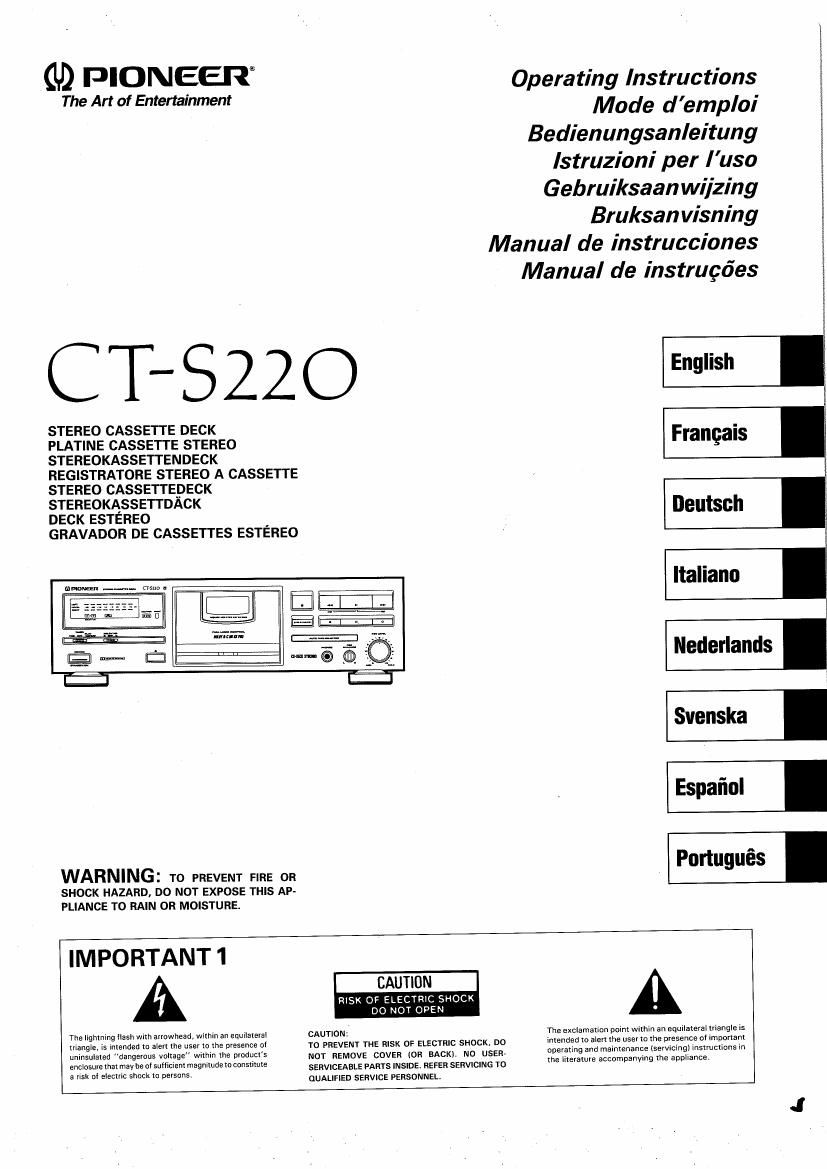

Page 1

(U) PIONEEIT

The Art of Entertainment

Operating Instructions
Adacfletlflennploi
Bedienungsanleitung
Istruzioni per I uso
Gebruiksaan wiizing
thquksanvisning

Manual de instruccianes
Manual de instrugées

CT-SZZO

STEREO CASSETTE DECK

PLATINE CASSETTE STEREO
STEREOKASSETTENDECK
REGISTRATORE STEREO A CASSETTE
STEREO CASSETTEpECK
STEREOKASSE1TDACK

DECK ESTEREO

GRAVADOR DE CASSETTES ESTEREo

BEE

@E

WARNING: To PREVENT FIRE OR

SHOCK HAZARD. DO NOT EXPOSE THIS AP-
PLIANCE T0 RAIN OR MOISTURE.

Engflsh

Frangais

Deutsch

E

ltaliano

T
i
i
i

IMPORTANT 1

RISK OF ELECTRIC SHOCK

The lighmtng flash with alrowhead. within an equuatemt
triangle, is mtenoed to alen the user to the pvesence oI
unmsulaled "dangerous voltage Within the product's
enclosure that may be at sumctent magnitudeto constitute
a risk of elecmc shock to persons.

a CAUTION

DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). ND USEFL
SERVICEABLE PARTS INSIDE. REFER SERVICING T0
QUALIFIED SERVICE PERSONNEL.

A

The exclamatiun pmm within an equnzteral triangle IS
imended m aken The user to me presence of important
oparating and maintenance (servicing) instructions in
the hterawre accompanying the appnance,

Page 2

Thank you for buying this Pioneer product,

Please read through these operating instructions so you will know
how to operate your unit properly, After you have finished reading
the instructions, keep the manual in a safe place for future ref-
erence.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the explaa
natory drawings. However, the method of connecting and operat-
ing the unit is the same,

PRECAUTIONS ON INSTALLATION ..
HOW TO HANDLE CASSETTE TAPES
CONNECTIONS
FRONT PANEL FACILITIES
PLAYBACK ......................
MUSIC SEARCH ................................................................................

uumawm

CONTENTS

This product complies with the Radio Interference require-
ments of the EC {European Community) Directive 87/303/EE . "

RECORDING ....................................
TIMER RECORDING AND PLAVBACK.
DOLBY NR Si HX PRO
MAINTENANCE...
TROUBLESHOOTIN
SPECIFICATIONS ............................................................................. 13

PRECAUTIONS ONINSTALLATION

HEAT

Do not place the unit near a heating device, on top of the amplifier
or in a location where it is exposed to direct sunlight, as excessive
heat may damage the finish and internal parts. Also, do not place
a cloth on top of the unit or block the provided ventilation open-
ings in any other way. Always make sure that the installation loca»
tion provides sufficient ventilation to prevent overheating.

HUMIDITY. CONTAMINATION

Do not install the unit in an excessively humid or dusty location, as
this may cause malfunctions and breakdowns. Also, avoid placing
the unit next to kitchen counters or other locations where it is sub-
jected to oily fumes.

2

En

NOISE INTERFERENCE

When the unit is placed directly on top of the amplifier it may pick
up humming or other noise during recording. A turned-on TV set
in close vicinity may also cause noise.

CON DENSATION

When the unit is moved from a cold to a warm environment, or
when the room temperature rises drastically, condensation forms
on parts of the tape transport mechanism, causing malfunctions
when the tape deck is operated immediately To avoid this, allow
the tape deck to acclimate to the new temperature by waiting
about one hour before operating the unit.
