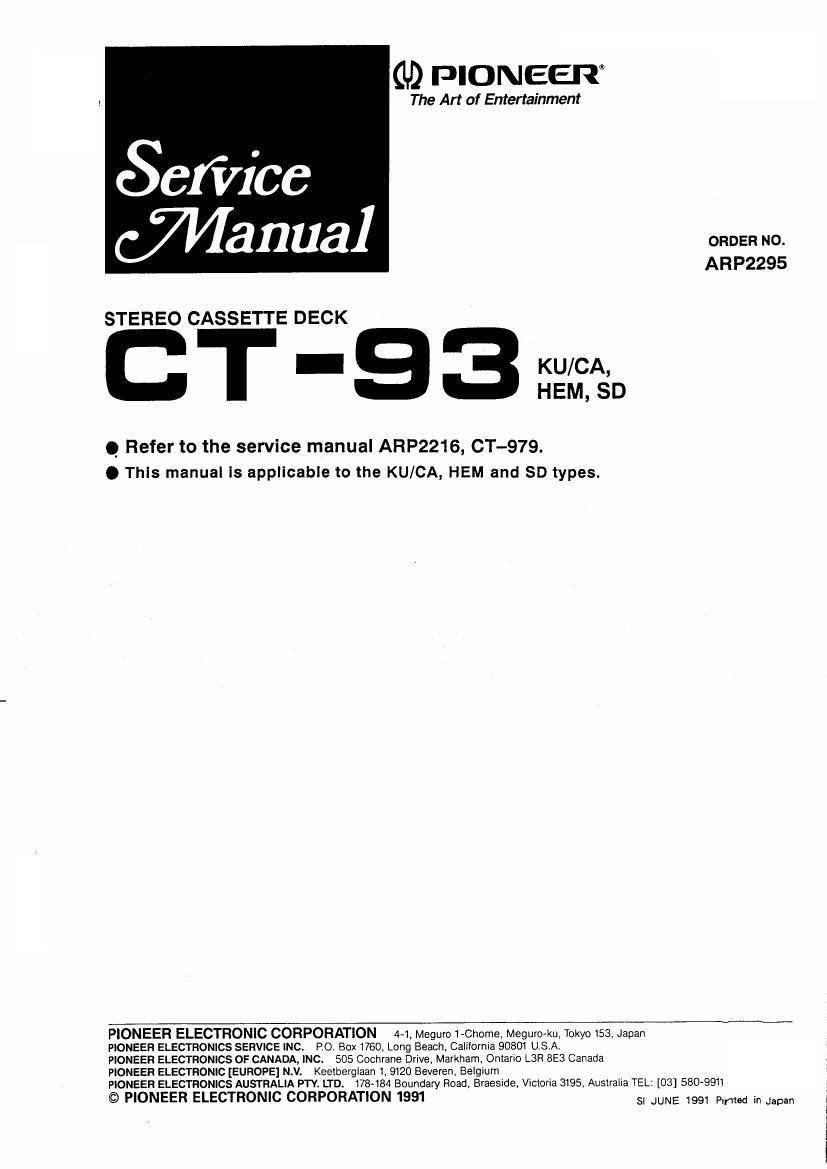

Page 1

(l!) PIONEEIT

The Art of Entertainment

ORDER NO.
ARP2295

STEREO CASSETTE DECK

c I HEM, SD

Q Refer to the service manual ARP2216, CT-979.
O This manual is applicable to the KU/CA, HEM and SD types.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro~ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach, California 90801 USA,

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, Ontario LSR 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keelberglaan 1, 9120 Beveren. Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Bnundary Road, Braeside, Vlclovia 3195, Australia TEL: {03] 580-89

© PIONEER ELECTRONIC CORPORATION 1991 5. JUNE 199, PM, in Japan

Page 2

CT-93/KU/CA, HEM, SD

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES:

- Parts without part number cannot be supplied.

0 The A mark found on some component parts indicates the importance of the safety factor of the pan, Therefore. when replacing, be sure to use parts of
identical designation.

- Parts marked by G" are not always kept in stock. Their delivery time may be longer than usual or they maybe unavailable.

The CT-93/KU/CA, HEM and SD types are the same as the CT-979/HEM type with the
exception of the following sections.
Nos. in the Remark column correspond to the illustration on page 5.

Part No.
Mark Symbol & Description CT-979/ CT_93/ CT-93/ 01-433, Remarks
HEM type KU/CA type HEM type SD type
Main unit Non supply Non supply Non supply Non supply
Power switch unit Non supply Non supply Non supply Non supply
Input VFl unit Non supply Non supply Non supply Non supply
Operation unit Non supply Non supply Non supply Non supply
Control unit Non supply Non supply Non supply Non supply
Headphone unit Non supply Non supply Non supply Non supply
Dolby 8 unit , ------ Non supply Non supply Non supply 139
A AC Power cord ADG1036 RDGlO16 ADG1036 Poems
A Fu7os, FU704 Fuse (T2A) REK-ioa ------ REKeioa REK~103
A; FU701. FU702 Audio fuse (TssomA) REK-osa ------ REK-osa REK~093
A FU103. FU704 Fuse (1.6A) ---~-- REKA074 ------------
A Fu7o1, FU702 Audio luse (BOOmA) ------ REK7079 ------------
A Power transformer R'lT1 1 53 ------------------
(Aczzo-230/230-24OV)
A: Power transformer (AC120V) ------ RT 154 -----------
A Power transformer ------------ RT 155 ~~~~~~
A Power transformer ------------------ RTTI 156
(AC110/120~127/220/24OV)
A Voltage selector ------------------ P531002
A AC oord spacer ------ ANG1153 ------------ 1
A Strain relief CM-ZZB ------ CM-ZZB CM7223
Leg assembly AMR1159 ------------------
Insulator assembly ~~~~~~ VXA1257 VXA1257 VXA1257
FL filter RAH1542 RAH1837 RAH1542 RAH1837
VR ring RAT1007 HATl 006 RAT] 006 RAT! 006
Washer RBF1017 ------------------
Side rubber REB1094 -------------- ~ - - -
Door lens RLP1026 RLP1034 RLP1034 RLP1034
FL lens RLPI 027 RLP1035 RLP1035 RLP1035
Door RNK1495 RNK1730 RNK1730 RNK1730
Front panel assembly RXX1332 RXX1331 RXX1aao RXX1381
Door assembly RXX1416 RXX1413 RXX1412 RXX1412
Mechanism unit Non supply ---------- v - ------
G Mechanism unit - ~ - - -- RYM1122 RYM1122 RYM1122
Screw ------ PBA1038 PBA1038 PBA1038 61
Wood collar - ' ' ~ '- PNW1238 PNW1238 PNW1238 62
Side panel ------ RAH1597 RAH1897 RAH1897 63
64
Side wood (L) ----- - RMsww RM51017 RMSlO17
