Pioneer ct 43 owners manual

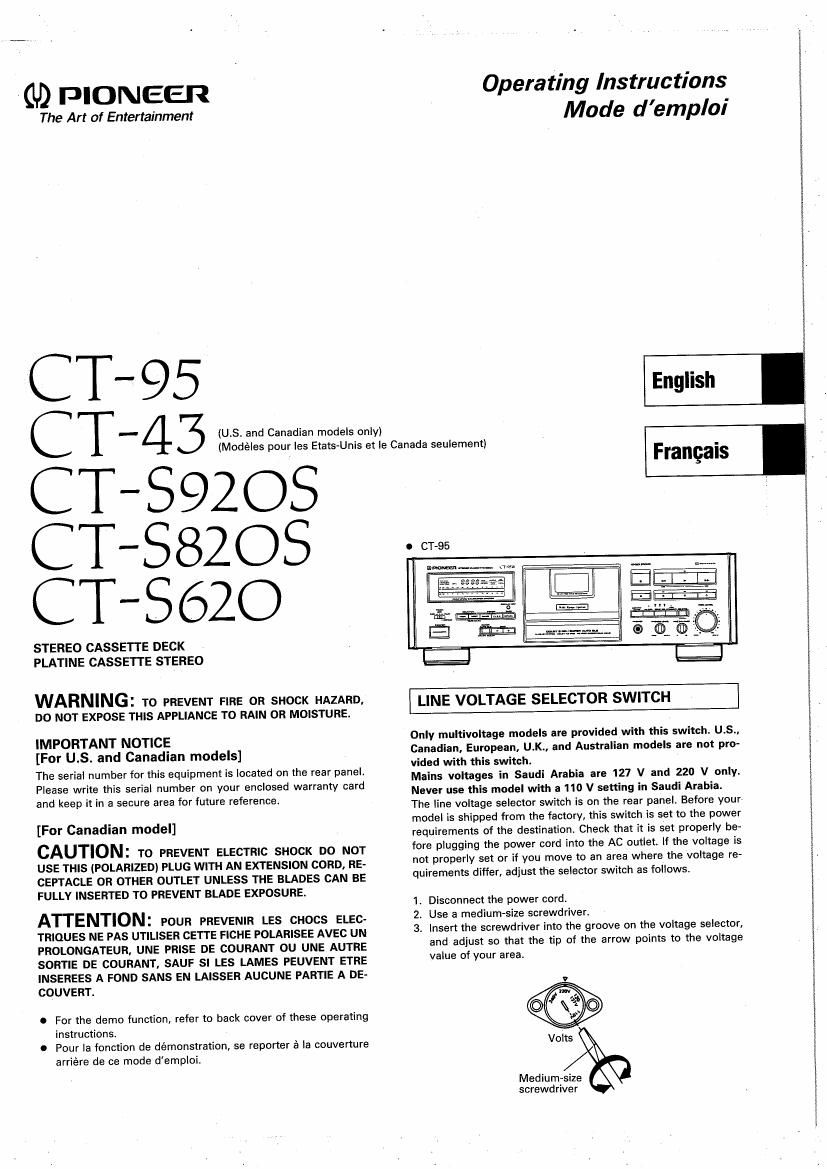

Page 1

(U) PIONEER

The Art of Entertainment

CT-95

-- (Us. and Canadian models only)
(Modeles pour les Etats-Unis et Ie Canada seulement)

CT-SQZOS
CT-SSZOS
CT-SéZO

STEREO CASSETTE DECK -
PLATINE CASSETTE STEREO

WARNING: TO PREVENT FIRE OR SHOCK HAZARD.
DO NOT EXPOSE THIS APPLIANCE To RAIN OR MOISTURE.

IMPORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear panel.
Please write this serial number on your enclosed warranty card
and keep it in a secure area for future reference.

[For Canadian model]

CAUTION: To PREVENT ELECTRIC SHOCK Do NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RE-
CEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED To PREVENT BLADE EXPOSURE.

ATTENTION: POUR PREVENIR LES cuocs ELEC-
TRIQUES NE PAs UTILISER cETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT 0U UNE AUTRE
SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE
INSEREES A FOND SANS EN LAISSER AucUNE PARTIE A DE-
cOUVERT.

O For the demo function, refer to back cover of these operating
instructions.

I Pour la fonction de demonstration, se reporter a la couverture
arriere de ce mode d'emploi.

Operating Instructions
Mode demplai

Frangais

0 CT-95

muons- mm- a as»

LINE VOLTAGE SELECTOR SWITCH

Only multivoltage models are provided with this switch; U.S..
Canadian, European, U.K., and Australian models are not pro-
vided with this switch.

Mains voltages in Saudi Arabia are 127 V and 220 V only.
Never use this model with a 110 V setting in Saudi Arabia.
The line voltage selector switch is on the rear panel. Before your
model is shipped from the factory, this switch is set to the power
requirements Of the destination. Check that it is set properly be-
fore plugging the power cord into the AC outlet. If the voltage is
not properly set or if you move to an area where the voltage re-
quirements differ, adjust the selector switch as follows.

1, Disconnect the power cord.

2. Use a medium»size screwdriver.

3. Insert the screwdriver into the groove On the voltage selector,
and adjust so that the tip of the arrow points to the voltage
value of your area.

Medium-size
screwdriver

Page 2

IMPORTANT 1

The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence oI
uninsuloted dangerous voltage" within the product's
enclosurarhar may be OI sulliclent magnitude to constitute
a risk at electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). ND USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING T0
QUALIFIED SERVICE PERSONNEL.

The exclamation point withrn an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

IMPORTANT 2

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in
accordance with the following code:

blue neutral

brown II a
It the plug provided is unsuitable for your socket
outlets, the plug must be cut all and a suitable plug
fitted,

Thecut-uff plug should be disposed ofllnd must not be
inserted into any 13 amp socket as this can result in
electric shock. The plug or adaptor or the distribution
panel should be provided with 13 amp fuse. As the
colours of the wires in the mains lead orthia appliance
may not correspond with coloured markings
identifying the terminals in your plug. proceed as
follows:

The wire which is coloured blue must be connected tn
the terminal which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Do not connect either wire to the earth terminal of a
three pin plug,

NOTE

Arterreplacing orchenging a fuse, the fuse coverinthe
plug must be replaced with a rose cover which
corresponds In the COIOur of the insert in the base of
the plug Or the word that is embassed On the base of
the plug, and the appliance must nut be usedwithout a
fuse cover. If lost, replacement (use covers can he
obtained from yuur dealer.

This appliance is rated at 13 amps.

Only 13 amp fuses approved to BS.

1362 ASIA, should be used,

READ INSTRUCTIONS - All the safety and operating
instructions should be read belore the appliance is
operated.

RETAIN INSTRUCTIONS ~ The salary and operating
instructions should be retained for future
reference.

HEED WARNING -AII warnings on the appliance and in
the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All operating and use
instructions should be followed. '

WATER AND MOISTURE -- The appliance should not
be used near water - lor example. near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.

lDCATION 7 The appliance should be installed in a
stable location.

. WALL 0R CEILING MOUNTING - The appliance
should not be mounted to a wall or ceiling.

VENTILATION - The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example, the appliance
should nothesiluated on a bed,soia, rug, Or similar
surface thatmay block tneventilanon openings; or,
placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through
the ventilation openings.

HEAT s The appliance should be situated away from
heat aouroes such as radiators. heat registers,
stoves, or other appliances (including amplifiers)
that produce heat. -

POWER SOURCES 7 The appliance should be
connected to a power supply only oi the type
described in the operating instructions or as
marked on the appliance.

POWER-CORD PROTECTION -_ Fawerrsunnlv cords
should be routed so that they are not likely to be
walked on or pinched by item placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.

POLARIZATION - If your purchased product is
provided with a polarized power plug, please read
the following instructions. This product is eduipped
with a polarized alternatingcurrenrline plug (a plug
having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a
safety Ieoture. It you are unable lo insert the plug
fully into the outlet, lry reversing the plug. It the
plug should still fail to fiI, contact yourelectrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.

PowEII LINES - An outdoor antenna should be located
away horn power lines.

NONUSE PERIODS 7 The power cord or the appliance
should be unplugged Irorn the outlet when left
unused for a long period prome,

OBJECT AND LIQUID ENTRY 7 Care should be taken
sothntobjects do not fall and liquids are notspilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE 7 The appliance

should be serviced by a Pioneersuthorized service

center or ouaIrhed service personnel when:

The power-supply cord or the plug has been

damaged.

Objects have fallen, or liquid has been spilled into

the appliance.

The appliance has been exposed to rain.

Theappliance does notappearto operatenormally

or exhibits a marked change in performance.

The appliance has been dropped orthc enclosure

damaged.

SERVICING The user should not attempt to service
the app nce beyond that described in the
operating instructions. All other servicing should
he retarred to qualified service personnel.

ELECTRIC
SERVICE
_ EQUIPMENT

9";

GROUND CLAMPS

SAFETY INSTRUCTIONS

OUTDOOR ANTENNA GROUNDING s It on outside

antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to
provide some protection against voltage surges
and built»up static charges.
In the u.s.A. section am or the National Electrical
Code, ANSI/NFPA 70, provides inlormation with
respect to proper grounding of the mast and
supporting structure, grounding otthe lead-in wire
to an antenna discharge unit, size dl grounding
conductors. location oi antenna discharge unit.
connection to grounding electrodes, and
requirements for the grounding electrode. See Fig.
A.

CART - An appliance and can combination should be
moved with care. auick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination [0 overturn.

»
MEL: 7 NAnONAL ELECTRIC CODE

ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 - 20)

GROUNDING CONDUCTORs
[NEC SECTlON alo - 2Il

"- POWER SERVICE GROUNDING

ELECTRODE SYSTEM

FIG. A

INEC ART 250, PART HI

2
