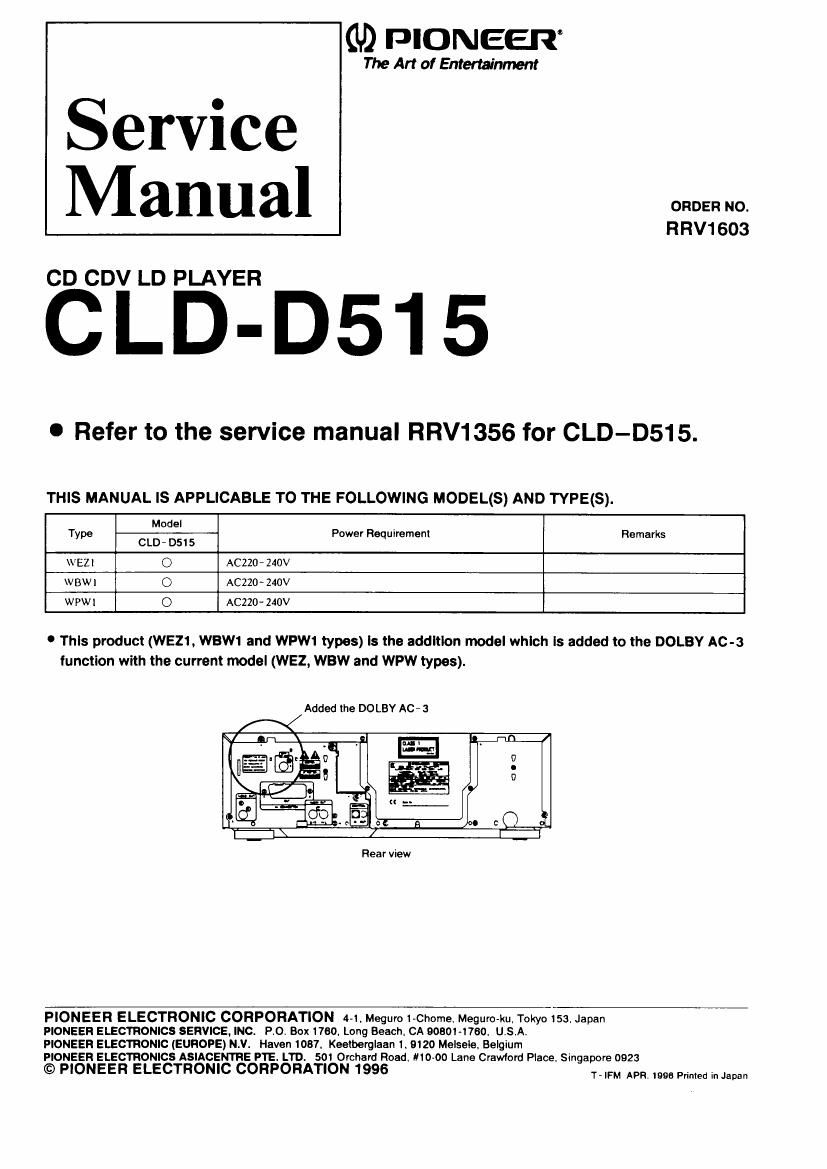

Service
Manual
RRV1603
CD CDV LD PLAYER
CLD-D515
0 Refer to the service manual RRV1356 for CLD-D515.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type Power Requiremem Remarks
CLD- 0515
M321 0 ACZZO- 240v
\VBWI O AC220- 240v
wpw1 O ACZZO- 240v
0 This product (WEZ1, WBW1 and WPW1 types) Is the addltlon model which Is added to the DOLBY AC-3
tunction with the current model (WEZ, WBW and WPW types).
Added the D0 LBY AC- 3
<10:
Rear view
PIONEER ELECTRONIC CORPORATION 44. Meguro 1-Chome. Meguro-ku, Tokyo 153. Japan
PIONEER ELECTRONICS SERVICEV INC. FD. BOX 1760. Long Beach. CA 90301-1760. USA.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087. Keetberglaan I. 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTEA LTDA 501 Orchard Road, IO-00 Lane CraMord Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 T-IFM APR. 9 Primed in Japan
CLD- D515
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES:
0 Parts marked by NSF " are generally unavailable because they are not in our Master Spare Parts List
0 The A mark found on some component parts indicates lhe importance of the safetyfoctor of the part. Therefore, when replacing,
be sure to use parts of identical designation.
0 Parts marked by" © " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples
EX. When there are 2 effective digits(any digit aparifrom 0), such as 560 ohm and 47h ohm(taleronce is shown by .l=5%, and K = 10%;
5609 -> 56 x [0 -. 551 ..... .. RBI/4PUEIIEIJ
471(9) - 47 X [0" -* 473" RBI/4P1]
0.59 -» 0R5 A- -- RNZH@IEE]K
[9 -> 1R0 -~ -- RSIPIEHEK
Ex] When there are 3 effective digits(such as in high precision metal film resistors).
5.62kQ -> 562 X 10 - 5621 -- RNl/4PCEJEIIIIIF
0 FOR CLD- D515/WEZ1
WEZl and WEZ types have the same construction except for the following :
Part No.
Mark s mbol lt Descrl tlon Remarks
y wez type wezr typo
NSP MOTHER ASSY VWSI 197 at VW51268
AC3B ASSY Not used VWVI499 No, 1
Flexible Cable (7?) Not used VDA1468 No. 2
Rear Panel L VNA1575 VNA1779
NSP Front Panel VNK3193 VNK3829
Rear Cover VNK3272 VNK3828
lnsrmction Sheet (AC3) Not used VRL1002
Front Panel Assy - S VXX2293 VXX2450
Note : The number in the remarks column correspond to the numbers on the exploded diagram Refer to "EXPLODED VIEW".
Note * : The design of MOTHER ASSY for CLDr DSlS/WEZ is changed from VWSll97 to VWSl268.
0 FOR CLD- DS15/WBW1
WBWl and WBW types have the same construction except for the following :
Pan No.
Mark s mbol a. Descrl tlon Remarks
V p waw type waw1 type
NSP MOTHER ASSY W51 [97 >1: VW51268
AC3B ASSY Not used VWVl499 No. 1
Flexible Cable (7?) Not used VDAl468 Not 2
Rear Panel L VNA1575 VNA1779
NSP Front Panel VNK3193 VNK3829
Rear Cover VNK3272 VNK3828
Instruction Sheet (AC3) Not used VRLIOOZ
Front Panel Assy- S VXX2293 VXX2450
Note : The number in the remarks column correspond to the numbers on the exploded diagram Refer to EXPLODED VIEW.
Note * : The design of MOTHER ASSY forCLD- D515/WBW is changed from VWSll97 to VW81268.
