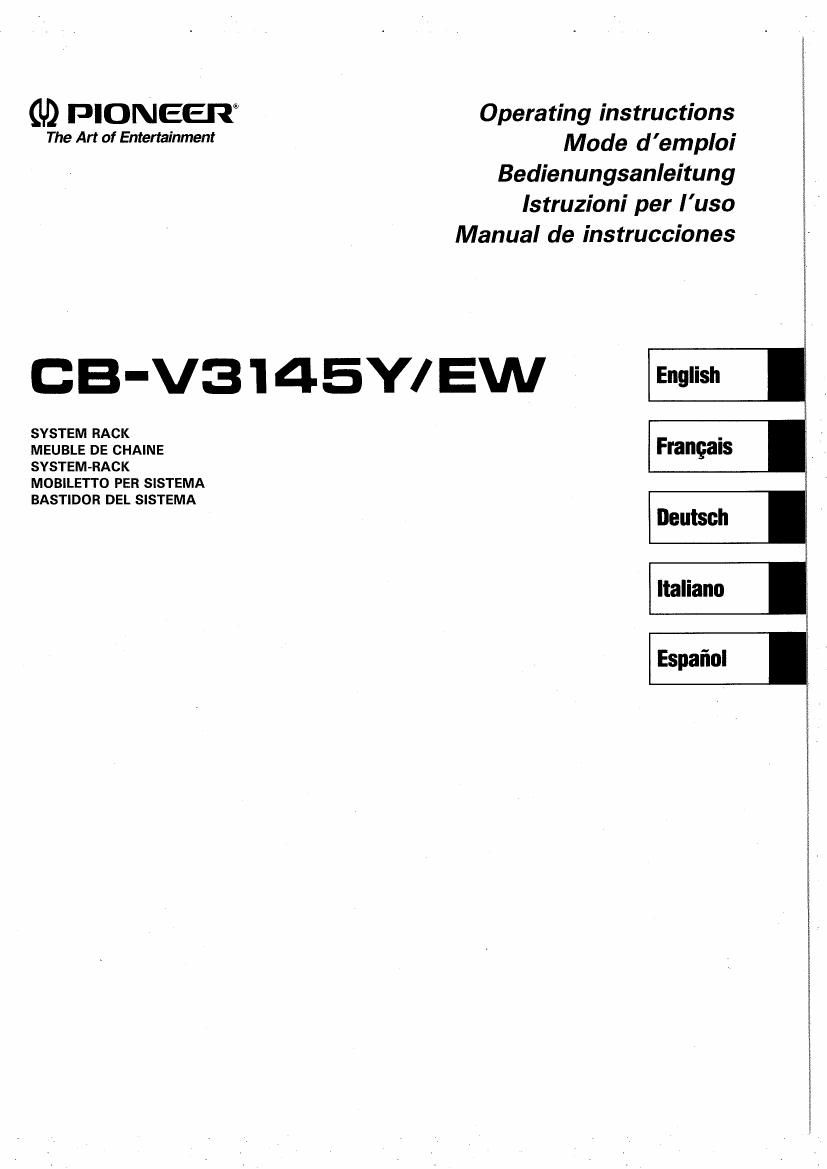

Page 1
GD PIONEFJT Operating instructions
Mode demploi
Bedienungsanleitung
lstruzioni per Iuso
Manual de instrucciones
The Art of Entertainment
CB-V3 145Y/EW
SYSTEM RACK
MEUBLE DE CHAINE
SYSTEM-RACK
MOBILETTO PER SISTEMA
BASTIDOR DEL SISTEMA
Deutsch
E
5
Italiano
Page 2
Thank you for purchasing this Pioneer product. This rack
has been designed for exclusive use with Pioneer Laser-
Vision "karaoke" systems.
Read this Operating Instructions carefully and install the
rack as directed. After reading the instructions, keep this
Operating Instructions in a safe place for future use in the
event of reinstallation.
System Example :
Haw
Stereo mixing
amplifier
SAvV24O
LaserVision Billbox
player
CLD»V404T
Wireless mic
receiver
PRECAUTIONS REGARDING
USE
ABOUT INSTALLATION
I Install in level location
If the location is not level, the rack may be deformed.
I Do not install in locations exposed to direct
sunlight or nearby heating appliances
0 The surface of the rack may be deformed or become
discolored.
' Damage may result to the audio components
mounted in the rack.
I Install at least 10cm from wall
If the rear panel of the rack is installed directly against a
wall, the mounted audio components may suffer from
insufficient ventilation and resultant overheating.
CAUTION:
This rack has weight capacity limits and a stacking height limit.
The rack may fall over or break if these limits are exceeded.
To avoid such dangers, stay within the limits listed below.
Total: not to exceed 120 kg [264.6 lbs)
On top board: not to exceed 50 kg (1103 lbs)
0n inside shalt: not to exceed 20 kg (44.1 lbs)
On bottom board: not to exceed 30 kg [66.2 lbs)
Stacking height:
not to exceed 60 cm (236/8 in)
(on top board)
2
En
INSTRUCTIONS
mTo Install the Monitor TV (SD-28AV1 or
SD-28AV2) on the Rack
1. Attach the brackets to the top surface of the rack.
2. Loosely fit the monitor screws in the bracket screw
holes.
3. Place the monitor on top of the rack. Secure the
monitor by tightening the monitor screws.
4. Insert the stoppers into the rack.
Bracket screw E
Monitor screw
Bracket
Stopper
ETO Install the Wireless Microphone
Receiver
1. Remove screws.
2. Remove front cover.
3. Install the receiver.
