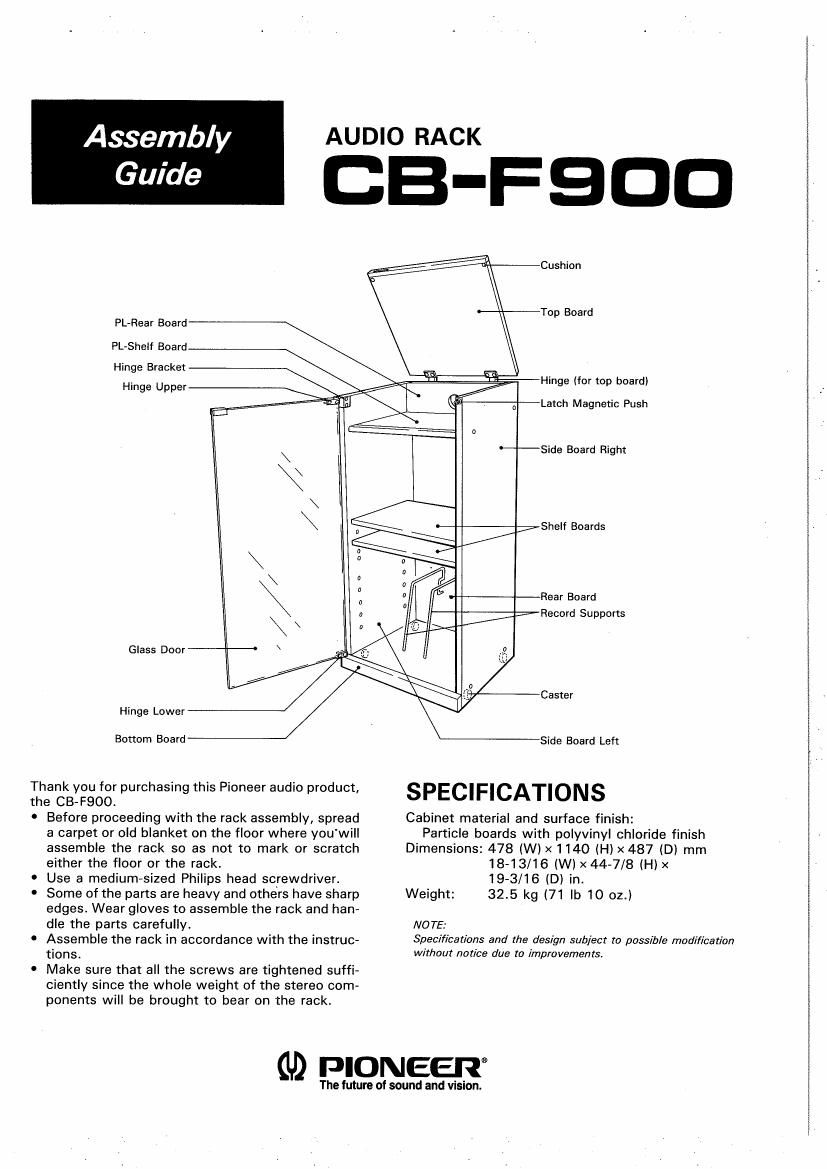

Page 1
Assembly
Guide
PL»Rear Board
PL~Shelf Board
Hinge Bracket
Hinge Upper
\
\
\
\ n
\ 2
\ a
u
a
a
\ \ 0
Glass Door - \
/
Hinge Lower
Bottom Board
Thank you for purchasing this Pioneer audio product,
the CB-FQOO.
0 Before proceeding with the rack assembly, spread
a carpet or old blanket on the floor where youwill
assemble the rack so as not to mark or scratch
either the floor or the rack.
0 Use a medium~sized Philips head screwdriver.
' Some of the parts are heavy and others have sharp
edges. Wear gloves to assemble the rack and han-
dle the parts carefully.
' Assemble the rack in accordance with the instruc-
tions.
0 Make sure that all the screws are tightened suffi-
ciently since the whole weight of the stereo com-
ponents will be brought to bear on the rack.
AUDIO RACK
B-FSOO
Cushion
Top Board
-Hinge (for top board)
.1; _.
/ 1 7 A
,. o-Latch Magnetic Push
H-Side Board Right
Shelf Boards
\/
Bear Board
Record Supports
O
\ fi-Caster
Side Board Left
SPECIFICATIONS
Cabinet material and surface finish:
Particle boards with polyvinyl chloride finish
Dimensions: 478 (W) x 1140 (H) x 487 (D) mrn
1843/16 (W) x44-7/8 (H) x
19-3/16 (D) in.
Weight: 32.5 kg (71 lb 10 02.)
NOTE:
Specifications and the design subject to possible modification
without notice due to improvements.
0)) mom-zen
The future of sound and vision.
Page 2
CHECKING THE PARTS
The names and quantities of the parts are shown in
the parts list. Check that all the parts are present.
The names and shapes of the parts are required for
the assembly procedure and should thus be re-
membered.
PARTS LIST
Part Quantity Physical outline Part Quantity Physical outline
Cabinet retaining screw 8 Hinge mounting screw (A) (1 sgare) on
Rear board mounting screw 9 @111; Hinge mounting screw (B) (1 Sierra) 01:»
Plastic dowel 8 ([33 Hinge mounting screw (C) (1 spare) Elm
Cable clip 2 Hinge (for top board) 2 Fi'
Caster mounting screw 12 W 21299:, bracket mounting 2 6D
Caster 4 © Hinge bracket 1 9'?
Record support 2 Q Cushion 2
Hinge mounting screw Hinge bracket mounting CUShiU"
2
screw
Rear board mounting screw
