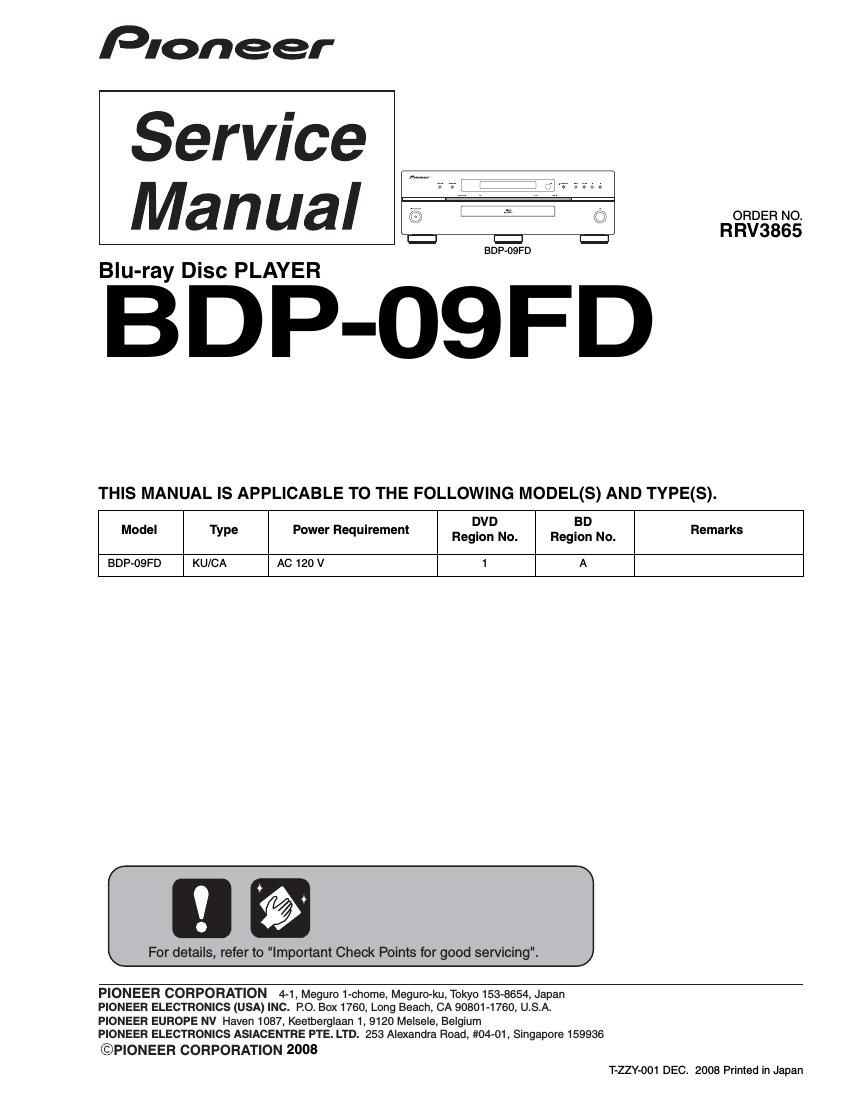

Page 1

Pioneer

Service
Manual

ORDER NO.
RRV3865
BDP-OBFD
Blu-ray Disc PLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Reg?Xr?No. Regs): No. Remarks
BDP-O9FD KU/CA AC 120 v 1 A

I].

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1, Meguro1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

CPIONEER CORPORATION 2008

T-ZZY-OO1 DEC

. 2008 Printed in Japan

Page 2

SAFETY INFORMATION
A I)

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may

I void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains certain electrical parts contain chemicals which are known to the State of California to cause cancer,
B birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

NOTICE
(FOR CANADIAN MODEL ONLY)

I Fuse symbols EEHfast operating fuse) and/or EB (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.

REMARQUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible EEI (fusible de type rapide) et/ou EEI (fusible de type lent) sur CCI indiquent que les pieces
C de remplacement doivent avoir la meme designation.

-(FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS ANY MEASUREMENTS NOT WITHIN THE
I The following check should be performed for the LIMITS OUTLINED ABOVE ARE INDICATIVE
continued protection of the customer and service OF A POTENTIAL SHOCK HAZARD AND
technician.
LEAKAGE CURRENT CHECK MUST BE CORRECTED BEFORE RETURN-
Measure leakage current to a known earth ground ING THE APPLIANCE To THE CUSTOMER-
(water pipe, conduit, etc.) by connecting a leakage
D .
current tester such as Simpson Model 229-2 or 2_ PRODUCT SAFETY NOTICE
equivalent between the-earth 9mm" and all exposed Many electrical and mechanical parts in the appliance
metal parts Of the appliance (Input/output terminals, have special safety related characteristics. These are
screwheads, metal overlays, control shaft, etc.). PIUQ often not evident from visual inspection nor the
the AC line 00rd 0f 19 appliance directly into a 120V protection afforded bythem necessarily can be obtained
I AC 60 Hz outlet and turn the AC power switch on. Any by using replacement components rated for voltage,
current measured must not exceed 0.5 mA. wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
'e , 5:129:02 identified by marking with a A on the schematics and
Leakage 0.5 mA on the parts list in this Service Manual.
E Device 351:" The use of a substitute replacement component which

under
test

does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. Forthe latest
information, always consult the current PIONEER

Service Manual. A subscription to, or additional copies
fifmfigzgamy Earm of, PIONEER Service Manual may be obtained at a
plugasrequrred) 7 ground nominal charge from PIONEER.

AC Leakage Test

Test all
exposed metal
surfaces

' {i

Also test with

2 BDP-OQFD

I 1 - 2 - 3 - 4 I
