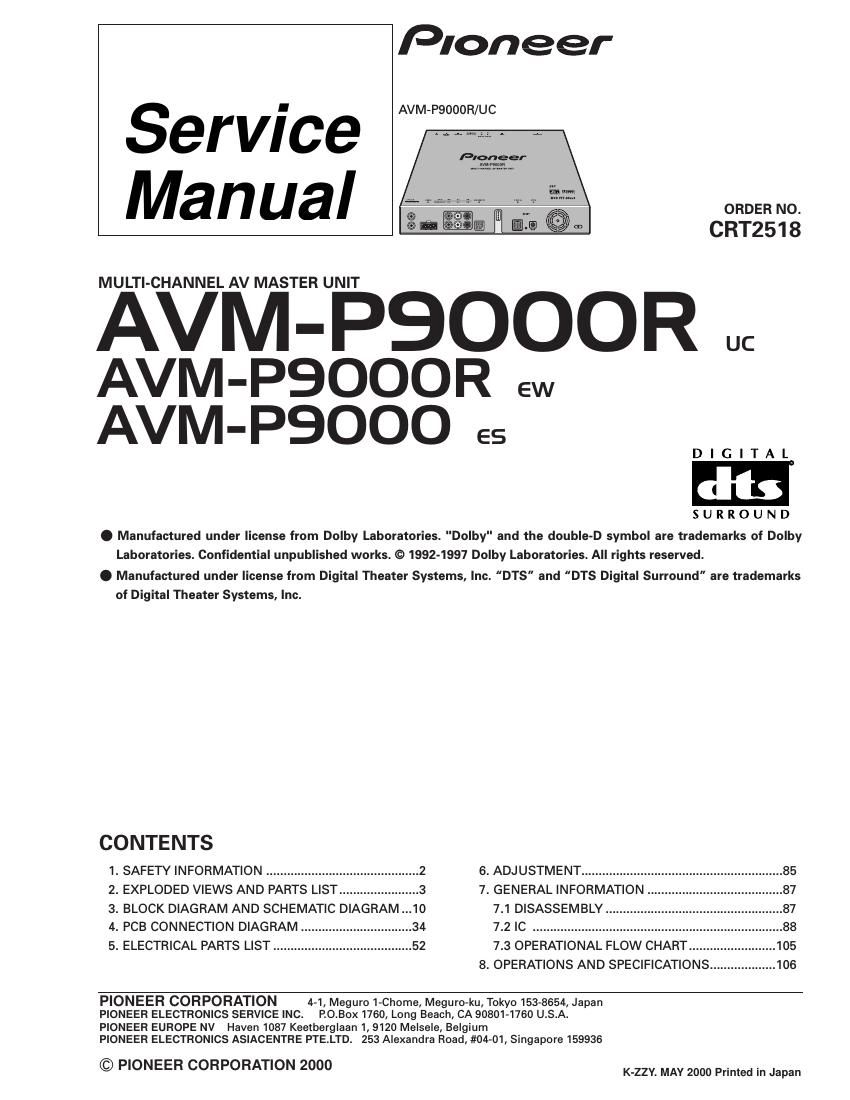

Page 1
Pioneer
AVM-PQOOOR/UC
Service
Manual
MULTI-CHANNEL AV MASTER UNIT
AVM-PSOOOR U.
AVM-PSOOOR ew
AVM-PSOOO es
ORDER NO.
CRT2518
DIGITAL
S U R R O U N D
. Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved.
. Manufactured under license from Digital Theater Systems, Inc. "DTS and DTS Digital Surround" are trademarks
of Digital Theater Systems, Inc.
CONTENTS
1. SAFETY INFORMATION ................... . 6. ADJUSTMENT ..................
2. EXPLODED VIEWS AND PARTS LIST.. .3 7. GENERAL INFORMATION
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10 7.1 DISASSEMBLY ...........
4. PCB CONNECTION DIAGRAM 7.2 IC .............................................
5. ELECTRICAL PARTS LIST ....... 7.3 OPERATIONAL FLOW CHART .105
8. OPERATIONS AND SPECIFICATIONS ................... 106
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 1538654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER CORPORATION 2000 K-ZZY. MAY 2000 Printed in Japan
Page 2
AVM-PSOOORPSOOO
1. SAFETY INFORMATION(AVM-P9000R/UC)
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
