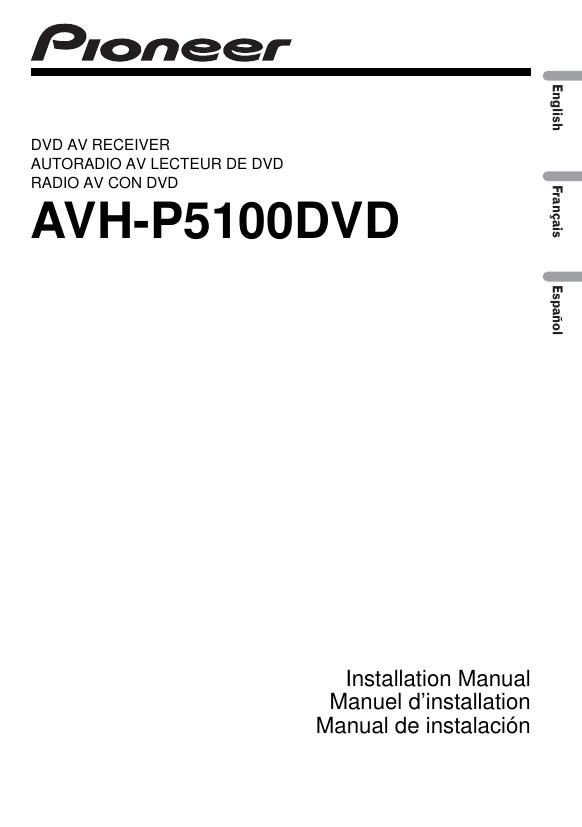

Pioneer AVH P5100 Owners Manual

Page 2

Contents

Connecting the Units
Parts supplied
Connecting the power cord .
When connecting to separately

amp
When connecting With a rear view camera .
When connecting with a multi-channel
processor ..
Connecting and '

ld power

lling the optical cable
connection box

When connecting the external video
component and the display

Installation ......
DIN Front/Rear-monnt
DIN Front-mount
DIN Rear-mount .....
Fastening the front panel .

A WARNING

- To avoid the risk of accident and the potential
violation of applicable laws. the front DVD or TV
(sold separately) feature s ould never be used
while the vehicle is being driven. Also, Rear
Displays should not be in a location where it is a
visible distraction to the driver.

' In some countries or states the viewing of
images on a display ins e a vehicle even by
persons other than the driver may be illegal.
Where such regulations apply. they must be
obeyed and this units DVD features should
not be used.

meeting the Units

A CAUTION

- PIONEER does not recommend that
you install or service your display your-
self. Installing or servicing the product
may expose you to risk of electric shock
or other hazards. Refer all installation
and servicing of your display to autho-
rized Pioneer service personnel.

- Secure all wiring with cable clamps or
electrical tape. Do not allow any bare
wiring to remain exposed.

- Do not drill a hole into the engine com-
partment to connect the yellow lead of
the unit to the vehicle battery. Engine
vibration may eventually cause the insu-
lation to fail at the point where the wire
passes from the passenger compartment
into the engine compartment. Take
extra care in securing the wire at this
point.

- It is extremely dangerous to allow the
display lead to become wound around
the steering column or gearshift. Be sure
to install the display in such a way that
it will not obstruct driving.

- Make sure that wires will not interfere
with moving parts of the vehicle, such as
the gearshift, parking brake or seat slid-
ing mechanism.

- Do not shorten any leads. If you do, the
protection circuit may fail to work
properly.

A WARNING
LIGHT GREEN LEAD AT POWER CONNEC-
TOR IS DESIGNED TO DETECT PARKED
STATUS AND MUST BE CONNECTED TO
THE POWER SUPPLY SIDE OF THE PARK-
ING BRAKE SWITCH. IMPROPER CONNEC-
TION OR USE OF THIS LEAD MAY VIO-
LATE APPLICABLE LAW AND MAY
RESULT IN SERIOUS INJURY OR DAMAGE.
