r-t_..r i, ._.___

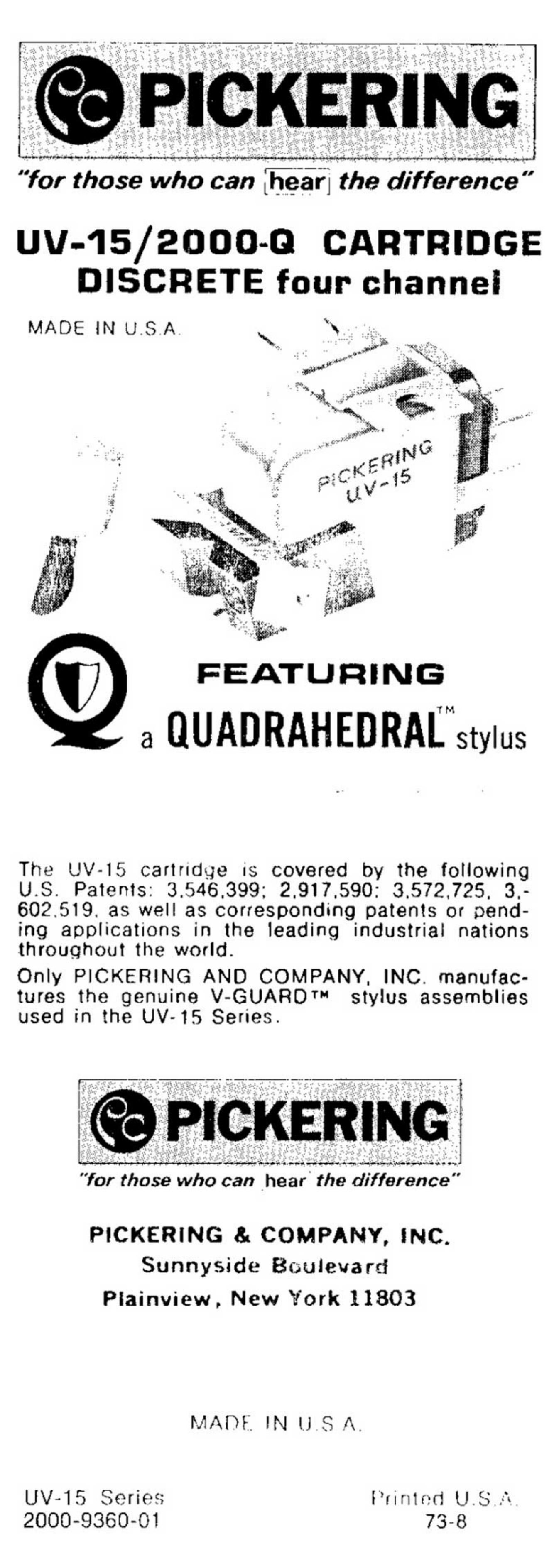

PICKERING
MM-
for those who can Fear} the difference:
UV-15/2000-G CARTRIDGE
DISCRETE four channei
MADE IN U SA \, \
FEATURING
a QUADRAHEDRALMstylus
The UV-IS cartridge IS covered by the following
US. Patents: 3.546.399; 2.917.590: 3.572.725. 3.-
602.519. as well as corresponding patents or pend-
ing applications in the leading industrial nations
throughout the world.
Only PICKERING AND COMPANY, INC. manufac-
tures the genuine V-GUAROT" stylus assemblies
used in the UV-tS Series.
f-_ --_ - I 7',
'® PICKERING
1" ' poo;- tW On mun-«M. vat Mae 9-»
W'- 7'
"for those who can hear the difference"
PICKERING & COMPANY, INC.
Sunnyside Boulevard
Plainview, New York 11803
MADE IN U S A.
UV15 Series; Prlrllrrd US 5.
2000-9360-01 73-8
UV-15/2000'Q CARTRIDGE
DISCRETE (four-channel)
The ability to faithfully reproduce not only the
20 Hz to 20 kHz AM signals but also the 30
kHz modulated Signals in the record's grooves
is a basic requirement of a discrete cartridge.
The Pickering UV-15/2000 Q was designed and
engineered to accomplish this feat. which it
does superbly. It compares favorably to any
discrete cartridge at any price. And it features
a new high performance stylus assembly, the
Quadrahedral-u which encompasses design
concepts that not only perform brilliantly. but
also reduce record wear.
QUADRAHEDRAL STYLUS
The Quadrahedral'I Stylus is a fourth genera-
tion stylus design. It is shaped to provide a
scanning radius that matches the require-
ments of the higher frequency signals. to-
gether with an enlarged area of record groove
contact. thus providing superior high fre-
quency performance with minimum stylus and
record wear.
TYPE C SNAP-lN-MOUNT
For DUAL CH12 and CH19 Mounting Clips
First mount your cartridge in your SNAP-IN-
MOUNT as shown in these instructions en-
titled Cartridge Mounting Into SNAP-IN:
MOUNT." Press the projections of the type C
SNAP-lN-MOUNT into the slots of theDual
mounting clips until they snap in securely.
Place the Dual terminal clips on the terminal
pins with matching colors. (see stereo con-
nection illustrations).
