TSU3500/17
Technical specifications Product highlights

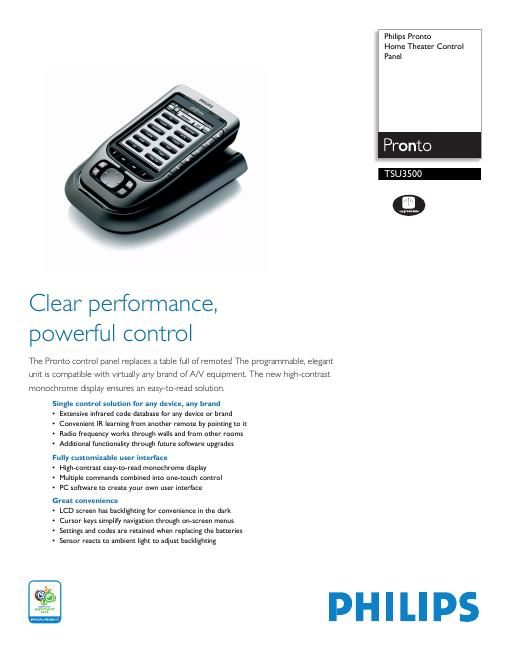

Home Theater Control Panel
Date of issue 2006-04-24
Version: 1.0
12 NC: 9082 100 80123
UPC: 0 37849 96657 0Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Picture/Display- Backlight
-Diagonal screen size (inch): 3.8 inch
-Display colors: 16
-Resolution: 320 x 240 pixels
-Touch panel
-Backlight color: White
-Display screen type: LCD TFT
Infrared Capabilities-Operating distance: 33 ft (10 m)
- Learning IR codes
-Learning frequency range: Up to 78 kHz and
455 kHz
-Transmitting LEDs: 4
- Universal IR code database
-Number of brands in database: Over 1100
RF Capabilities-Adresses (ID's): 16
-Channels: 4
-Communication: 1-way
-Frequency (MHz): 418
Customisation-Editor application on PC: ProntoEdit NG
- On screen customisation
- Full screen configurability
- Transparency
-Alpha-blending: No
-Macros: Up to 250 steps
Connectivity-USB: USB 1.1
Convenience- Automatic power off
- Clock with calendar- Cursor key
- Gentle fade out of light
- Hard buttons
-Multi language: GB, D, F, E, NL
-Pick up sensor: No
-Programmable timers: 20
Dimensions-Master carton quantity: 2
-Master carton weight: 3.8 kg
-Product dimension (WxDxH) inch: 3.6" x
1.1" x 6.0"
-Product weight in lbs: 0.573
-Temperature Range (Operation): + 41
degree F to +113 degree F
System Specifications-CPU: Mitsubishi 16 bit
-Flash memory size: 4 MB
System Requirements-CD-ROM drive
-Hard disk space: 75 MB
-PC OS: Windows 98 SE, 2000, ME, XP
-RAM memory: 64 MB
-USB: Free USB port
Accessories-Batteries: Ni-MH battery pack
- Docking Station
-Printed User Guide
-USB cable
-User Guide on CD-ROM
- Warranty Card
Power-Charging time: Max 3 hr
-Mains power: 120V
-
Universal IR code database
A universal IR code database refers to a library of infrared
codes built-in to a particular remote. This feature allows
a remote to control your equipment without needing to
learn individual signals. Select the correct infrared code
sets in the database for the devices you want to control,
to enable control of virtually every audio/video system
element on the market today -“ regardless of model or
brand.
Learning functionality
Learning functionality refers to the process through which
a remote control captures and stores infrared signals
from other remotes for later use. When device codes are
not included in the on-board database, they can always be
learned from the original remote, simply by pointing to it.
One-touch convenience
One-touch convenience allows you to perform multiple
commands with one press of a button via a macro. A
macro combines a string of pre-programmed commands
under one single button. Therefore, it simply takes one
button press to execute a series of functions.
Radio frequency
A radio technology that allows you to control components
not in direct line-of-sight, such as through walls or other
obstacles. There are two types of RF used in remote
controls: RF to component, and RF to infrared.
Light sensor
Light sensor is a feature that automatically activates the
backlight when the ambient lighting reaches a certain
level.
PC software included
Backlight on screen
Backlighting is a feature that illuminates the LCD screen
or keypad for use in the dark. The two most common
types of backlighting include LED and electroluminescent
(EL). Remotes backlit with LEDs are typically bright but
uneven with a yellow or green color, while EL panels are
smooth with blue, white or green shades.
Cursor keys
Memory backup
All settings and learned codes are stored in non-volatile
m e m o r y w h i c h d o e s n o t n e e d p o w e r t o f u n c t i o n a n d s t o r e
codes and settings.
Future proof
To keep your device up to date and enhance its
functionality you can download new softwares that
become available. Connect the device to the Internet,
either directly or through a PC, and launch the upgrade
utility.
High-contrast display
High-contrast monochrome display includes special
technology to increase light output and contrast ratio.
Instead of traditional electrofoil backlighting, LEDs are
used to offer much higher light output. Contrast is
enhanced because of white backlight instead of the
traditional green backlight color. This results in much
improved readibility of the screen.
