SBCRU960/00
Technical specifications Product highlights

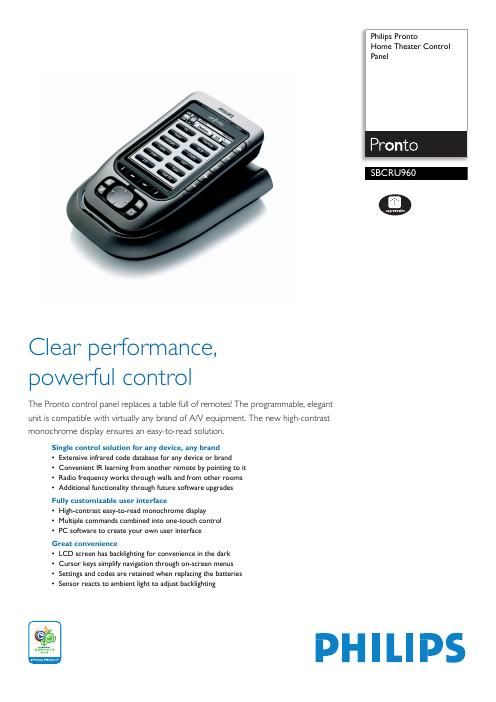

Home Theater Control Panel
Date of issue 2006-04-11
Version: 1.0
12 NC: 9082 100 80129
EAN: 87 10895 90920 4Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Picture/Display-Diagonal screen size (inch): 3.8 inch
-Display colors: 16
- Backlight
-Backlight color: White
-Resolution: 320 x 240 pixels
-Touch panel
-Display screen type: LCD TFT
Infrared Capabilities-Operating distance: 33 ft (10 m)
- Learning IR codes
-Learning frequency range: U p t o 7 8 k H z a n d 4 5 5
kHz
-Transmitting LEDs: 4
- Universal IR code database
-Number of brands in database: Over 1100
RF Capabilities-Adresses (ID's): 16
-Channels: 4
-Communication: 1-way
-Frequency (MHz): 433
Customisation-Editor application on PC: ProntoEdit NG
- On screen customisation
- Full screen configurability
- Transparency
-Macros: Up to 250 steps
-Alpha-blending: No
Connectivity-USB: USB 1.1
Convenience- Automatic power off
- Clock with calendar- Cursor key
- Hard buttons
-Programmable timers: 20
- Gentle fade out of light
-Multi language: GB, D, F, E, NL
-Pick up sensor: No
Dimensions-Master carton weight: 3.8 kg
-Master carton quantity: 2
-Product dimensions (W x H x D):
92 x 153 x 27 mm
-Product weight: 0.260 kg
-Temperature Range (Operation): +5°C/+45°C
System Specifications-CPU: Mitsubishi 16 bit
-Flash memory size: 4 MB
System Requirements-CD-ROM drive
-Hard disk space: 75 MB
-PC OS: Windows 98 SE, 2000, ME, XP
-RAM memory: 64 MB
-USB: Free USB port
Accessories-Batteries: Ni-MH battery pack
-Printed User Guide
-USB cable
-User Guide on CD-ROM
- Warranty Card
-Docking Station
Power-Charging time: Max 3 hr
-Mains power: 230V
-
Universal IR code database
A universal IR code database refers to a library of
infrared codes built-in to a particular remote. This
feature allows a remote to control your equipment
without needing to learn individual signals. Select the
correct infrared code sets in the database for the
devices you want to control, to enable control of virtually
every audio/video system element on the market today
-“ regardless of model or brand.
Learning functionality
Learning functionality refers to the process through
which a remote control captures and stores infrared
signals from other remotes for later use. When device
codes are not included in the on-board database, they
can always be learned from the original remote, simply
by pointing to it.
One-touch convenience
One-touch convenience allows you to perform multiple
commands with one press of a button via a macro. A
macro combines a string of pre-programmed
commands under one single button. Therefore, it simply
takes one button press to execute a series of functions.
Radio frequency
A radio technology that allows you to control
components not in direct line-of-sight, such as through
w a l l s o r o t h e r o b s t a c l e s . T h e r e a r e t w o t y p e s o f R F u s e d
i n r e m o t e c o n t r o l s : R F t o c o m p o n e n t , a n d R F t o i n f r a r e d .
Light sensor
Light sensor is a feature that automatically activates the
backlight when the ambient lighting reaches a certain
level.
PC software included
Backlight on screen
Backlighting is a feature that illuminates the LCD screen
or keypad for use in the dark. The two most common
types of backlighting include LED and
electroluminescent (EL). Remotes backlit with LEDs are
typically bright but uneven with a yellow or green color,
while EL panels are smooth with blue, white or green
shades.
Cursor keys
Memory backup
All settings and learned codes are stored in non-volatile
memory which does not need power to function and
store codes and settings.
Future proof
To keep your device up to date and enhance its
functionality you can download new softwares that
become available. Connect the device to the Internet,
either directly or through a PC, and launch the upgrade
utility.
High-contrast display
High-contrast monochrome display includes special
technology to increase light output and contrast ratio.
Instead of traditional electrofoil backlighting, LEDs are
used to offer much higher light output. Contrast is
enhanced because of white backlight instead of the
traditional green backlight color. This results in much
improved readibility of the screen.
