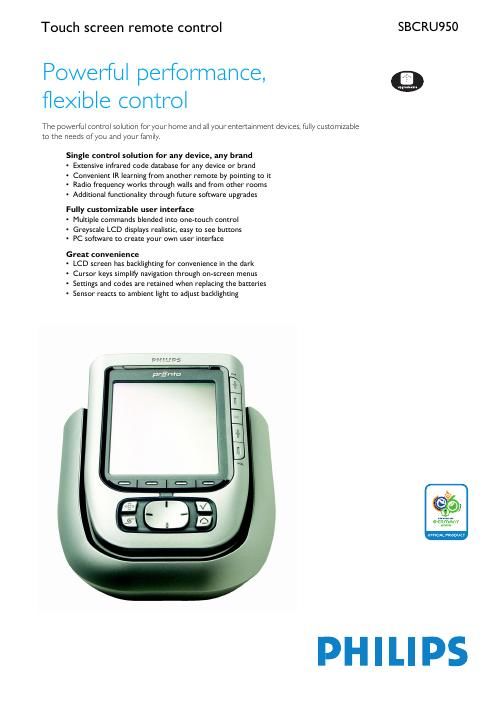

Touch screen remote control SBCRU950/00
Product highlights
Universal IR code database
A universal IR code database refers to a library of
infrared codes built-in to a particular remote. This
feature allows a remote to control your equipment
without needing to learn individual signals. Select the
correct infrared code sets in the database for the
devices you want to control, to enable control of virtually
every audio/video system element on the market today
-“ regardless of model or brand.
Greyscale LCD display
Create own layout in shades of gray. Easy selection of
buttons and commands using the touch screen.
Learning functionality
Learning functionality refers to the process through
which a remote control captures and stores infrared
signals from other remotes for later use. When device
codes are not included in the on-board database, they
can always be learned from the original remote, simply
by pointing to it.
One-touch convenience
One-touch convenience allows you to perform multiple
commands with one press of a button via a macro. A
macro combines a string of pre-programmed
commands under one single button. Therefore, it simply
takes one button press to execute a series of functions.
Light sensor
Light sensor is a feature that automatically activates the
backlight when the ambient lighting reaches a certain
level.
Radio frequency
A radio technology that allows you to control
components not in direct line-of-sight, such as through
w a l l s o r o t h e r o b s t a c l e s . T h e r e a r e t w o t y p e s o f R F u s e d
i n r e m o t e c o n t r o l s : R F t o c o m p o n e n t , a n d R F t o i n f r a r e d .
PC software included
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com Date of issue 2005-05-11
Version: 5.0
12 NC: 9082 100 01591
EAN: 87 10895 75450 7
Technical specifications
Picture/Display
-Diagonal screen size (inch): 3.8 in
-Display colors: 16
- Backlight
-Backlight color: Blue
-Resolution: 320 x 240 pixels
-Touch panel
Infrared Capabilities-Operating distance: 33 ft (10 m)
- Learning IR codes
-Learning frequency range: U p t o 7 8 k H z a n d 4 5 5
kHz
-Transmitting LEDs: 4
- Universal IR code database
-Number of brands in database: Over 1100
RF Capabilities-Adresses (ID's): 16
-Channels: 4
-Communication: 1-way
-Frequency (MHz): 433
Customisation-Editor application on PC: ProntoEdit NG
- On screen customisation
- Full screen configurability
- Transparency
-Macros: Up to 250 steps
-Alpha-blending: No
Connectivity-USB: USB 1.1
Convenience- Automatic power off- Clock with calendar
- Cursor key
- Hard buttons
-Programmable timers: 20
- Gentle fade out of light
-Multi language: GB, D, F, E, NL
-Cradle/Docking station: Optional
-Pick up sensor: No
Dimensions-Master carton weight: 3.8 kg
-Master carton quantity: 2
-Product dimensions (W x H x D):
92 x 153 x 27 mm
-Product weight: 0.260 kg
-Temperature Range (Operation): +5°C/+45°C
System Specifications-CPU: Mitsubishi 16 bit
-Flash memory size: 4 MB
System Requirements-CD-ROM drive
-Hard disk space: 75 MB
-PC OS: Windows 98 SE, 2000, ME, XP
-RAM memory: 64 MB
-USB: Free USB port
Accessories-Batteries: 4 x AAA
-CD-ROM: with PC-editor software
-Printed User Guide
-USB cable
-User Guide on CD-ROM
- Warranty Card
-Docking Station: optional
